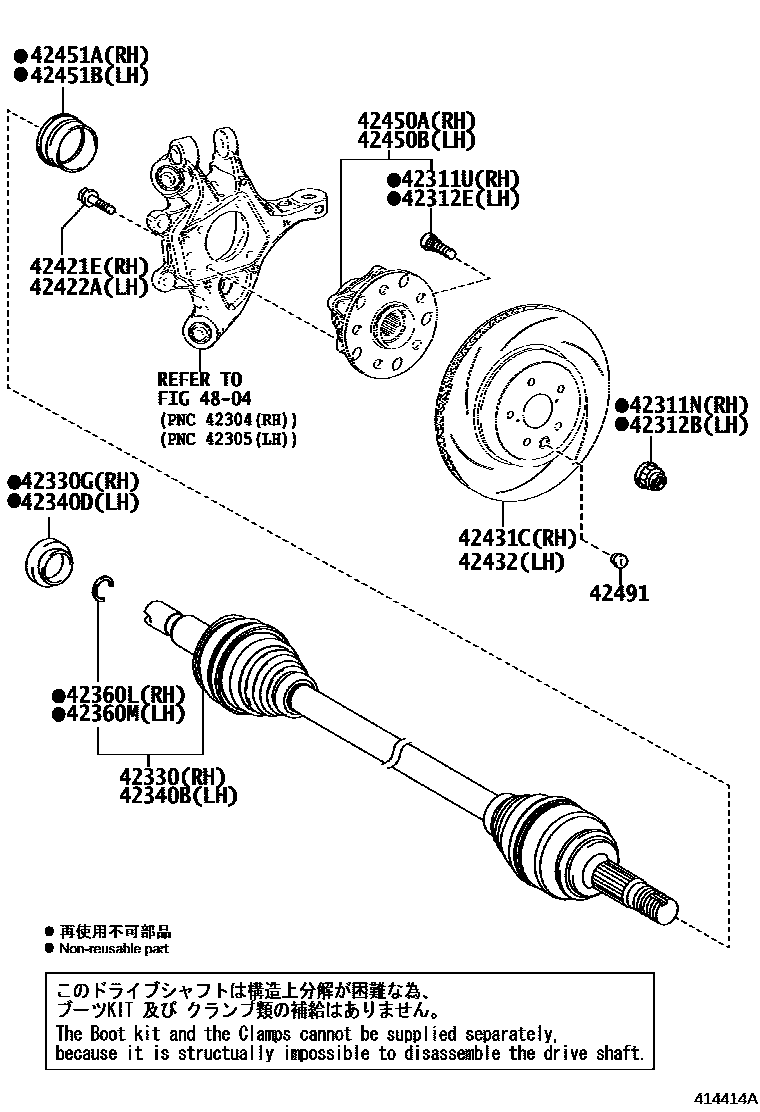

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iURL10¥260201510-201804

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iURL10¥240201510-201804

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iURL10¥260201510-201804

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iURL10¥240201510-201804

42330SHAFT ASSY, REAR DRIVE, RH

main42330-24050iURL10¥42,800201510-201804

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-50057iURL10¥540201510-201804

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-24080iURL10¥41,100201510-201804

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-50056iURL10¥540201510-201804

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iURL10¥110201510-201804

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iURL10¥110201510-201804

REAR DIFFERENTIAL-FD21CT 2.937 W/FIN(LSD)

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12009iURL10¥190201510-201804

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12009iURL10¥190201510-201804

42431CDISC, REAR RH

main42431-0W050iURL10¥77,200201510-201804

42432DISC, REAR LH

main42432-0W010iURL10¥77,200201510-201804

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30021iURL10¥13,100201510-201804

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30021iURL10¥13,100201510-201804

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30040iURL10¥790201510-201804

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30040iURL10¥790201510-201804

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iURL10¥60201510-201804

4804

20 parts on this diagram · 1 diagram in section
