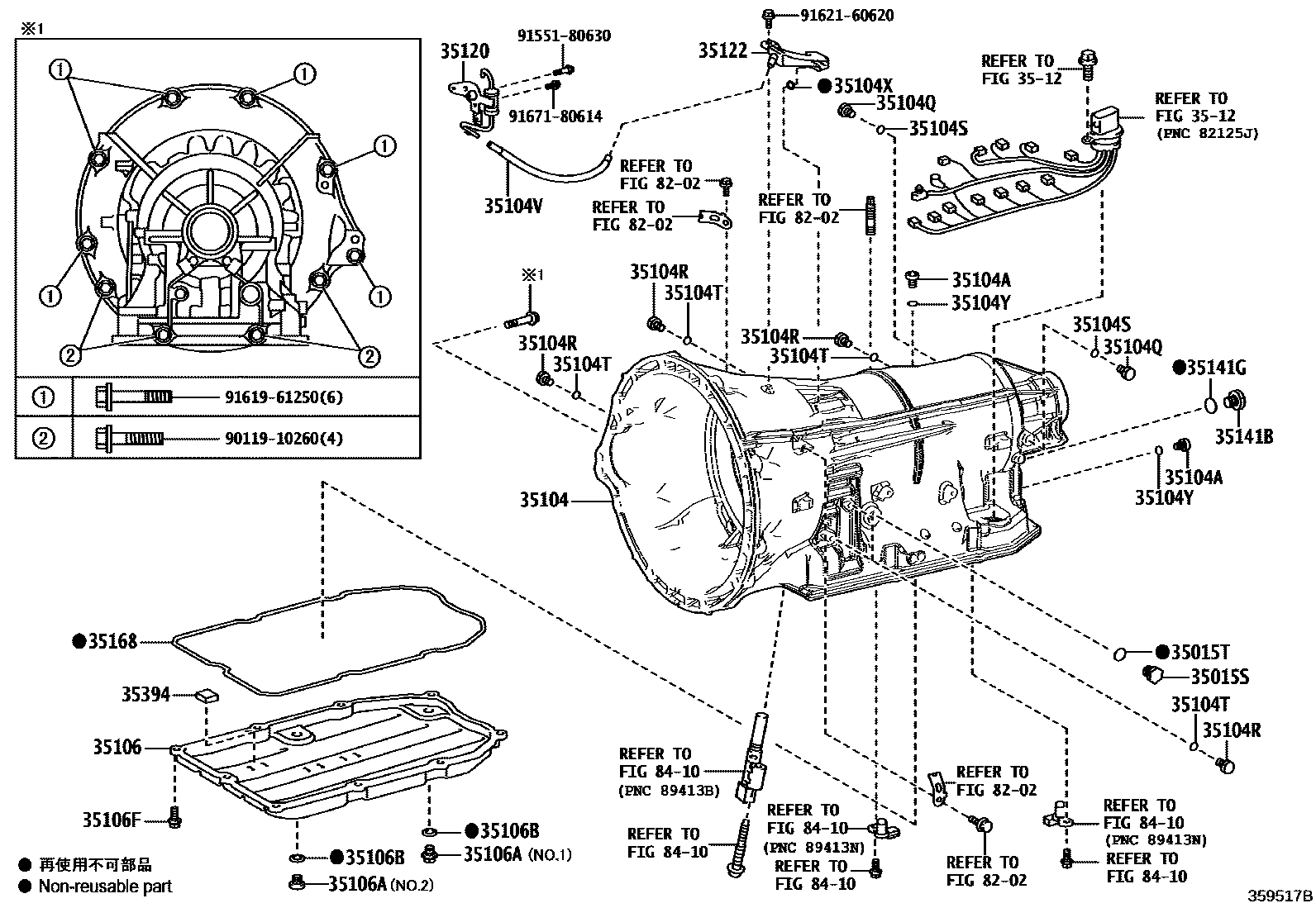

TRANSMISSION CASE & OIL PAN (ATM)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iURL10201510-201804

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iURL10201510-201804

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-50030iURL10201510-201804

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-14011iURL10201510-201804

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-12036iURL10201510-201804

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001iURL10201510-201804

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-09026iURL10201510-201804

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196iURL10201510-201804

35104VHOSE (FOR BREATHER PLUG)

main90447-11060iURL10201510-201804

35104XRING, O (FOR BREATHER PLUG)

main90301-04015iURL10201510-201804

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iURL10201510-201804

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30310iURL10201510-201804

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iURL10201510-201804

NO.1:REFER ILLUST.

main90341-10021iURL10201510-201804

NO.2:REFER ILLUST.

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iURL10201510-201804

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06982iURL10201510-201804

3512

35120BREATHER ASSY, TRANSMISSION

main35120-53010iURL10201510-201710

sub35120-53020

main35120-53020iURL10201711-201804

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-53020iURL10201510-201804

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-24017iURL10201510-201804

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-20013iURL10201510-201804

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-50010iURL10201510-201804

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010iURL10201510-201804

8202

8410

9011910260

main90119-10260

9155180630

main91551-80630

9161961250

main91619-61250

9162160620

main91621-60620

9167180614

main91671-80614

29 parts on this diagram · 1 diagram in section
