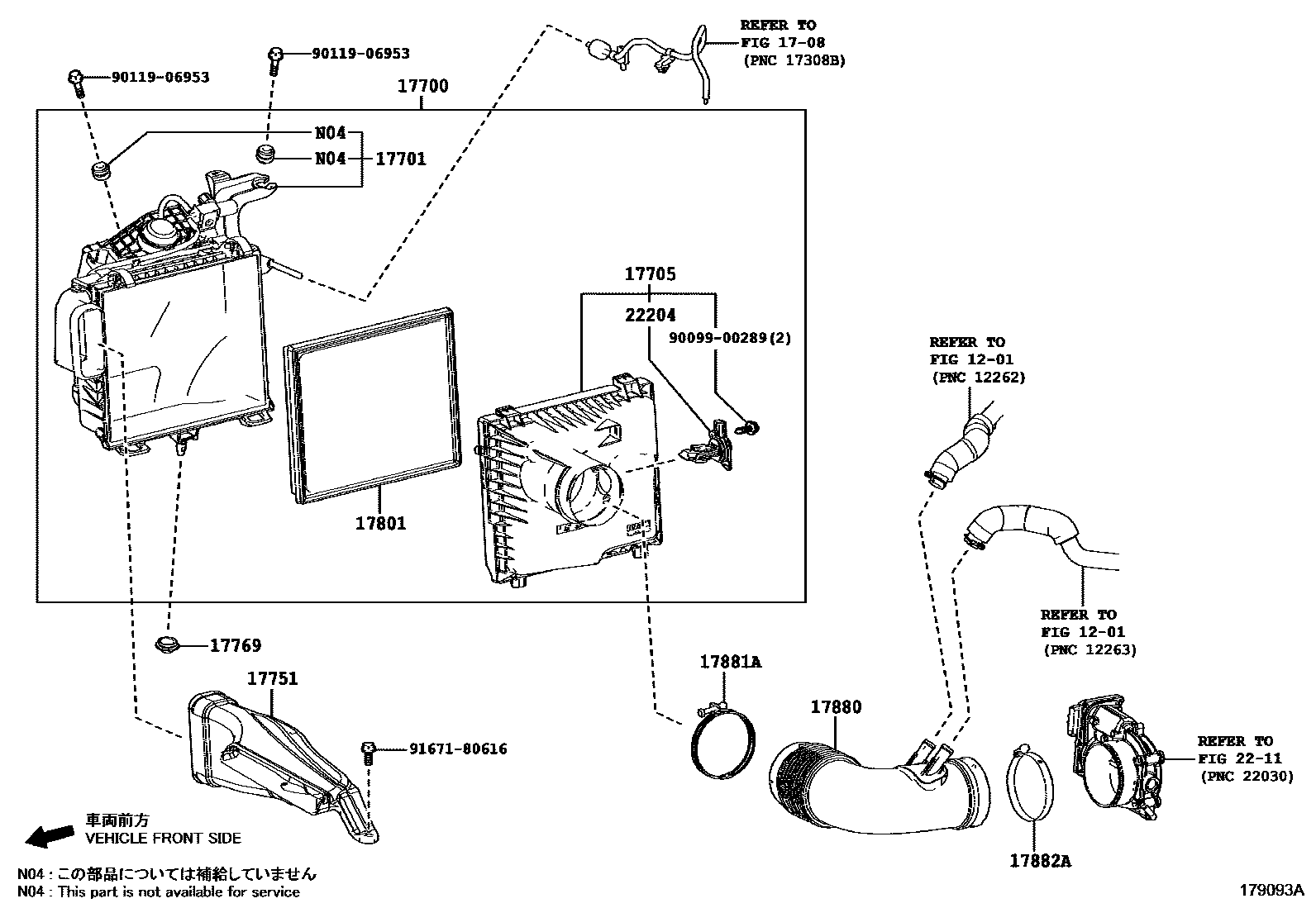

AIR CLEANER

1201

1708

17700CLEANER ASSY, AIR

main17700-38241i2URGSE..URL10201510-201804

17701CASE SUB-ASSY, AIR CLEANER

main17701-38171i2URGSE..URL10201510-201804

17705CAP SUB-ASSY, AIR CLEANER

main17705-38170i2URGSE..URL10201510-201804

17751INLET, AIR CLEANER, NO.1

main17751-38120i2URGSE..URL10201510-201804

17769SUPPORT, AIR CLEANER

main17769-31030i2URGSE..URL10201510-201804

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38021i2URGSE..URL10201510-201804

17880HOSE ASSY, AIR CLEANER

main17880-38081i2URGSE..URL10201510-201804

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17891-38050i2URGSE..URL10201510-201804

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-38070i2URGSE..URL10201510-201804

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i2URGSE..URL10201510-201804

9009900289

main90099-00289

9011906953

main90119-06953

9167180616

main91671-80616

16 parts on this diagram · 1 diagram in section
