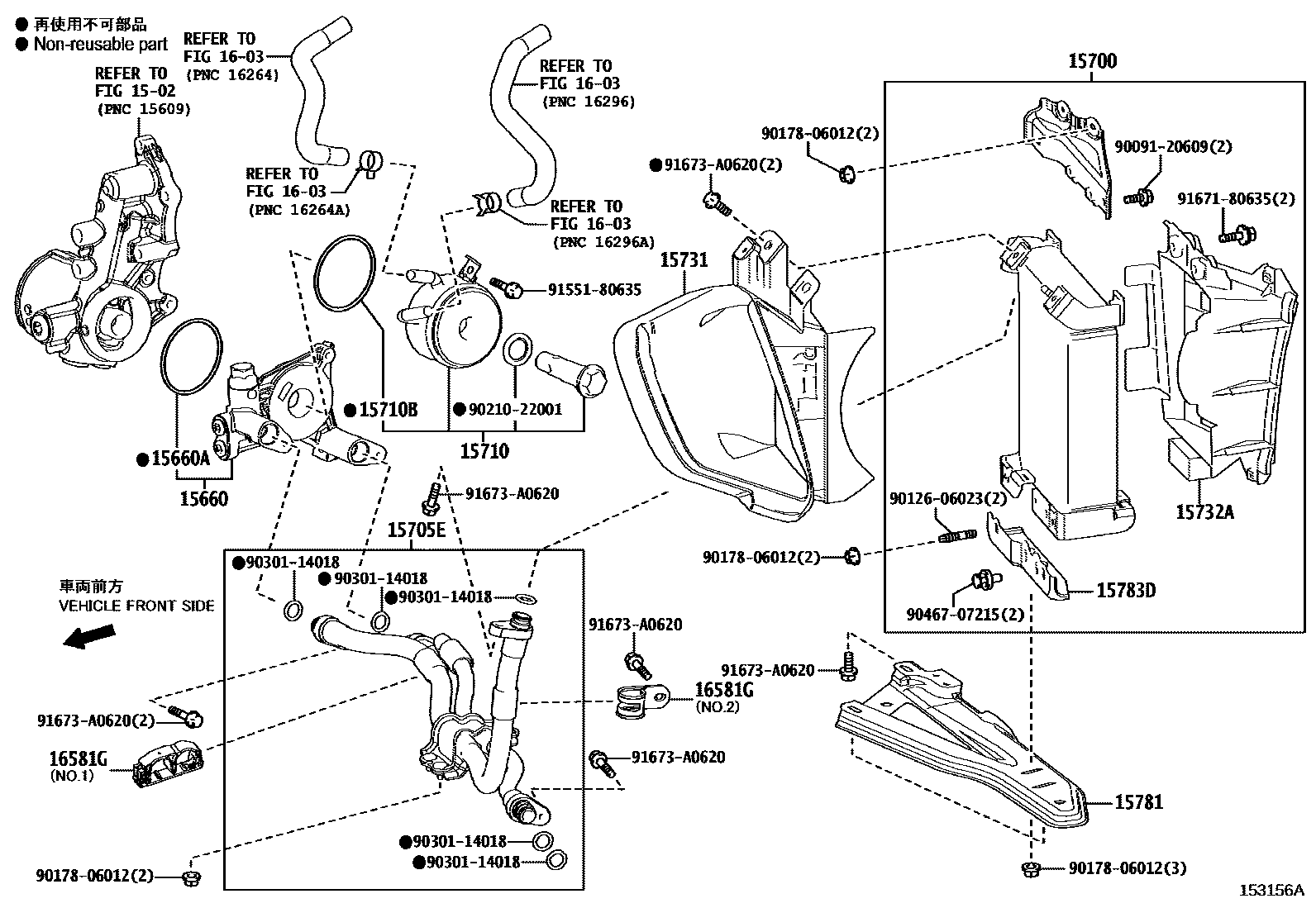

ENGINE OIL COOLER

1502

15660HOUSING ASSY, OIL THERMOSTAT

main15660-38010i2URGSE..URL10201510-201804

15660ARING, O(FOR OIL THERMOSTAT HOUSING)

main90301-67004i2URGSE..URL10201510-201804

15700COOLER ASSY, OIL W/BRACKET

main15700-38060i2URGSE..URL10201510-201804

15705EHOSE SUB-ASSY, OIL COOLER

main15705-38020i2URGSE..URL10201510-201804

15710COOLER ASSY, OIL

main15700-38040i2URGSE..URL10201510-201804

15710BRING, O(FOR OIL COOLER)

main90301-67004i2URGSE..URL10201510-201804

15731DUCT, ENGINE OIL COOLER AIR INLET

main15731-38010i2URGSE..URL10201510-201804

15732ADUCT, ENGINE OIL COOLER AIR OUTLET

main15732-38020i2URGSE..URL10201510-201804

15781BRACKET, OIL COOLER, NO.1

main15781-38040i2URGSE..URL10201510-201804

15783DBRACKET, ENGINE OIL COOLER, LWR

main15783-38010i2URGSE..URL10201510-201804

1603

16581GCLAMP, HOSE(FOR OIL COOLER HOSE)

main16581-38010i2URGSE..URL10201510-201804

NO.1:REFER ILLUST.

main16581-38020i2URGSE..URL10201510-201804

NO.2:REFER ILLUST.

9009120609

main90091-20609

9012606023

main90126-06023

9017806012

main90178-06012

9021022001

main90210-22001

9030114018

main90301-14018

9046707215

main90467-07215

9155180635

main91551-80635

9167180635

main91671-80635

91673A0620

main91673-A0620

22 parts on this diagram · 1 diagram in section
