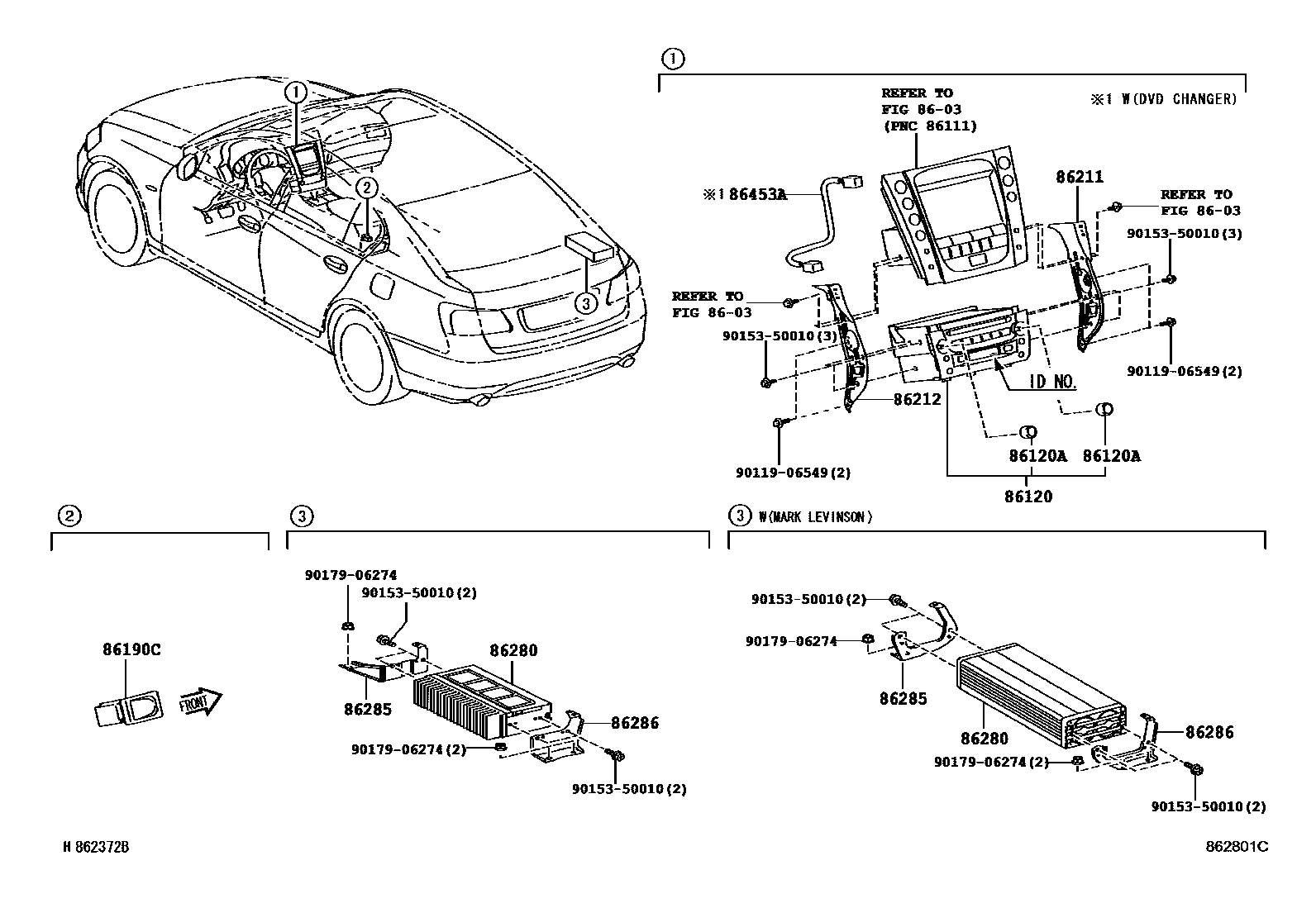

RADIO RECEIVER & AMPLIFIER & CONDENSER
8603
86120RECEIVER ASSY, RADIO
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#
PIONEER,BLACK,TRIM1#,2#
PIONEER,ORCHID BROWN,TRIM0#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#
PIONEER,BLACK,TRIM1#,2#
PIONEER,ORCHID BROWN,TRIM0#
PIONEER,AUSTRALIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2#
PIONEER,NEW ZEALAND SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2#
PIONEER,AUSTRALIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#
PIONEER,NEW ZEALAND SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#
PIONEER,NEW ZEALAND SPEC,BLACK,TRIM1#,2#
PIONEER,AUSTRALIA SPEC,BLACK,TRIM1#,2#
PIONEER,NEW ZEALAND SPEC,ORCHID BROWN,TRIM0#
PIONEER,AUSTRALIA SPEC,ORCHID BROWN,TRIM0#
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2#
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#
PIONEER,HONG KONG SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,SINGAPORE SPEC,BLACK,TRIM04,1#,2#
PIONEER,BLACK,TRIM04,1#,2#
PIONEER,HONG KONG SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,ORCHID BROWN,TRIM02
PIONEER,SINGAPORE SPEC,ORCHID BROWN,TRIM02
PIONEER,BLACK,TRIM04,1#,2#
PIONEER,TAIWAN SPEC,BLACK,TRIM04,1#,2#
PIONEER,TAIWAN SPEC,ORCHID BROWN,TRIM02
PIONEER,ORCHID BROWN,TRIM02
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,01,02
PIONEER,BLACK,TRIM04,1#,2#
PIONEER,TAIWAN SPEC,BLACK,TRIM04,1#,2#
PIONEER,TAIWAN SPEC,ORCHID BROWN,TRIM00,01,02
PIONEER,ORCHID BROWN,TRIM00,01,02
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,01,02
PIONEER,SINGAPORE SPEC,BLACK,TRIM04,1#,2#
PIONEER,BLACK,TRIM04,1#,2#
PIONEER,HONG KONG SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,HONG KONG SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,01,02
PIONEER,ORCHID BROWN,TRIM00,01,02
PIONEER,SINGAPORE SPEC,ORCHID BROWN,TRIM00,01,02
PIONEER,NEW ZEALAND SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,AUSTRALIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,NEW ZEALAND SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,01,02
PIONEER,AUSTRALIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,01,02
PIONEER,NEW ZEALAND SPEC,BLACK,TRIM04,1#,2#
PIONEER,HONG KONG SPEC,BLACK,TRIM04,1#,2#
PIONEER,AUSTRALIA SPEC,BLACK,TRIM04,1#,2#
PIONEER,AUSTRALIA SPEC,ORCHID BROWN,TRIM00,01,02
PIONEER,HONG KONG SPEC,ORCHID BROWN,TRIM00,01,02
PIONEER,NEW ZEALAND SPEC,ORCHID BROWN,TRIM00,01,02
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,01,02
PIONEER,TAIWAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2#
PIONEER,TAIWAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#
PIONEER,CHINA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,CHINA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,02
PIONEER,SINGAPORE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,SINGAPORE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM00,02
PIONEER,SINGAPORE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
sub86120-30L01
PIONEER,SINGAPORE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
sub86120-30L01
PIONEER,TAIWAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & DVD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
sub86120-30L11
PIONEER,TAIWAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
sub86120-30L11
PIONEER,TAIWAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & DVD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
sub86120-30L12
PIONEER,TAIWAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
sub86120-30L12
PIONEER,AUSTRALIA SPEC,BLACK,TRIM04,1#,2#
PIONEER,HONG KONG SPEC,BLACK,TRIM04,1#,2#
PIONEER,NEW ZEALAND SPEC,BLACK,TRIM04,1#,2#
PIONEER,HONG KONG SPEC,ORCHID BROWN,TRIM02
PIONEER,AUSTRALIA SPEC,ORCHID BROWN,TRIM02
PIONEER,NEW ZEALAND SPEC,ORCHID BROWN,TRIM02
PIONEER,NEW ZEALAND SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,AUSTRALIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,NEW ZEALAND SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,AUSTRALIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,CHINA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
sub86120-30L41
PIONEER,CHINA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
sub86120-30L41
PIONEER,KAZAKHSTAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
PIONEER,UKRAINE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
PIONEER,UKRAINE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
PIONEER,KAZAKHSTAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,UKRAINE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,KAZAKHSTAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM04,1#,2#
PIONEER,UKRAINE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,KAZAKHSTAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM02
PIONEER,ID=P10064,SINGAPORE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV &DVD NAVIGATION SYSTEM),BLACK,TRIM04,1#,2#
sub86120-30N51
PIONEER,ID=P10064,SINGAPORE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR&WITH(*EMV &DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM02
sub86120-30N51
86120AKNOB, RADIO RECEIVER SWITCH
BLACK
BROWN
BLACK
SINGAPORE SPEC,BLACK
TAIWAN SPEC,BLACK
HONG KONG SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK
BROWN
86190CADAPTER ASSY, STEREO JACK, NO.1
86285BRACKET, AMPLIFIER, NO.1
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
86286BRACKET, AMPLIFIER, NO.2
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
86453AWIRE, MULTI-MEDIA MODULE
RUSSIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
AUSTRALIA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
NEW ZEALAND SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
TAIWAN SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
SINGAPORE SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
CHINA SPEC&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR
9011906549
main90119-06549
9015350010
main90153-50010
9017906274
main90179-06274
13 parts on this diagram · 3 diagrams in section
