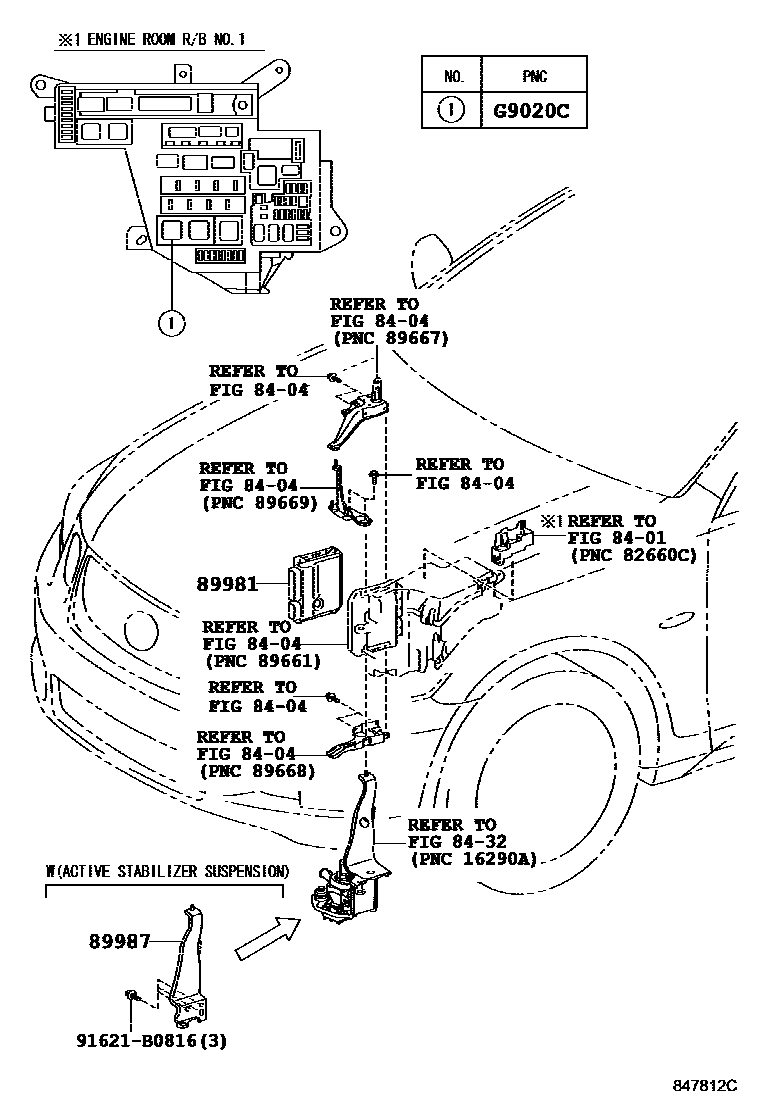

HEV CONTROL COMPUTER

8401

8404

8432

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-30030iGWS191200602-200709

main89981-30080iGWS191200709-200712

main89981-30081iGWS191200801-200809

main89981-30140iGWS191200809-200909

main89981-30210iGWS191200909-201112

main89981-30040iGWS191..RHD200602-200709

NEW ZEALAND SPEC

main89981-30090iGWS191..RHD200709-200712

NEW ZEALAND SPEC

main89981-30091iGWS191..RHD200801-200809

NEW ZEALAND SPEC

main89981-30150iGWS191..RHD200809-200909

ISRAEL SPEC

main89981-30170iGWS191..LHD200809-200911

CHINA SPEC

main89981-30220iGWS191..RHD200909-201112

ISRAEL SPEC

main89981-30240iGWS191..LHD200911-201112

CHINA SPEC

89987BRACKET, COMPUTER, NO.1

main89987-30020iGWS191200602-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

G9020CRELAY, OIL PUMP

main90987-02025iGWS191200602-200709

91621B0816

main91621-B0816

7 parts on this diagram · 1 diagram in section
