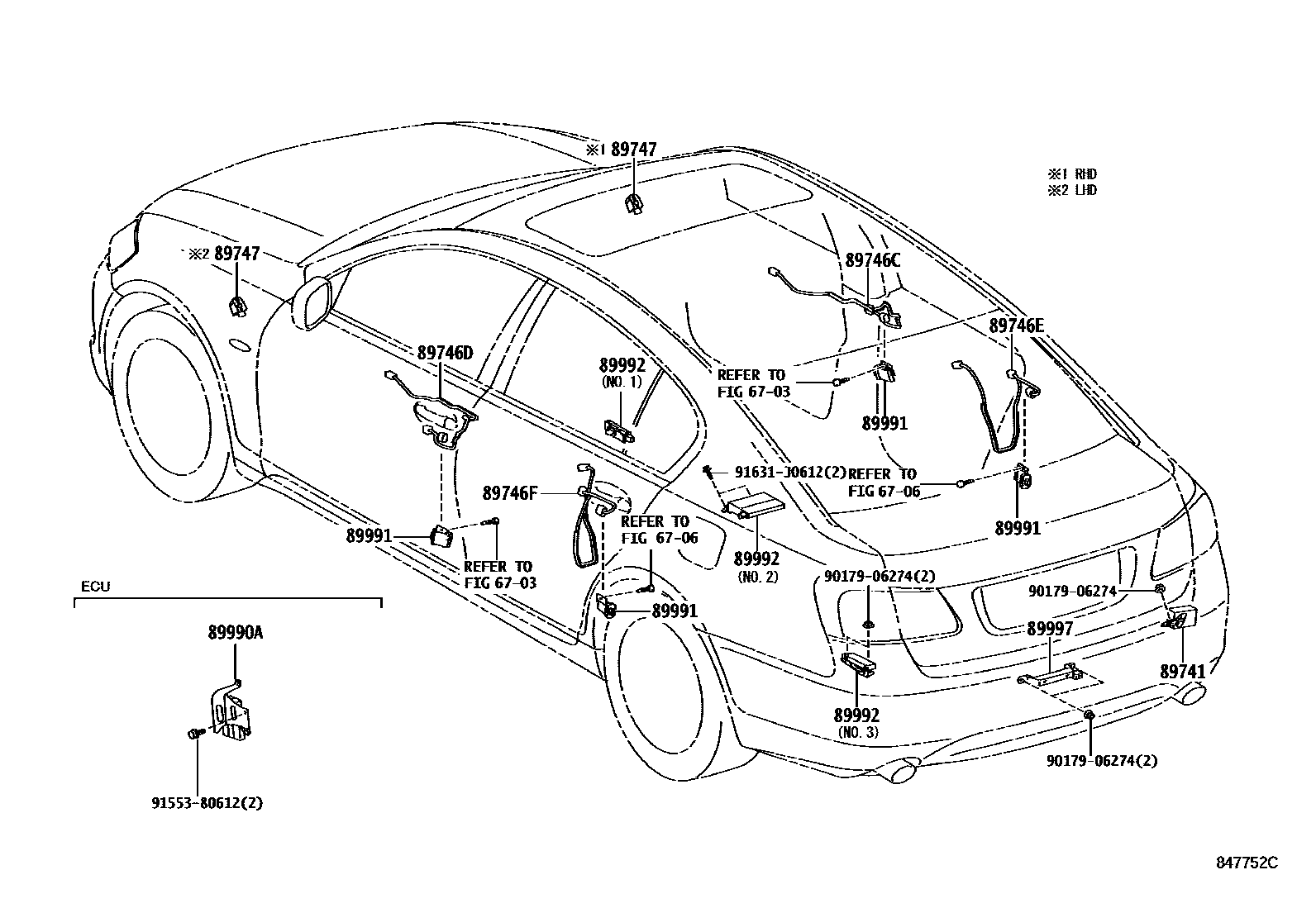

WIRELESS DOOR LOCK

6703

6706

89741RECEIVER, DOOR CONTROL

main89740-30100iGWS191200602-200607

main89740-30210iGWS191200607-200709

main89740-30090iGWS191..RHD200607-200610

NEW ZEALAND SPEC

main89740-30091iGWS191..RHD200709-201112

NEW ZEALAND SPEC

main89740-30101iGWS191..RHD200809-201001

SINGAPORE SPEC&WITH(CARD KEY)

main89740-30102iGWS191..RHD201002-201112

SINGAPORE SPEC&WITH(CARD KEY)

sub89740-30103

main89740-30110iGWS191..RHD200809-201112

CHINA SPEC

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-30050iGWS191200602-200709

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-30060iGWS191200602-200709

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main89746-30070iGWS191200602-200709

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main89746-30080iGWS191200602-200709

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iGWS191200602-200609

main89747-52010iGWS191200610-200709

89990ACOMPUTER ASSY, SMART KEY

main89990-30030iGWS191200809-200909

sub89990-30031

main89990-30110iGWS191200602-200607

sub89990-30210

main89990-30111iGWS191200607-200611

main89990-30112iGWS191200612-200709

sub89990-30220

main89990-30113iGWS191200709-200801

main89990-30114iGWS191200802-200809

sub89990-30115

main89990-30160iGWS191200909-201006

sub89990-30161

main89990-30260iGWS191201007-201104

main89990-30261iGWS191201105-201111

sub89990-30262

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040×2iGWS191200709-201112

FRONT RH,REAR LH

main89991-30050×2iGWS191200602-200709

FRONT LH,REAR RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30080iGWS191200909

NO.2

main89992-30090iGWS191200709

NO.1

main89992-30100iGWS191200709-200908

NO.2

main89992-30110iGWS191200709

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-41010iGWS191200602-200709

9017906274

main90179-06274

9155380612

main91553-80612

91631J0612

main91631-J0612

15 parts on this diagram · 1 diagram in section
