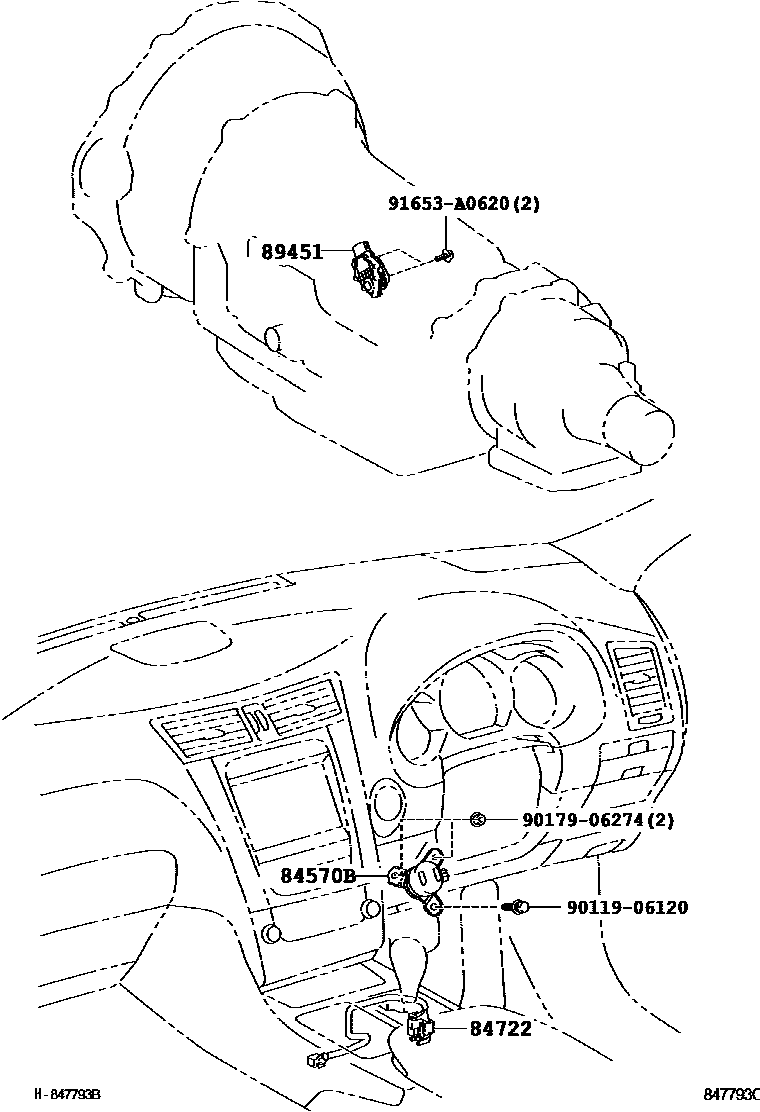

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84570BSWITCH ASSY, KICK DOWN

main84570-30090iGWS191..RHD200709

main84570-30090iGWS191..RHD200602-200709

NEW ZEALAND SPEC

main84570-30100iGWS191..LHD200602-200709

84722SWITCH, TRANSMISSION CONTROL

main84722-20230iGWS191..RHD200602-201112

main84722-20240iGWS191..LHD200602-201112

89451SENSOR, SHIFT LEVER POSITION

main89451-30010iGWS191200602-201112

9011906120

main90119-06120

9017906274

main90179-06274

91653A0620

main91653-A0620

6 parts on this diagram · 2 diagrams in section
