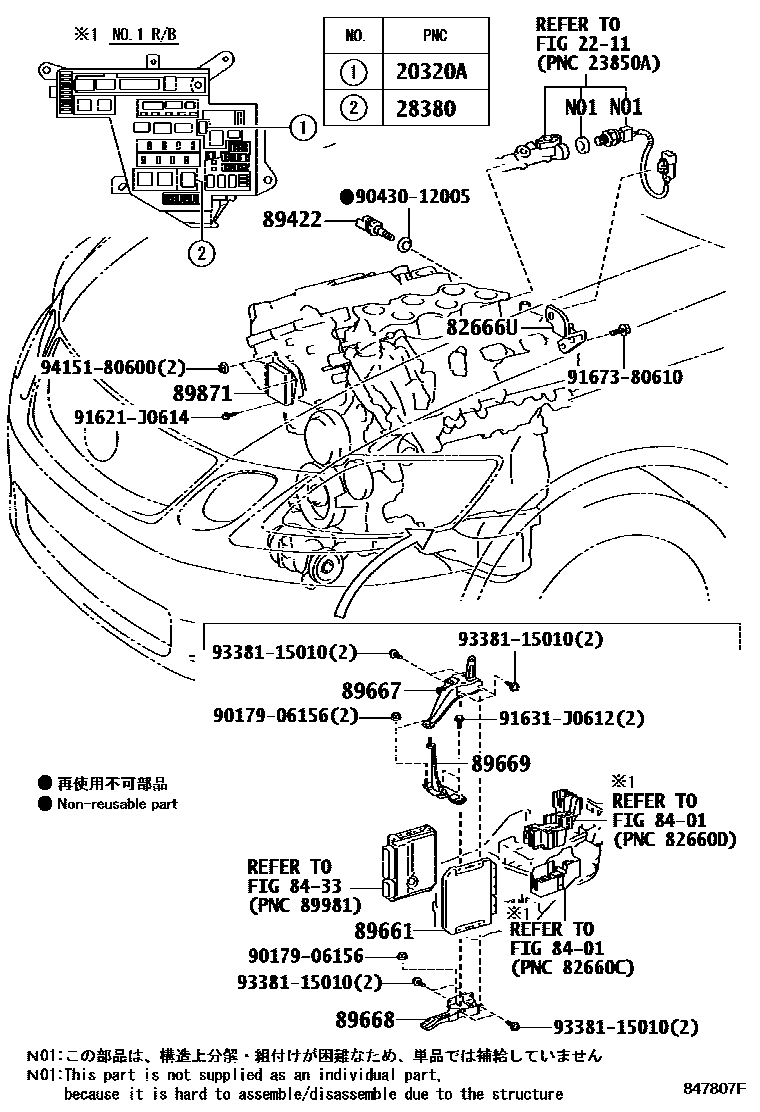

ELECTRONIC FUEL INJECTION SYSTEM

20320ARELAY, FUEL RELIEF VALVE

main90987-02027i2GRFSE..GWS191200602-201112

2211

28380RELAY ASSY, FUEL PUMP

main90987-03003i2GRFSE..GWS191200602-201112

82666UHOLDER, CONNECTOR

main82666-30780iGWS191200602-200709

8401

8433

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGWS191200602-200709

89661COMPUTER, ENGINE CONTROL

main89661-30D00iGWS191200602-200709

main89661-30G70iGWS191200709-200809

main89661-30N90iGWS191200809-200909

main89661-30Q30iGWS191200909-201007

main89661-30T10iGWS191201007-201112

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30290iGWS191200602-201112

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30241iGWS191200602-201112

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30161iGWS191200602-201112

89871DRIVER, INJECTOR

main89871-53010iGWS191200602-201112

9017906156

main90179-06156

9043012005

main90430-12005

91621J0614

main91621-J0614

91631J0612

main91631-J0612

9167380610

main91673-80610

9338115010

main93381-15010

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
