REAR COMBINATION LAMP

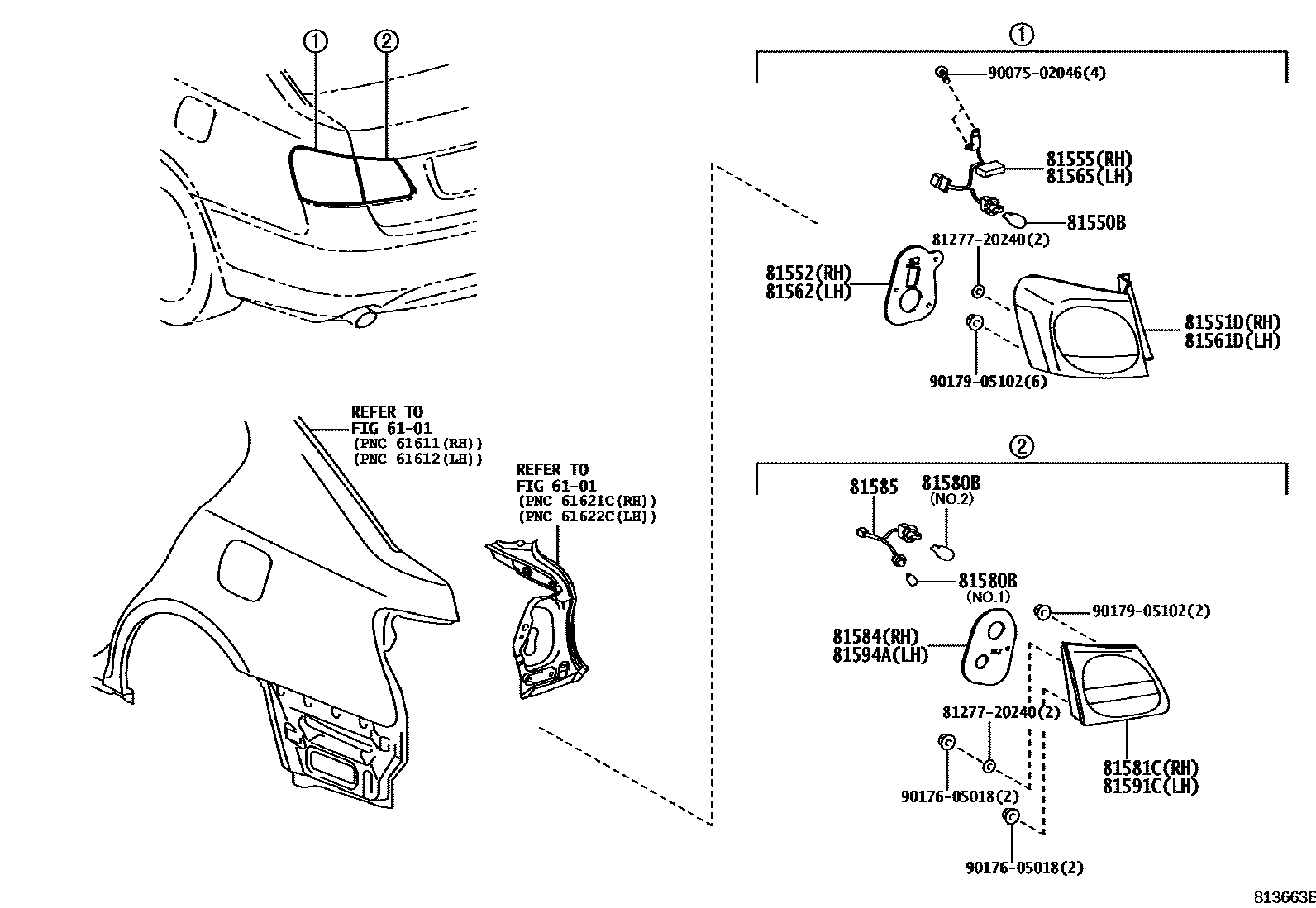

Parts diagram

6101

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15021i¥300200602-201112

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30A40i¥40,700200602-200612

sub81551-30A41¥41,000

main81551-30A41i¥41,000200612-200709

main81551-30A60i¥42,500200709-200909

main81551-30C10i¥42,500200909

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-30A40i¥1,140200602-200709

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30A41i¥2,030200602-200709

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30A30i¥40,700200602-200612

sub81561-30A31¥41,000

main81561-30A31i¥41,000200612-200709

main81561-30A50i¥42,500200709-200909

main81561-30A70i¥42,500200909

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-30A30i¥1,030200602-200603

sub81562-30A40¥1,020

main81562-30A40i¥1,020200603-200709

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-30A31i¥2,030200602-200709

81580BBULB (FOR REAR LAMP)

main90981-11059i¥200200602-201112

12V 16W,NO.1

main90981-13043i¥220200602-201112

12V 21W,NO.2

81581CLENS AND BODY, REAR LAMP, RH

main81581-30330i¥18,300200602-200612

sub81581-30331¥18,300

main81581-30331i¥18,300200612-200709

main81581-30360i¥20,000200909

main81581-30440i¥20,000200709-200909

81584PACKING, REAR LAMP RH

main81584-30280i¥1,020200602-200709

81585SOCKET & WIRE, REAR LAMP

main81585-30330i¥2,030200602-200709

81591CLENS, REAR LAMP, LH

main81591-30270i¥18,300200602-200612

sub81591-30271¥18,300

main81591-30271i¥18,300200612-200709

main81591-30280i¥20,000200909

main81591-30380i¥20,000200709-200909

81594AGASKET, REAR LAMP LH

main81594-30220i¥1,020200602-200709

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240¥100

9007502046

main90075-02046¥80

9017605018

main90176-05018¥70

9017905102

main90179-05102¥90

18 parts on this diagram · 1 diagram in section
