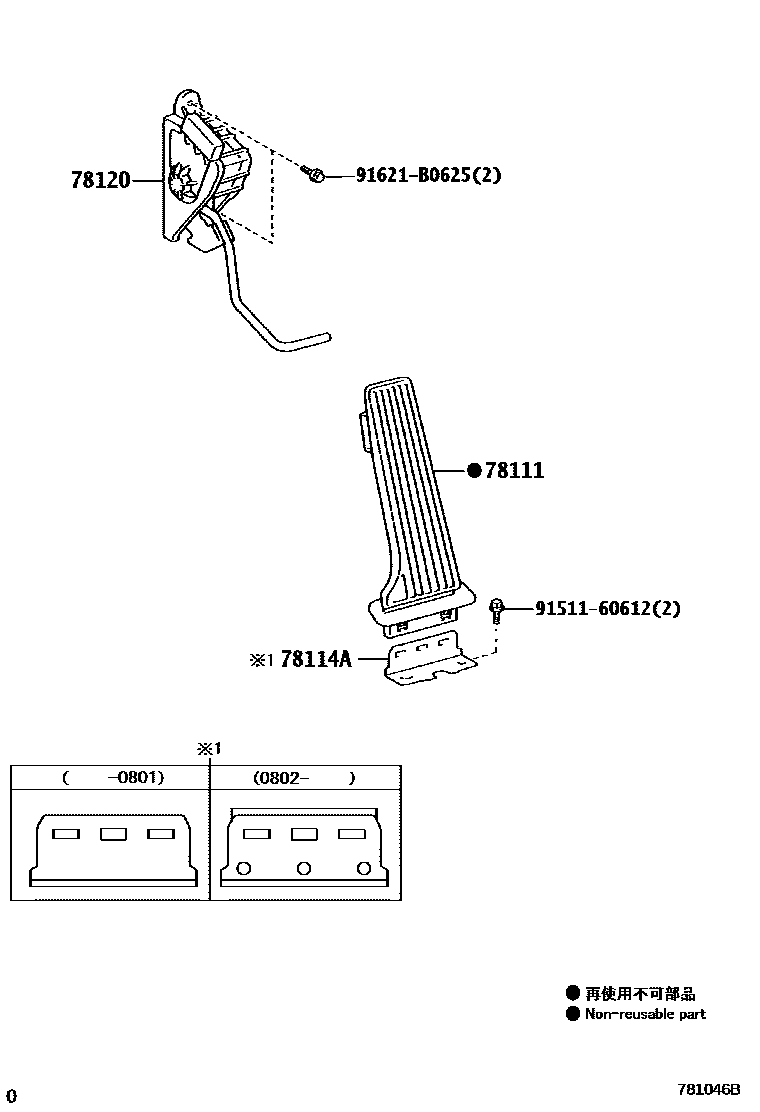

ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78111-30130iGWS191200602-200709

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-30130iGWS191200802

main78114-30100iGWS191200602-200801

78120ROD, ACCELERATOR LINK

main78120-30A40iGWS191..LHD200602-200709

sub78120-30A41

main78120-30A50iGWS191..RHD200602-200709

sub78120-30A51

9151160612

main91511-60612

91621B0625

main91621-B0625

5 parts on this diagram · 2 diagrams in section
