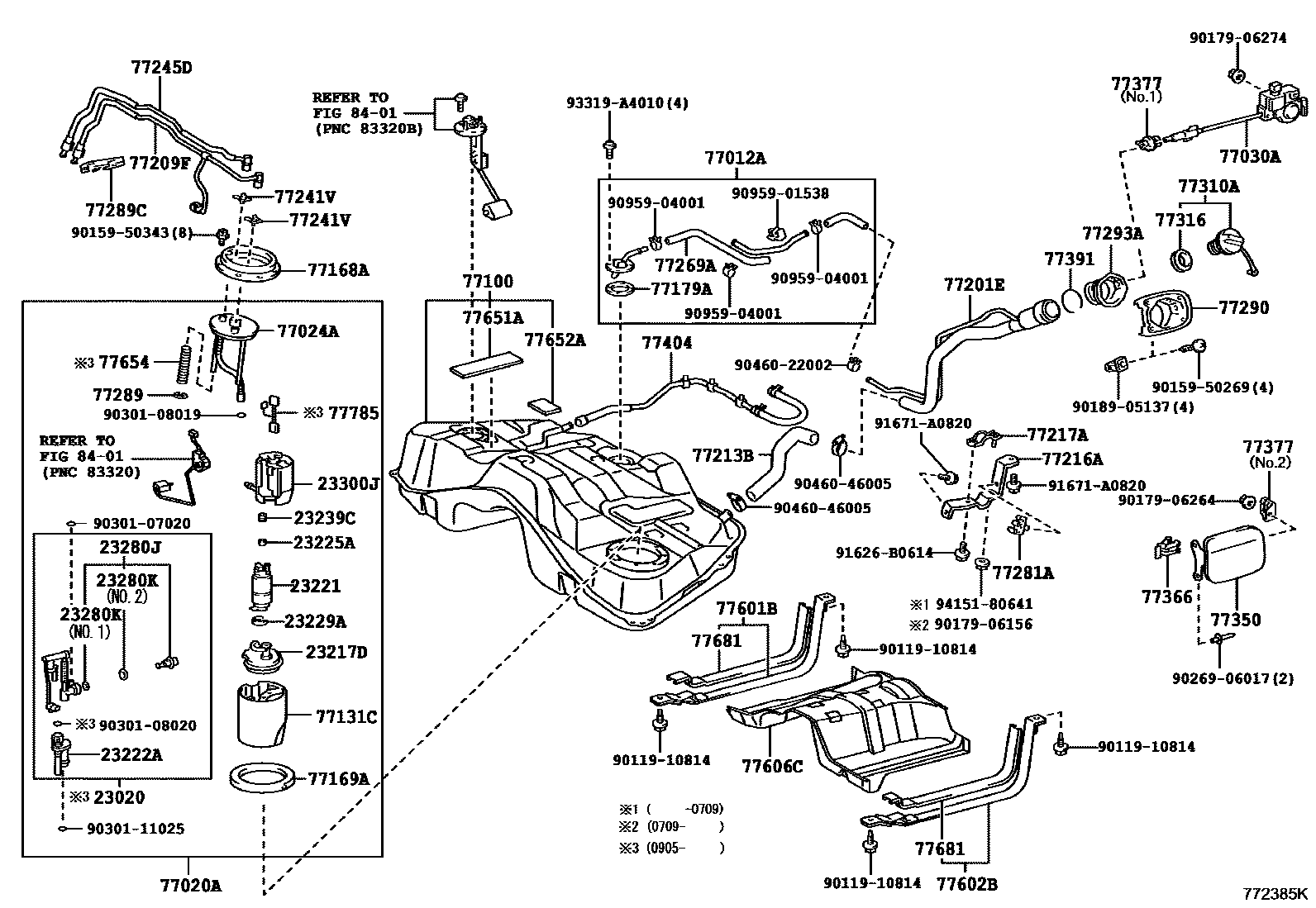

FUEL TANK & TUBE
23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23222ATUBE, FUEL RETURN JET
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
23300JFILTER ASSY, FUEL
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77030ALOCK ASSY, FUEL LID W/MOTOR
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77245DTUBE, FUEL TANK RETURN VENT
77269AHOSE, FUEL TANK BREATHER
77281ACLAMP, FUEL FILLER PIPE
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
NO.1
NO.2
77391RING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606CPROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77654CUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77785HARNESS, FUEL PUMP
8401
9011910814
9015950269
9015950343
9017906156
9017906264
9017906274
9018905137
9026906017
9030107020
main90301-07020
9030108019
9030108020
9030111025
9046022002
9046046005
9095901538
9095904001
91626B0614
91671A0820
93319A4010
9415180641
68 parts on this diagram · 2 diagrams in section
