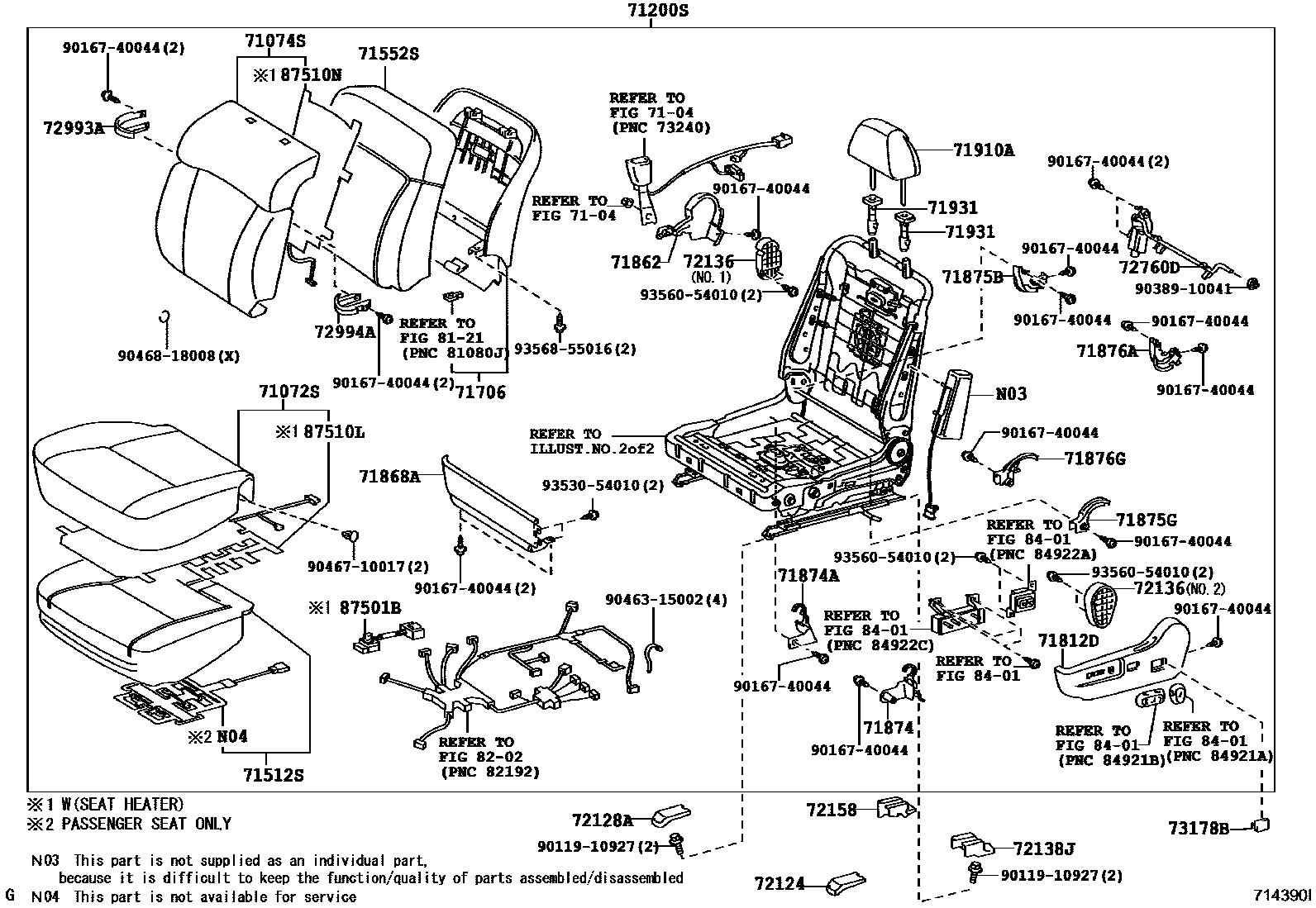

FRONT SEAT & SEAT TRACK
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
NEW IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71200SSEAT ASSY, FRONT LH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM02
LT.GRAY,TRIM1#
BLACK,TRIM04,2#
71812DSHIELD, FRONT SEAT CUSHION, LH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876COVER, RECLINING ADJUSTER INSIDE, LH
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK)&W(BUTTON),IVORY,TRIM0#,PASSENGER
W(LOCK)&W(BUTTON),GRAY,TRIM1#,PASSENGER
W(LOCK)&W(BUTTON),BLACK,TRIM2#,PASSENGER
W(LOCK)&W(BUTTON),IVORY,TRIM02,PASSENGER,DRIVER
W(LOCK)&W(BUTTON),WATER WHITE,TRIM04,PASSENGER,DRIVER
W(LOCK)&W/O(BUTTON),IVORY,TRIM02,PASSENGER,DRIVER
W(LOCK)&W/O(BUTTON),WATER WHITE,TRIM04,PASSENGER,DRIVER
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#,PASSENGER
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
72136SPACER, SEAT TRACK, LOWER NO.1
NO.1
RH SEAT, NO.2
LH SEAT, NO.2
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
72158COVER, SEAT TRACK BRACKET, INNER LH
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
72993COVER, FRONT SEATBACK
BLACK,TRIM2#
72993ACOVER, FRONT SEATBACK
BLACK,TRIM2#
72994COVER, FRONT SEATBACK
BLACK,TRIM2#
72994ACOVER, FRONT SEATBACK
BLACK,TRIM2#
73178BCAP, SEAT BELT ANCHOR COVER
IVORY,TRIM0#,RH
LT.GRAY,TRIM1#,RH
BLACK,TRIM2#,RH
IVORY,TRIM0#,LH
LT.GRAY,TRIM1#,LH
BLACK,TRIM2#,LH
8121
8202
8401
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
9011910927
9016740044
9038910041
9046315002
9046710017
9046818008
9353054010
9356054010
9356855016
45 parts on this diagram · 6 diagrams in section
