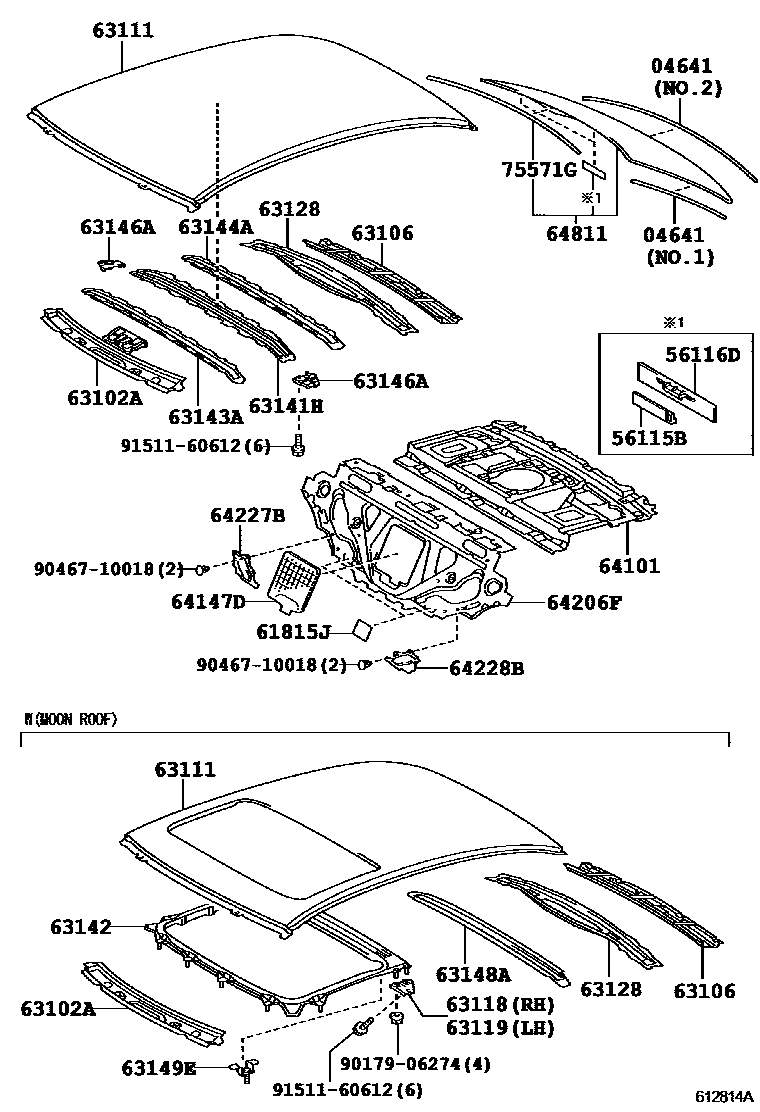

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

04641DAM KIT, BACK WINDOW GLASS

main56117-30350×2iGWS191200709

NO.1

sub56117-52040

main56118-30090iGWS191200602-200709

NO.2

sub64813-52010

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2iGWS191200602-200709

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iGWS191200602-200709

61815JCOVER, ROOF SIDE, INNER UPPER

main61815-30120×2iGWS191200602-200709

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30270supersedes 63102-30900iGWS191200602-200709

MOON ROOF-WITH

sub63102-30271

main63102-30901supersedes 63102-30900iGWS191200903

MOON ROOF-WITH

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-30080iGWS191200709

63111PANEL, ROOF

main63111-30630supersedes 63111-30620iGWS191200602-200709

MOON ROOF-WITH

main63111-30640iGWS191..LHD200909

CHINA SPEC

main63111-30650iGWS191..LHD200909

CHINA SPEC&MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-30121iGWS191200602-200709

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-30121iGWS191200602-200709

MOON ROOF-WITH

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30040iGWS191200602-200709

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30210iGWS191200602-200709

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30120iGWS191200602-200709

MOON ROOF-WITH

63143AREINFORCEMENT, ROOF PANEL

main63143-30250iGWS191200602-200709

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30180iGWS191200602-200709

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30110×2iGWS191200602-200709

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30110iGWS191200602-200709

MOON ROOF-WITH

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-30080×2iGWS191..LHD200909

CHINA SPEC&MOON ROOF-WITH

64101PANEL SUB-ASSY, UPPER BACK

main64101-30870iGWS191200602-200709

64147DPLATE, BACK PANEL CORNER, UPPER

main64147-30010iGWS191200602-200709

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30070iGWS191200602-200705

main64206-30071iGWS191200705-200709

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30120iGWS191200602-200709

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30100iGWS191200602-200709

64811GLASS, BACK WINDOW

main64801-30A50iGWS191200709-200805

*UVCEHT,T=3.5,GREEN

main64801-30A51iGWS191200806

*UVCEHT,T=3.5,GREEN

sub64801-30954

main64801-30A30iGWS191..RHD200607-200709

*UVCEHT,T=3.5,GREEN,AUSTRALIA SPEC

sub64801-30953

main64801-30B20iGWS191..RHD200809

*UVCEHT,T3.5,C.GREEN,AUSTRALIA SPEC&BACK GLASS-PRIVACY

main64801-30B40iGWS191..RHD200809-201101

*UVCEHT,T3.5,C.GREEN,ISRAEL SPEC&BACK GLASS-PRIVACY

main64801-30B41iGWS191..RHD201102

*UVCEHT,T3.5,C.GREEN,ISRAEL SPEC&BACK GLASS-PRIVACY

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-30380iGWS191200709

9017906274

main90179-06274

9046710018

main90467-10018

9151160612

main91511-60612

27 parts on this diagram · 2 diagrams in section
