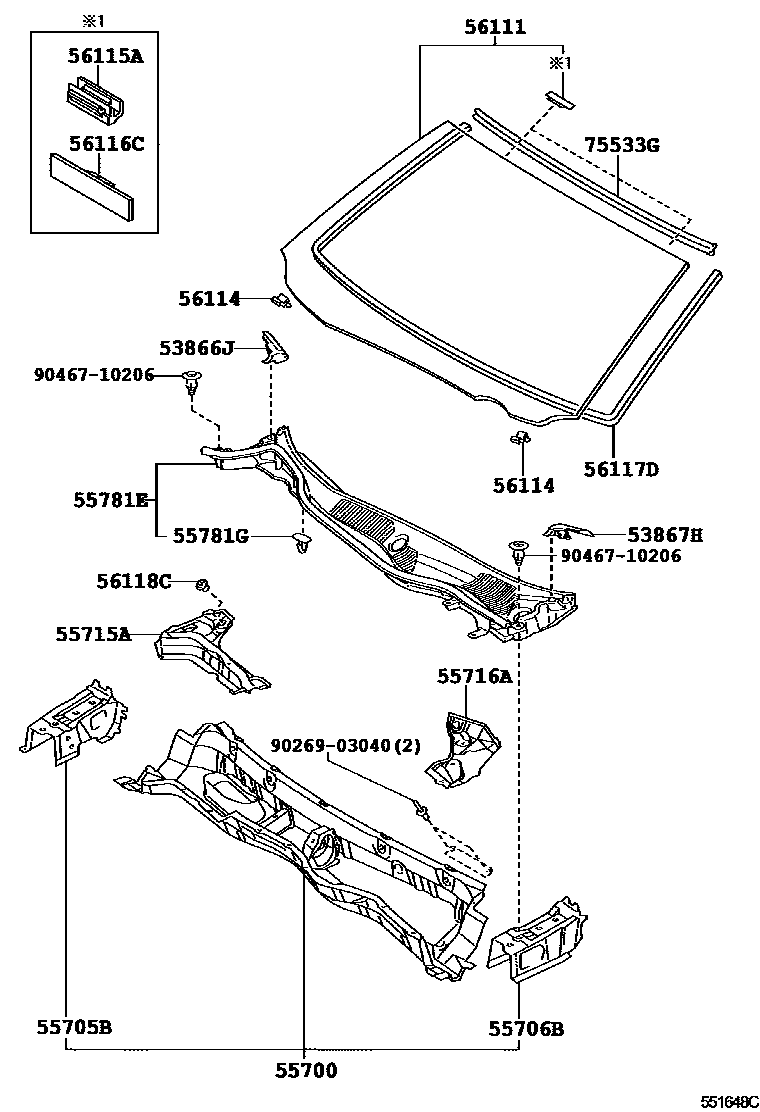

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30110iGWS191200602-200709

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30110iGWS191200602-200709

55700PANEL ASSY, FRONT

main55700-30A20iGWS191..RHD200709

main55700-30A30iGWS191..LHD200602-200709

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-30901iGWS191200602-200709

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-30901iGWS191200709

55715ABRACE, COWL TOP TO APRON, RH

main55715-30120iGWS191..RHD200709

main55715-30130iGWS191..LHD200602-200709

55716ABRACE, COWL TOP TO APRON, LH

main55716-30150iGWS191..RHD200709

main55716-30160iGWS191..LHD200602-200709

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30100iGWS191..LHD200602-200709

main55708-30101iGWS191..LHD200906

main55708-30110iGWS191..RHD200709-200905

main55708-30111iGWS191..RHD200906

sub55708-30121

main55708-30120iGWS191..RHD200602-200709

sub55708-30121

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×7iGWS191200602-200709

56111GLASS, WINDSHIELD

main56101-30A21supersedes 56101-30A11iGWS191..LHD200709-200809

*LAM,T=5.36,GREEN

sub56101-30Q90

main56101-30B21supersedes 56101-30B11iGWS191..RHD200709-200805

*LAM,T=5.36,GREEN

main56101-30B22supersedes 56101-30B12iGWS191..RHD200806-200809

*LAM,T=5.36,GREEN

sub56101-30R10

main56101-30B50supersedes 56101-30C00iGWS191..LHD200602-200607

*LAM,T=5.4,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-30B90supersedes 56101-30C10iGWS191..RHD200602-200607

*LAM,T=5.4,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-30D60supersedes 56101-30A11iGWS191..LHD200809-201006

*LAM,T=5.3,GREEN,WINDSHIELD DEICER-WITH

main56101-30D61iGWS191..LHD201007

*LAM,T=5.3,GREEN,WINDSHIELD DEICER-WITH

sub56101-30D62

main56101-30D70supersedes 56101-30A11iGWS191..LHD200809-201006

*LAM,T=5.3,GREEN,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-30D71iGWS191..LHD201007

*LAM,T=5.3,GREEN,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56101-30D72

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iGWS191200602-200709

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iGWS191200602-200709

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iGWS191200602-200709

56117DDAM, WINDSHIELD GLASS ADHESIVE

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iGWS191200602-200709

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-30370iGWS191200602-200709

9026903040

main90269-03040

9046710206

main90467-10206

18 parts on this diagram · 2 diagrams in section
