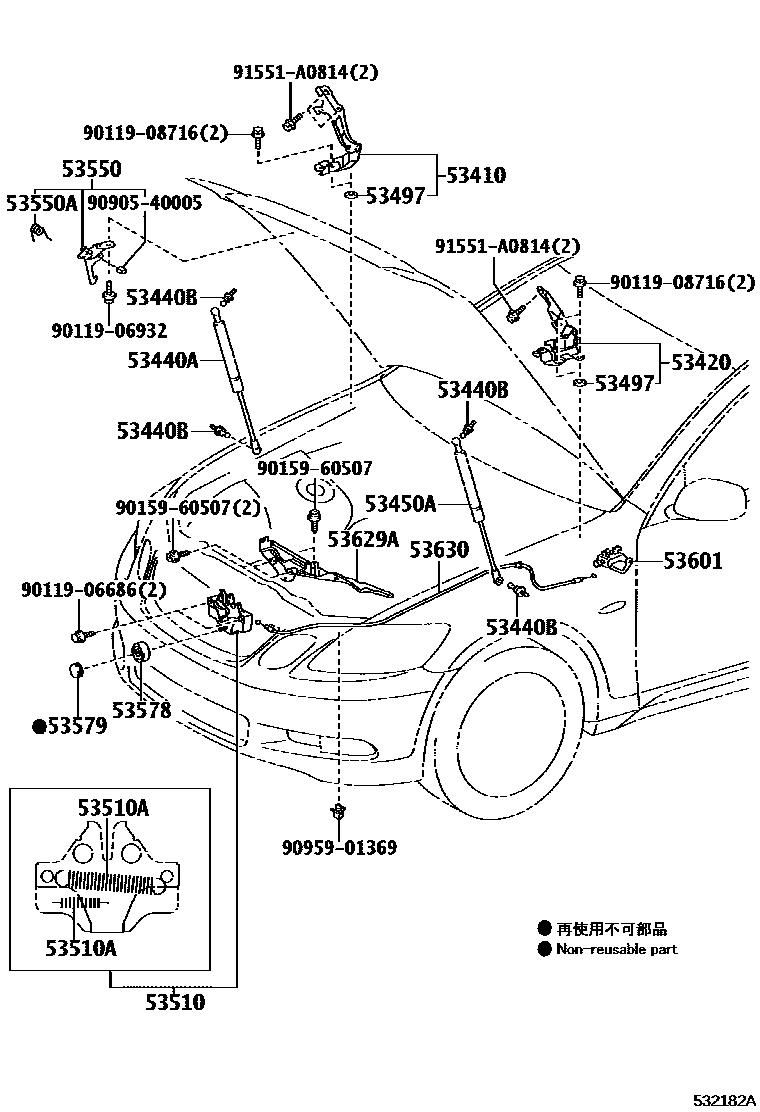

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
53450ASUPPORT ASSY, HOOD, LH
53497PAD, HOOD HINGE, NO.1
T=2.9
T=1.0
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.5
WD=1.4,CW=15
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53578NUT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
IVORY,TRIM00,01
IVORY,TRIM02
LT.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM04,2#
53629ACOVER, HOOD LOCK CONTROL CABLE
9011906686
main90119-06686
9011906932
main90119-06932
9011908716
main90119-08716
9015960507
main90159-60507
9090540005
main90905-40005
9095901369
main90959-01369
91551A0814
main91551-A0814
22 parts on this diagram · 4 diagrams in section
