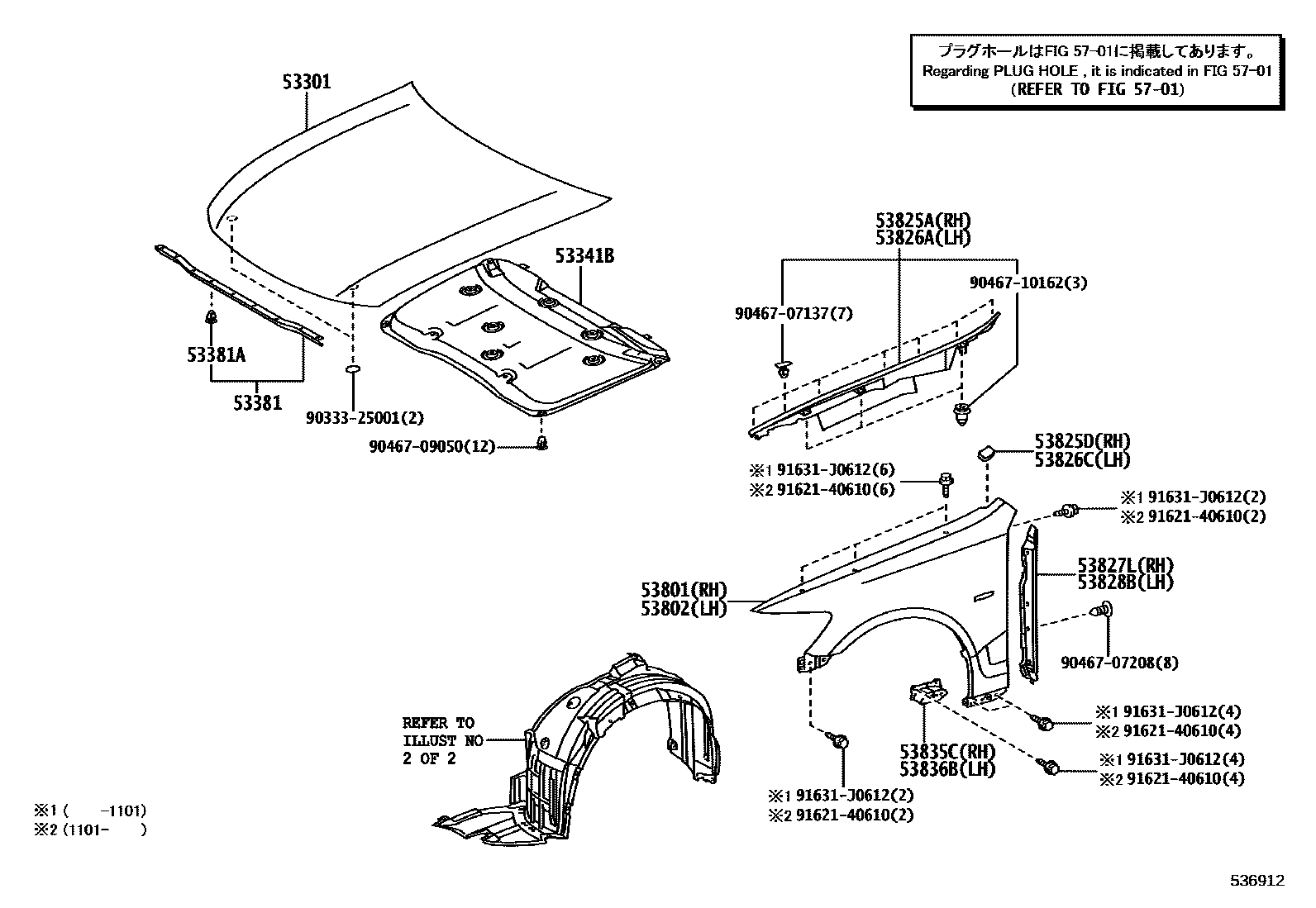

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-30450iGWS191¥116,000200602-201112

53341BINSULATOR, HOOD

main53341-30270iGWS191¥7,400200602-200709

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30230iGWS191¥1,720200602-200709

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGWS191¥100200602-200709

53801FENDER SUB-ASSY, FRONT RH

main53801-30A00iGWS191¥64,600200709-201012

sub53801-30A01¥64,600

main53801-30A01iGWS191¥64,600201101-201112

main53801-30A10iGWS191¥63,600200602-200709

53802FENDER SUB-ASSY, FRONT LH

main53802-30A00iGWS191¥63,600200602-200709

main53802-3F210iGWS191¥64,600200709-201012

sub53802-3F211¥64,600

main53802-3F211iGWS191¥64,600201101-201112

53825APROTECTOR, FRONT FENDER, UPPER RH

main53805-30100iGWS191¥4,630200602-200709

53825DPATCH, FRONT FENDER, UPPER RH

main53825-30170iGWS191¥360200602-200709

53826APROTECTOR, FRONT FENDER, UPPER LH

main53806-30100iGWS191¥4,630200602-200709

53826CPATCH, FRONT FENDER, UPPER LH

main53825-30170iGWS191¥360200602-200709

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30050iGWS191¥3,020200602-200709

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30060iGWS191¥3,020200602-200709

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-30110iGWS191¥1,010200602-200709

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-30060iGWS191¥1,010200602-200709

5701

9033325001

main90333-25001¥140

9046707137

main90467-07137¥160

9046707208

main90467-07208¥110

9046709050

main90467-09050¥120

9046710162

main90467-10162¥90

9162140610

main91621-40610¥70

91631J0612

main91631-J0612¥110

22 parts on this diagram · 2 diagrams in section
