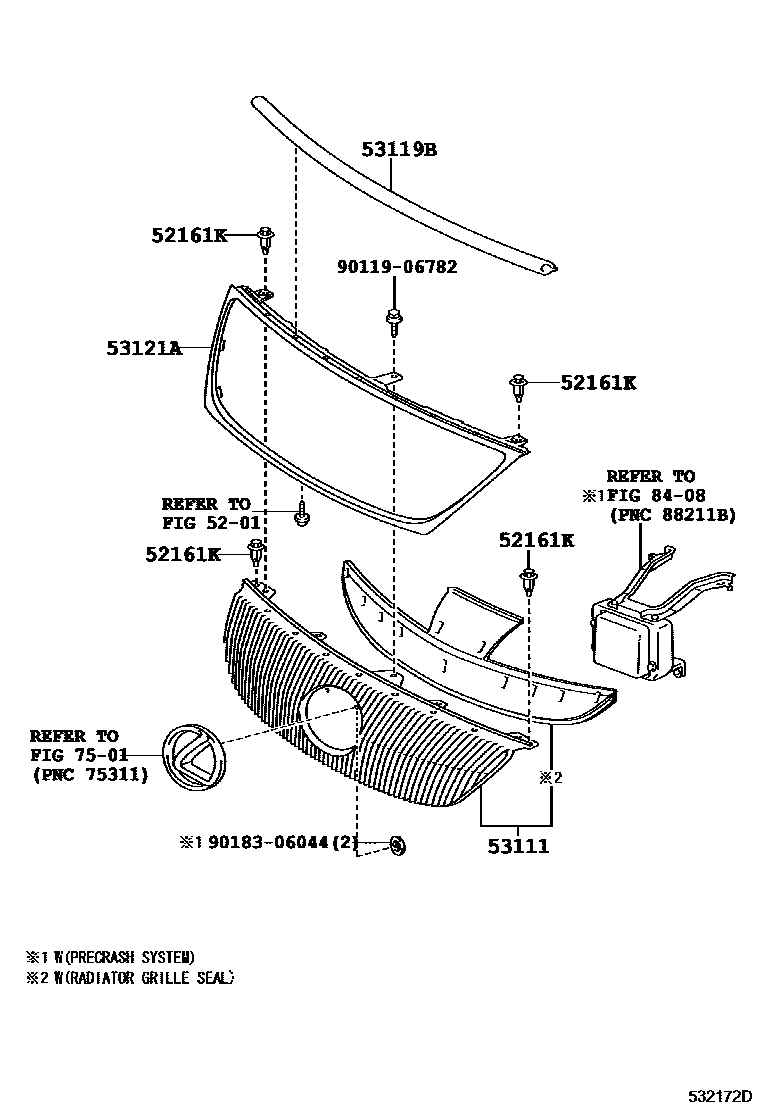

RADIATOR GRILLE
5201
52161KPIECE, FRONT BUMPER
sub52161-0K040
53111GRILLE, RADIATOR
NO PAINT REQ.,BELGIUM SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,DENMARK SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,ENGLAND SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,FRANCE SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,GERMANY SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,HOLLAND SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,FINLAND&SWEDEN SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,NORWAY SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,PORTUGAL SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,IRELAND SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,SWITZERLAND SPEC&PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
53119BPROTECTOR, RADIATOR GRILLE
53121AMOULDING, RADIATOR GRILLE
RUSSIA SPEC
7501
8408
9011906782
main90119-06782
9018306044
main90183-06044
9 parts on this diagram · 2 diagrams in section
