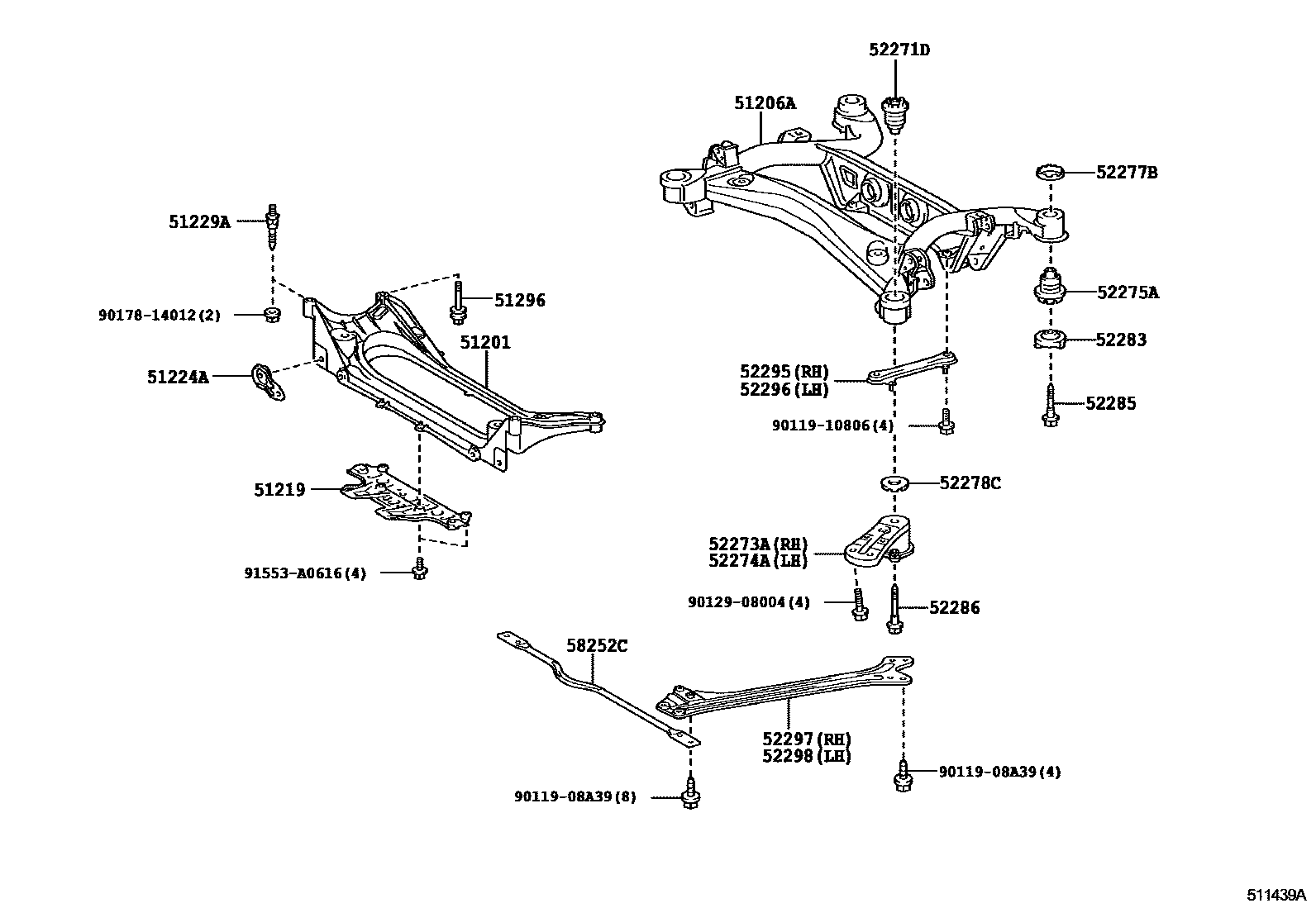

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1UNDER COVER 0003 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGWS191¥66,200200602-201012

sub51201-30140¥41,700

main51201-30140iGWS191¥41,700201012-201112

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30100iGWS191¥84,500200602-200812

sub51206-30101¥84,500

main51206-30101iGWS191¥84,500200901

sub51206-30160¥84,500

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iGWS191¥4,630200602-200709

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iGWS191¥1,760200602-200709

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01004iGWS191¥590200602-201112

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16013iGWS191¥870200602-201112

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30100iGWS191¥3,350200602-200707

sub52271-30120¥2,790

main52271-30120iGWS191¥2,790200708-200709

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-30070iGWS191¥2,670200602-200709

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-30050iGWS191¥2,670200602-200709

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30130iGWS191¥4,230200602-200709

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060iGWS191¥840200602-200709

sub52277-30070¥840

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050iGWS191¥570200602-200709

sub52278-30080¥570

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iGWS191¥1,190200602-200709

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGWS191¥1,360200602-200709

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020iGWS191¥2,680200602-200709

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGWS191¥2,040200602-200709

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGWS191¥2,040200602-200709

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53030iGWS191¥5,100200602-200709

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53030iGWS191¥5,100200602-200709

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-30020iGWS191¥4,060200602-200709

9011908A39

main90119-08A39¥80

9011910806

main90119-10806¥810

9012908004

main90129-08004¥200

9017814012

main90178-14012¥210

91553A0616

main91553-A0616¥60

25 parts on this diagram · 3 diagrams in section
