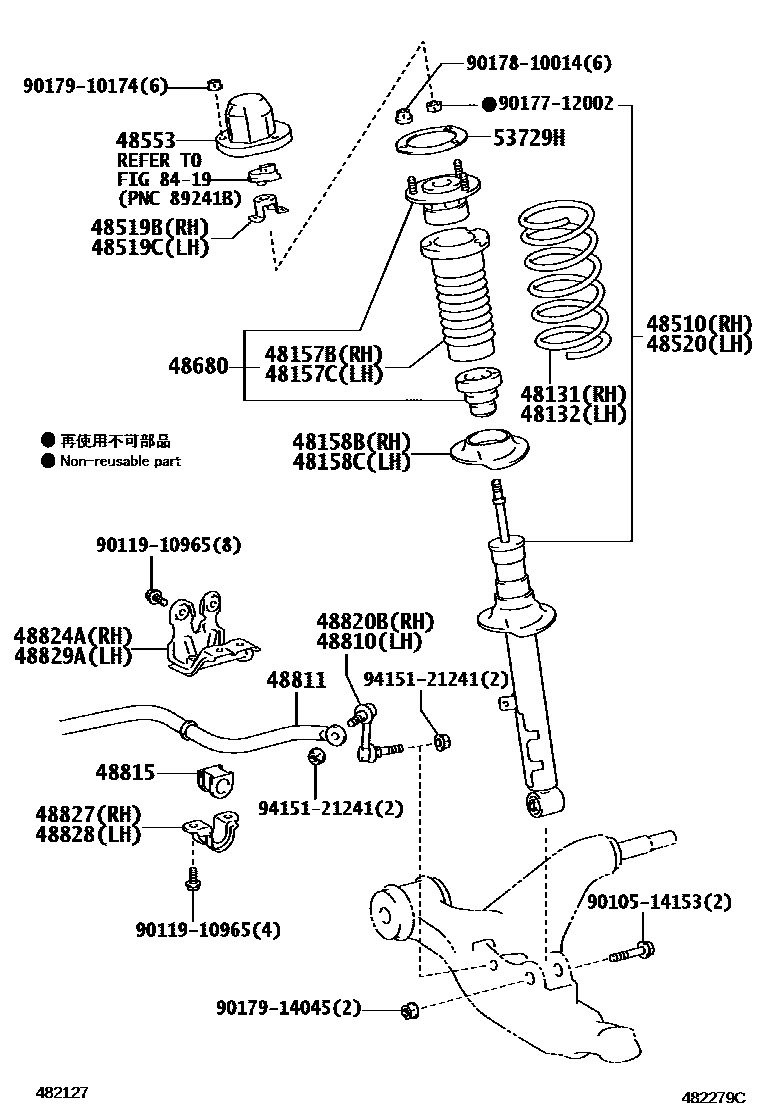

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1W(ACTIVE STABILIZER SUSPENSIO0003 1W(ACTIVE STABILIZER SUSPENSIO

48131SPRING, FRONT COIL, RH

main48131-30B10iGWS191200602-200704

main48131-30B11iGWS191200705-200709

48132SPRING, FRONT COIL, LH

main48131-30B10iGWS191200602-200704

main48131-30B11iGWS191200705-200709

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30250iGWS191200602-200709

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30250iGWS191200602-200709

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iGWS191200602-200709

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iGWS191200602-200709

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80317supersedes 48510-80433iGWS191200602-200709

MARK 48510-30740,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

sub48510-80429

main48510-80391supersedes 48510-80433iGWS191200709-200711

MARK 48510-30830,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48510-80434supersedes 48510-80433iGWS191200711-201112

MARK 48510-30831,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

sub48510-80436

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

main48519-30030iGWS191200602-200709

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

main48519-30030iGWS191200602-200709

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80095supersedes 48520-80180iGWS191200602-200709

MARK 48520-30190,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

sub48520-80176

main48520-80150supersedes 48520-80180iGWS191200709-200711

MARK 48520-30350,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48520-80181supersedes 48520-80180iGWS191200711-201112

MARK 48520-30351,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

sub48520-80183

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100×2iGWS191200602-200709

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-30340×2iGWS191200602-200709

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30070iGWS191200602-200709

48811BAR, STABILIZER, FRONT

main00000-00000supersedes 48811-30661iGWS191200602-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION),NOT APPLICABLE

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30620×2supersedes 48815-30571iGWS191200602-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30090iGWS191200602-200709

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30080supersedes 48809-30130iGWS191200602-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48809-30100supersedes 48809-30130iGWS191200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30130iGWS191200602-200709

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30130iGWS191200602-200709

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48807-30010supersedes 48809-30130iGWS191200602-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48807-30030supersedes 48809-30130iGWS191200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020×2iGWS191200602-200709

8419

9010514153

main90105-14153

9011910965

main90119-10965

9017712002

main90177-12002

9017810014

main90178-10014

9017910174

main90179-10174

9017914045

main90179-14045

9415121241

main94151-21241

29 parts on this diagram · 3 diagrams in section
