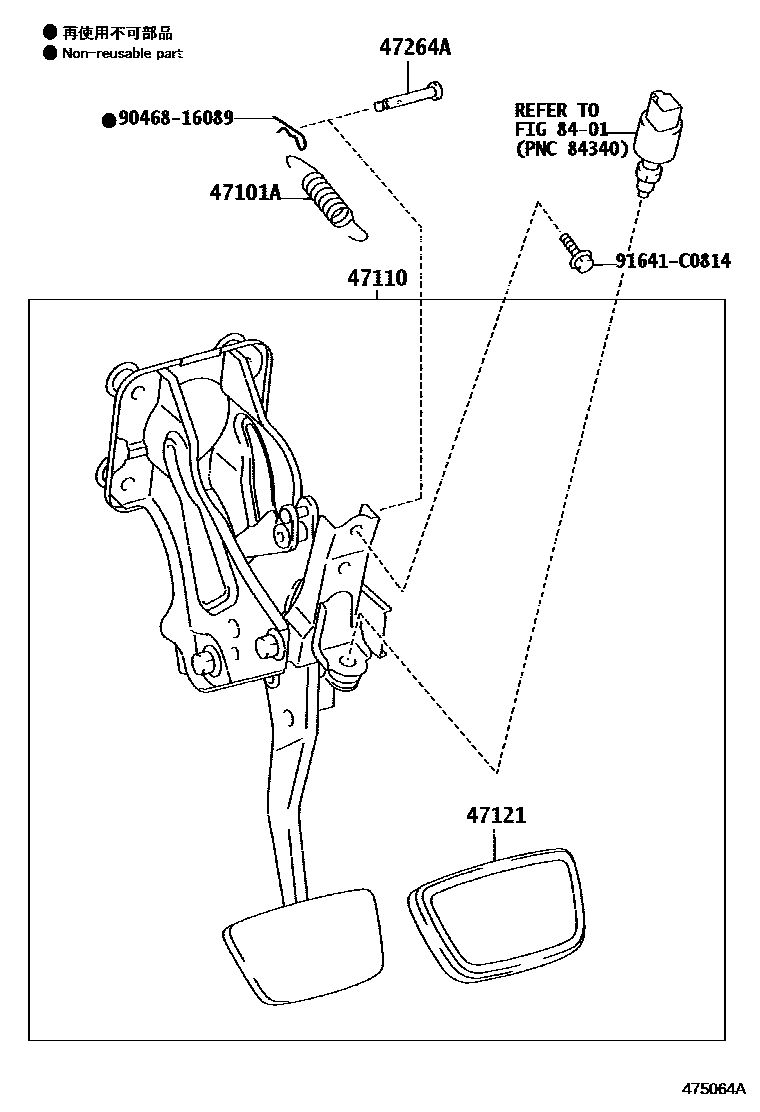

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14017iGWS191200709

main90905-07007iGWS191200602-200709

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30410iGWS191..RHD200602-200909

sub47110-30411

main47110-30411iGWS191..RHD200910-201112

main47110-30430iGWS191..LHD200602-200909

sub47110-30431

main47110-30431iGWS191..LHD200910-201112

47121PAD, BRAKE PEDAL

main47121-50020iGWS191200602-200709

47264APIN(FOR PUSH ROD)

main90249-10199iGWS191200602-200709

8401

9046816089

main90468-16089

91641C0814

main91641-C0814

7 parts on this diagram · 2 diagrams in section
