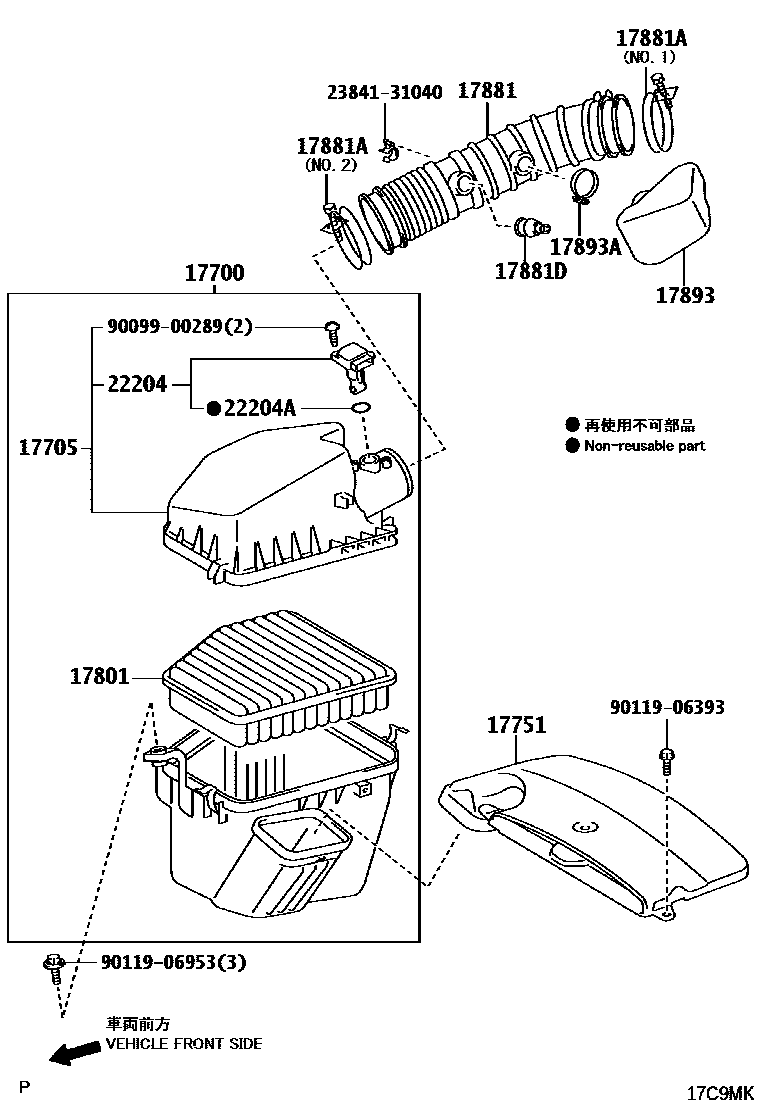

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-31551i2GRFSE..GWS191200602-200709

17705CAP SUB-ASSY, AIR CLEANER

main17705-31100i2GRFSE..GWS191200602-200709

17751INLET, AIR CLEANER, NO.1

main17751-31070i2GRFSE..GWS191200602-200709

main17751-31260i2GRFSE..GWS191200709

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-50060i2GRFSE..GWS191200602-201112

17881HOSE, AIR CLEANER, NO.1

main17881-31160i2GRFSE..GWS191200602-200709

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-90005i2GRFSE..GWS191200602-200709

NO.1

main96111-10850i2GRFSE..GWS191200602-200709

NO.2

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2GRFSE..GWS191200602-200709

17893RESONATOR, INTAKE AIR

main17893-31070i2GRFSE..GWS191200602-200709

17893ACLAMP, HOSE

main96111-10380i2GRFSE..GWS191200602-200709

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i2GRFSE..GWS191200602-200709

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i2GRFSE..GWS191200602-200709

2384131040CLAMP, FUEL PIPE(HOSE), NO.1

main23841-31040

9009900289

main90099-00289

9011906393

main90119-06393

9011906953

main90119-06953

15 parts on this diagram · 1 diagram in section
