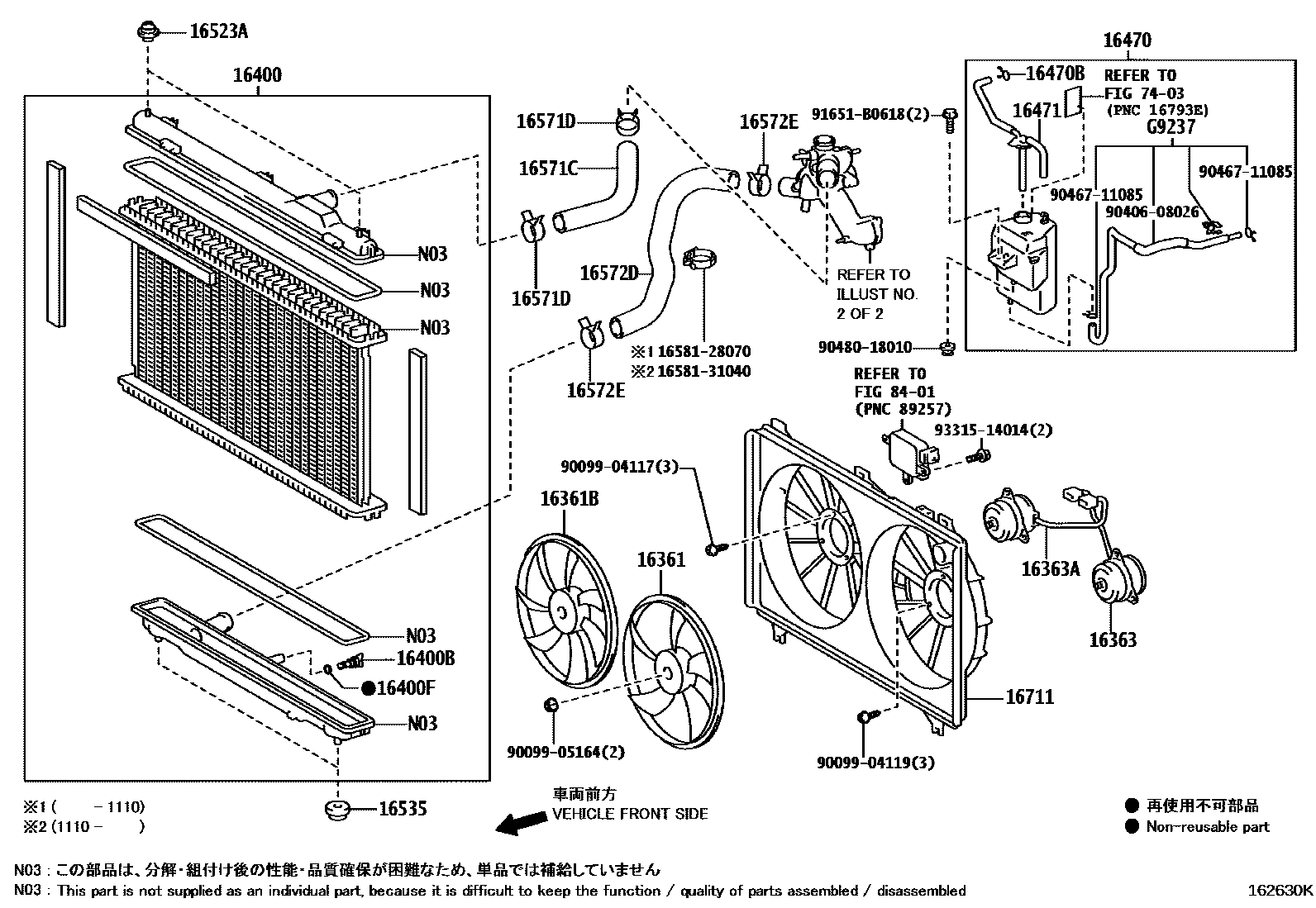

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16711SHROUD, FAN
7403
8401
G9237HOSE, INVERTER DRAIN
1658128070CLAMP, HOSE(FOR WATER HOSE)
main16581-28070
1658131040CLAMP, HOSE(FOR WATER HOSE)
main16581-31040
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
9040608026
main90406-08026
9046711085
main90467-11085
9048018010
main90480-18010
91651B0618
main91651-B0618
9331514014
main93315-14014
30 parts on this diagram · 2 diagrams in section
