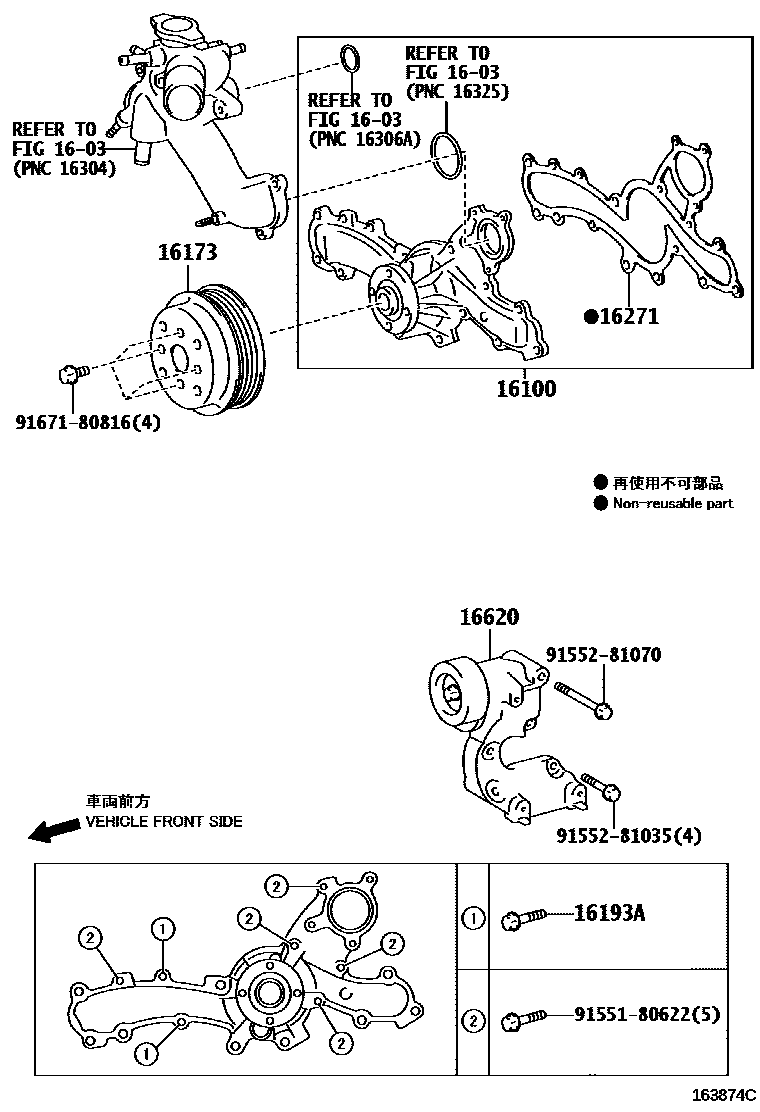

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-39435i2GRFSE..GWS191¥17,200200602-200903

sub16100-39436¥13,400

main16100-39436i2GRFSE..GWS191¥13,400200903

16173PULLEY, WATER PUMP

main16173-31010i2GRFSE..GWS191¥3,300200602-200709

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i2GRFSE..GWS191¥210200602-200709

16271GASKET, WATER PUMP

main16271-31020i2GRFSE..GWS191¥2,320200602-200709

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31060i2GRFSE..GWS191¥26,900200602-200709

9155180622

main91551-80622¥60

9155281035

main91552-81035¥120

9155281070

main91552-81070¥160

9167180816

main91671-80816¥80

10 parts on this diagram · 1 diagram in section
