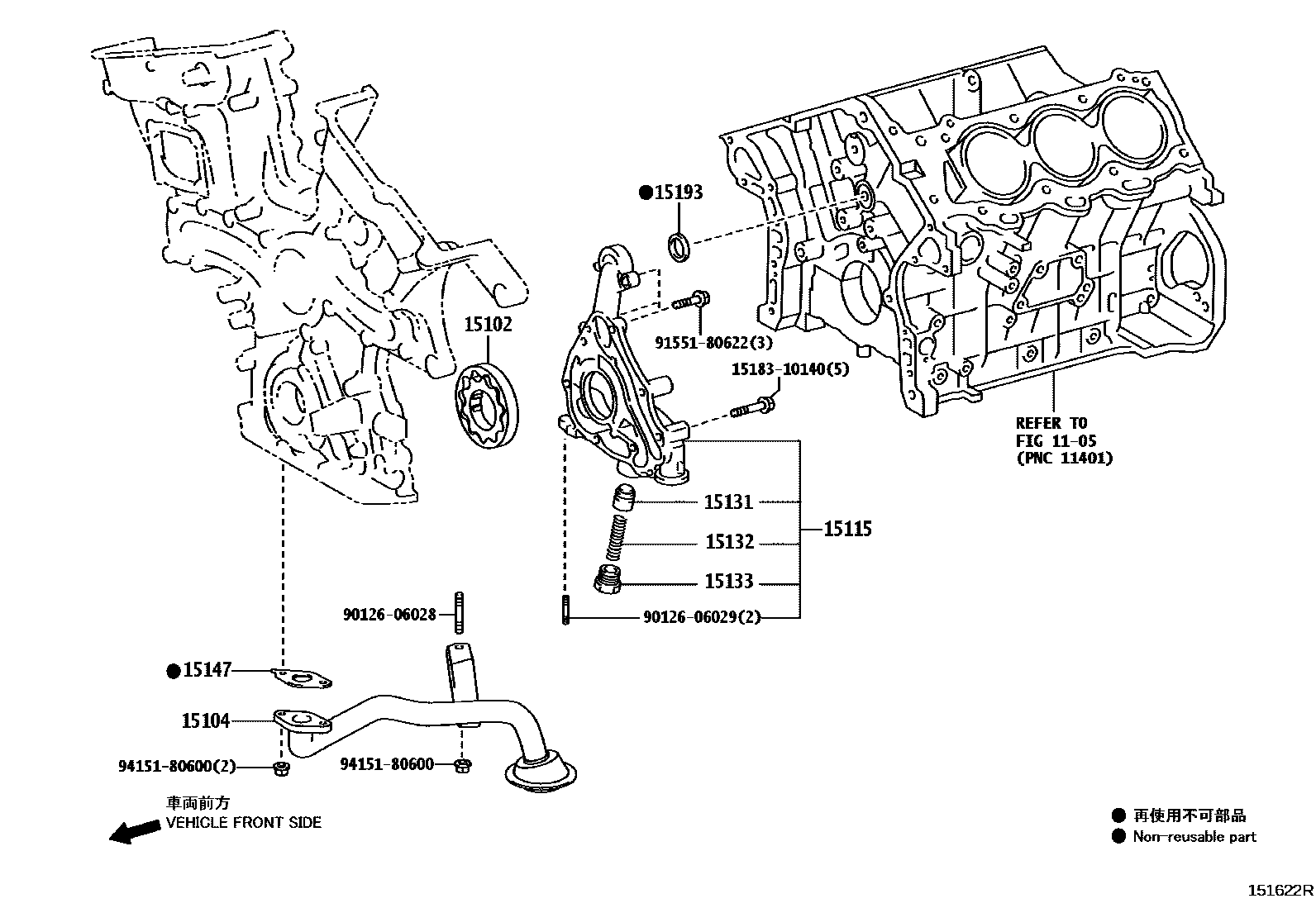

ENGINE OIL PUMP

1105

15102ROTOR SET, OIL PUMP

main15103-31050i2GRFSE..GWS191¥3,740200602-200709

15104STRAINER SUB-ASSY, OIL

main15104-31080i2GRFSE..GWS191¥6,900200602-200709

15115COVER, OIL PUMP

main15115-31040i2GRFSE..GWS191¥2,240200602-200709

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFSE..GWS191¥360200602-200709

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2GRFSE..GWS191¥210200602-200709

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2GRFSE..GWS191¥260200602-200709

15147GASKET, OIL STRAINER

main15147-31060i2GRFSE..GWS191¥270200602-200709

15193GASKET, OIL PUMP

main15193-31020i2GRFSE..GWS191¥220200602-200709

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140¥210

9012606028

main90126-06028¥60

9012606029

main90126-06029¥60

9155180622

main91551-80622¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
