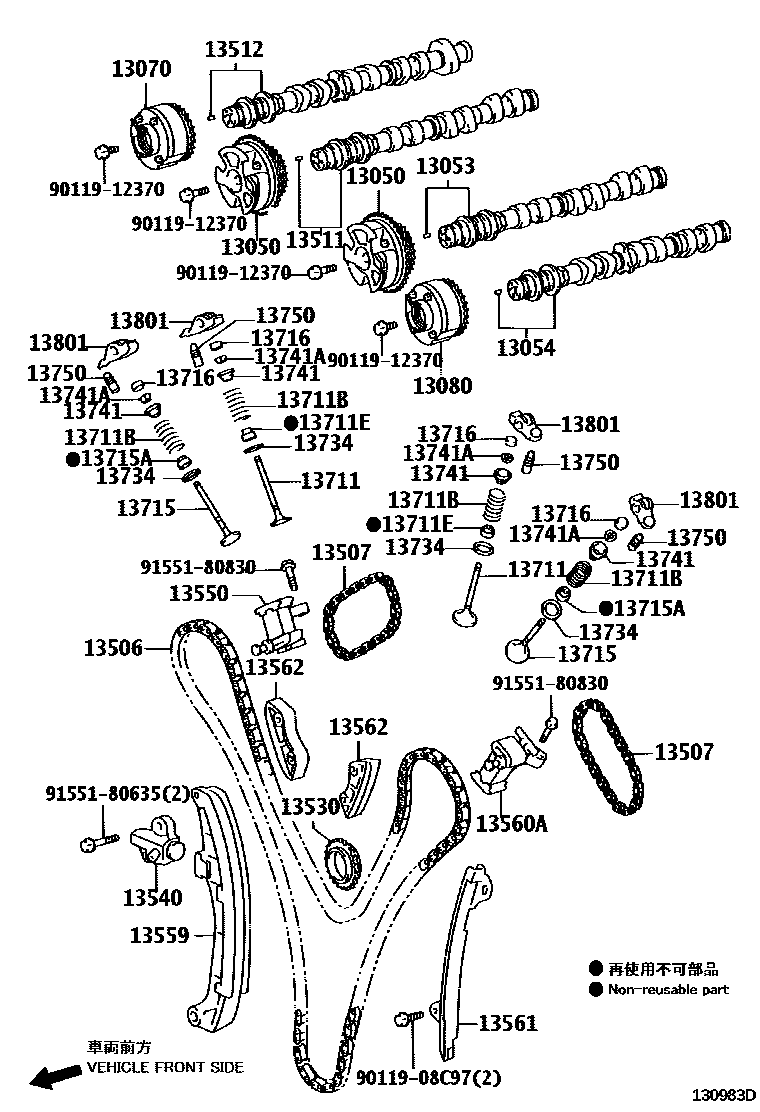

CAMSHAFT & VALVE
13054CAMSHAFT SUB-ASSY, NO.4
13507CHAIN SUB-ASSY, NO.2
13512CAMSHAFT, NO.2
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
sub13711-31101
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
9011908C97
main90119-08C97
9011912370
main90119-12370
9155180635
main91551-80635
9155180830
main91551-80830
31 parts on this diagram · 1 diagram in section
