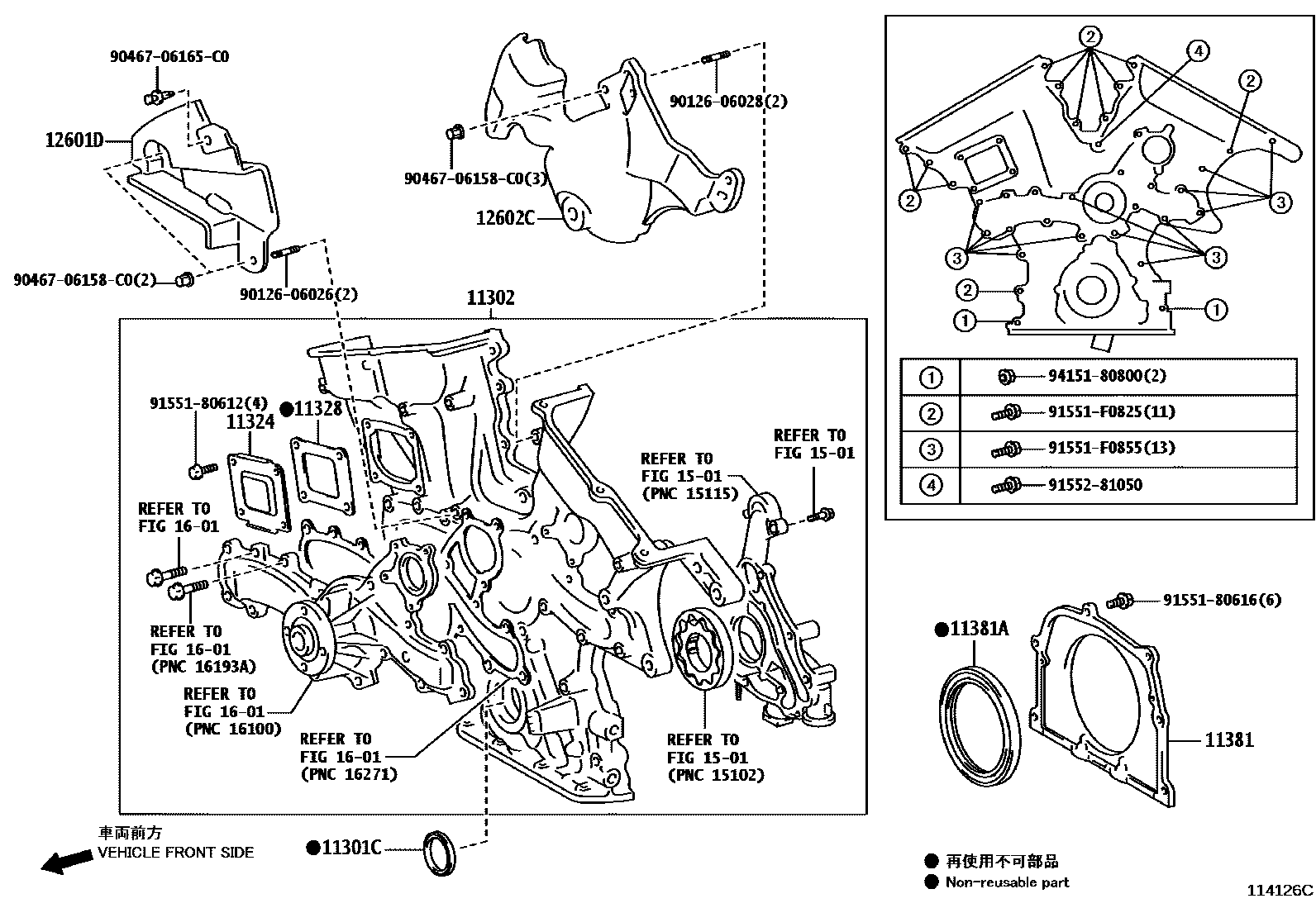

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i2GRFSE..GWS191¥520200602-200905

sub90311-42045¥520

main90311-42045i2GRFSE..GWS191¥520200905

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31042i2GRFSE..GWS191¥50,600200602-200709

sub11310-31044¥42,200

sub91552-81060¥160

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFSE..GWS191¥660200602-200709

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFSE..GWS191¥400200602-200709

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31021i2GRFSE..GWS191¥3,920200602-200709

11381ASEAL, ENGINE REAR OIL

main90311-92006i2GRFSE..GWS191¥1,080200602-200802

sub90311-92009¥1,510

main90311-92009i2GRFSE..GWS191¥1,510200802-201009

sub90311-92010¥1,510

main90311-92010i2GRFSE..GWS191¥1,510201009

12601DCOVER, ENGINE, NO.1

main12601-31010i2GRFSE..GWS191¥2,060200602-200709

12602CCOVER, ENGINE, NO.2

main12602-31012i2GRFSE..GWS191¥5,200200602-201201

sub12602-31013¥4,340

1501

1601

9012606026

main90126-06026¥60

9012606028

main90126-06028¥60

9046706158C0

main90467-06158C0

9046706165C0

main90467-06165C0

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

91551F0825

main91551-F0825¥80

91551F0855

main91551-F0855¥100

9155281050

main91552-81050¥120

9415180800

main94151-80800¥80

20 parts on this diagram · 1 diagram in section
