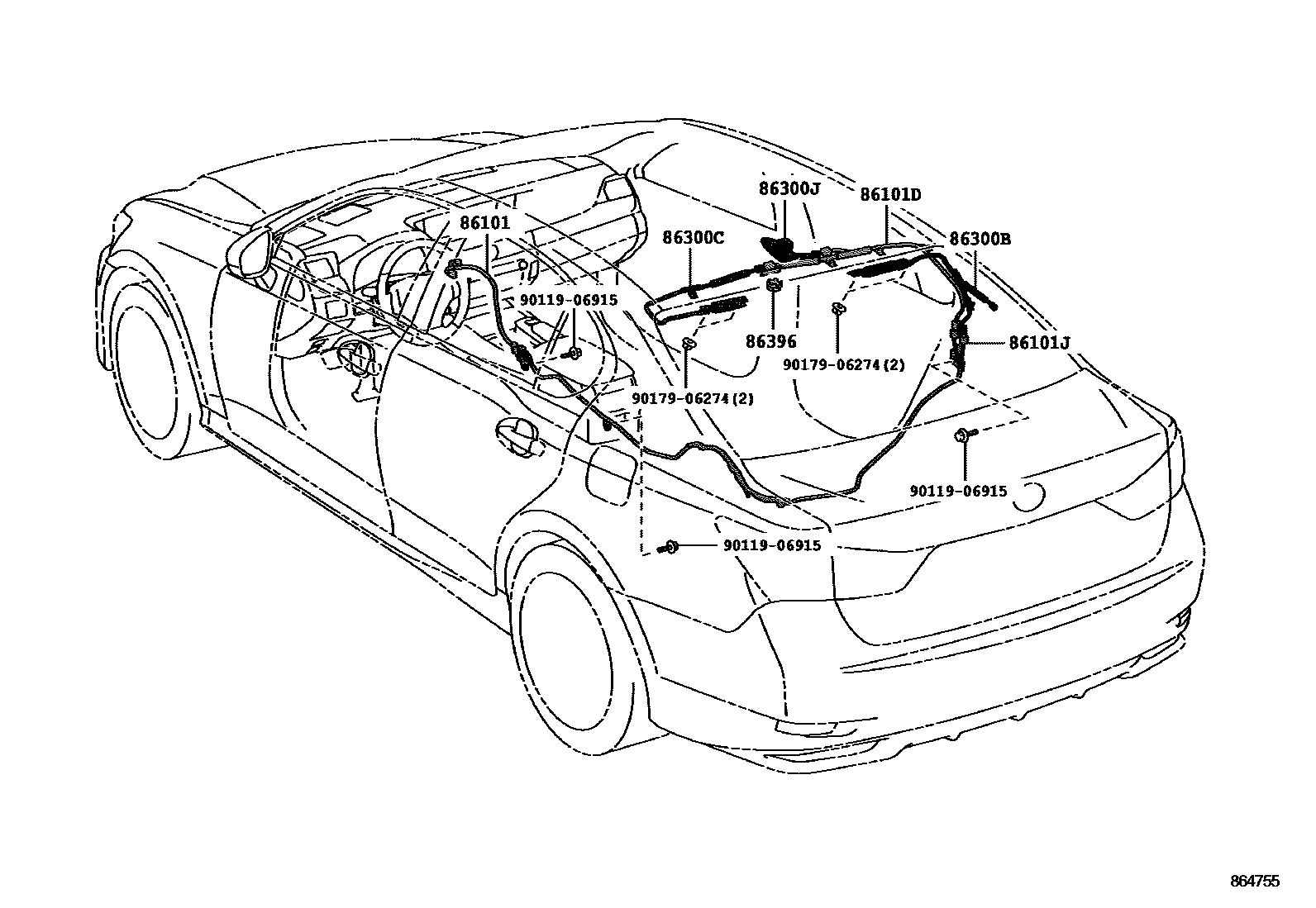

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-30L10iAWL10,GRL1#,GWL10201201-201409

main86101-30N20iAWL10,GRL1#,GWL10201409-201510

main86101-30P40iARL10,AWL10,GRL16,GWL10201510-201809

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-30G70iAWL10,GRL1#,GWL10201409-201809

main86101-30K10iAWL10,GRL1#,GWL10201201-201409

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30K50iAWL10,GRL1#,GWL10..LHD201201-201809

main86101-30K60iAWL10,GRL11,GWL10..RHD201203-201809

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30C60iAWL10,GRL1#,GWL10201201-201809

86300CANTENNA ASSY, AMPLIFIER, NO.2

main863C0-30010iAWL10,GRL1#,GWL10201201-201809

86300JANTENNA ASSY, ROOF

main86760-30220-A0iAWL10,GRL1#,GWL10201201-201409

WHITE PEARL CS.,077

main86760-30220-A1iAWL10..STD;GRL11,GWL10..RHD..STD201309-201409

WHITE NOVA GF.,083

main86760-30220-A1iGRL1#,GWL10..LHD..STD201309-201409

WHITE NOVA GF.,083 ,2MH

main86760-30220-B0iAWL10,GRL1#,GWL10201201-201409

MERCURY GRAY MC.,1H9

main86760-30220-B1iAWL10,GRL1#,GWL10201201-201409

SONIC SILVER,1J2

main86760-30220-C0iAWL10,GRL1#,GWL10201201-201409

BLACK,212

main86760-30220-C1iAWL10,GRL1#,GWL10201201-201409

BLACK OPAL MC.,214

main86760-30220-C2iAWL10,GRL1#,GWL10201201-201409

STARLIGHT BLACK GF.,217

main86760-30220-D0iAWL10,GRL1#,GWL10201201-201409

CRIMSON CS. GF.,3S8

main86760-30220-E0iGRL1#,GWL10201201-201309

SLEEK ECRU ME.,4U7

main86760-30220-E1iAWL10,GRL1#,GWL10201201-201409

FIRE AGATE M.M.,4V3

main86760-30220-J0iAWL10,GRL1#,GWL10201201-201409

LAPIS LAZULI MC.,8V3

main86760-30220-J1iAWL10,GRL1#,GWL10201201-201409

METEOR BLUE M.M.,8W3

main86760-53100iAWL10,GRL1#,GWL10201409-201809

86396NUT, ANTENNA

main86396-47010iAWL10,GRL1#,GWL10201201-201409

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 2 diagrams in section
