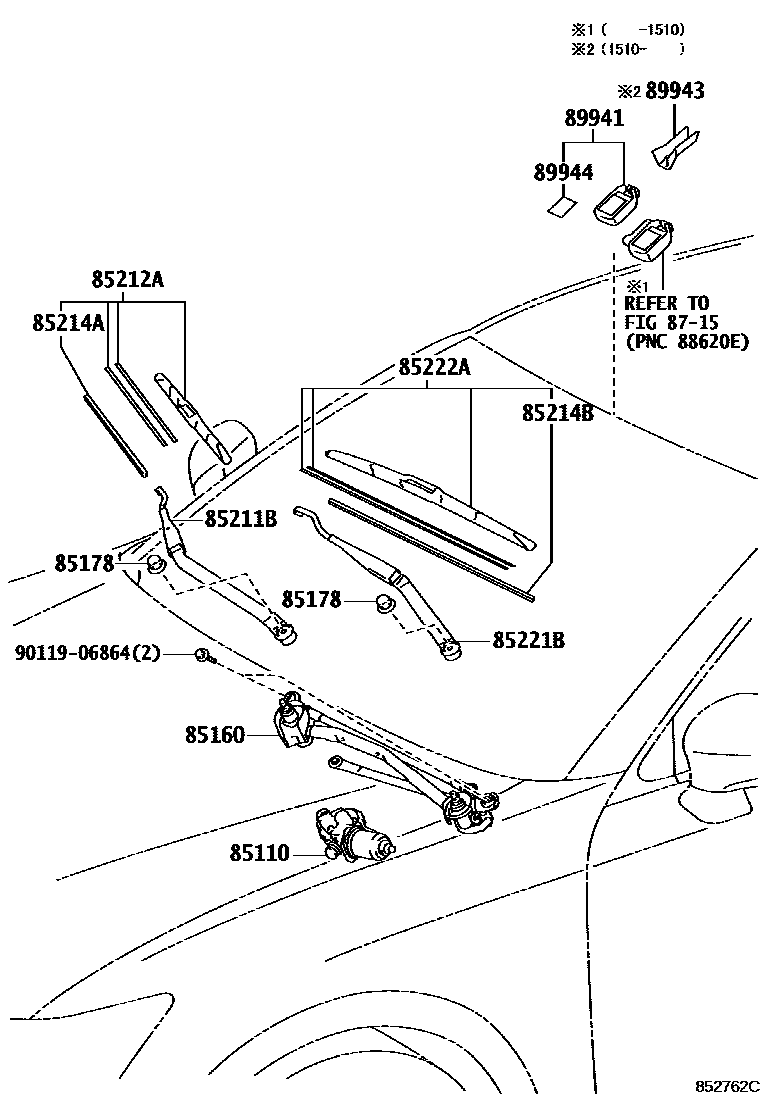

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30630iAWL10,GRL1#,GWL10..LHD201201-201409

main85110-30640iAWL10,GRL11,GWL10..RHD201203-201409

main85110-30700iARL10,AWL10,GRL16,GWL10..LHD201510-201809

main85110-30710iAWL10,GWL10..RHD201510-201809

85160LINK ASSY, WINDSHIELD WIPER

main85150-30740iARL10,AWL10,GRL16,GWL10..LHD201510-201809

main85150-30750iAWL10,GRL11,GWL10..RHD201203-201510

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iAWL10,GRL1#,GWL10201201-201510

85211BARM, FRONT WIPER, RH

main85211-30790iAWL10,GRL1#,GWL10..LHD201201-201510

main85211-30810iAWL10,GRL11,GWL10..RHD201203-201510

85212ABLADE, FR WIPER, RH

main85212-30470iAWL10,GRL11,GWL10..RHD201203-201510

main85212-30480iAWL10,GRL1#,GWL10..LHD201201-201510

85214ARUBBER, WIPER, RH

main85214-33180iAWL10,GRL1#,GWL10..LHD201201-201510

main85214-52110iAWL10,GRL11,GWL10..RHD201211-201510

main85214-68020iGRL11,GWL10..RHD201203-201210

85214BRUBBER, WIPER, LH

main85214-33180iAWL10,GRL11,GWL10..RHD201203-201510

main85214-52110iAWL10,GRL1#,GWL10..LHD201211-201510

main85214-68020iGRL1#,GWL10..LHD201201-201210

85221BARM, FRONT WIPER, LH

main85221-30690iAWL10,GRL1#,GWL10..LHD201201-201510

main85221-30700iAWL10,GRL11,GWL10..RHD201203-201510

85222ABLADE, FR WIPER, LH

main85222-30650iAWL10,GRL1#,GWL10..LHD201201-201510

main85222-30660iAWL10,GWL10..RHD201510-201809

8715

89941SENSOR, RAIN

main89941-30030iGRL15201201-201510

main89941-52010iGRL16201510-201809

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-33050iGRL16201510-201809

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42010iGRL15201201-201510

9011906864

main90119-06864

14 parts on this diagram · 2 diagrams in section
