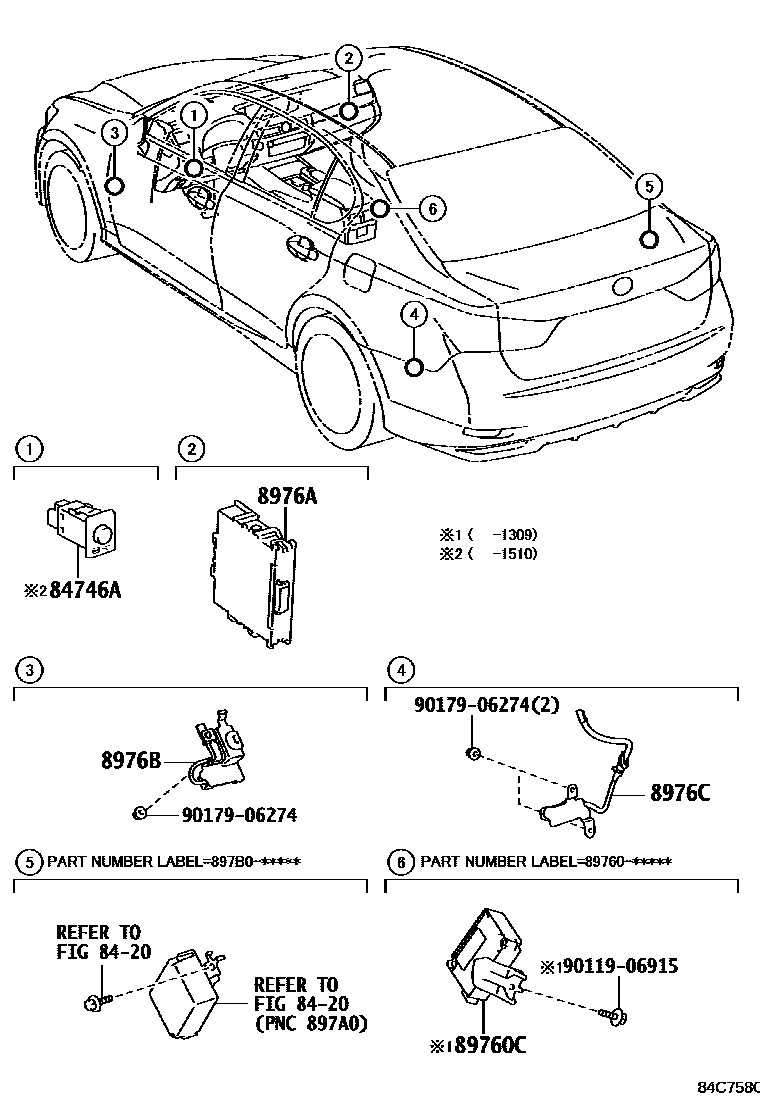

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

8420

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-50010iAWL10,GRL1#,GWL10201201-201510

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-30060iGRL1#,GWL10201201-201301

sub89760-30061

main89760-30061iGRL1#,GWL10201302-201309

main89760-30070iGRL1#201201-201301

SPARE TIRE-GROUND TIRE

sub89760-30071

main89760-30071iGRL1#201302-201309

SPARE TIRE-GROUND TIRE

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ANDORRA SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ANDORRA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ITALY SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

SPAIN SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

CANARY ISLANDS SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

PORTUGAL SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

BENELUX SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

NORDIC SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ICELAND SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

GREECE SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

GREECE SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

SWITZERLAND SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

AUSTRIA SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

BALTIC SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ROMANIA,BULGARIA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T155/70D17)

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ROMANIA,BULGARIA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ADRIA(SLOVENIA) SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

CROATIA SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

ALBANIA SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11..LHD201203-201304

MALTA SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11..LHD201203-201304

CYPRUS SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11..LHD201203-201304

IRELAND SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11..LHD201203-201304

UNITED KINGDOM SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

MONACO SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

REUNION SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

FRANCE SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

GERMANY SPEC&VERSION L

sub89760-30081

main89760-30080iGRL11,GWL10..LHD..STD201203-201304

MALTA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

sub89760-30081

main89760-30080iGRL1#,GWL10..LHD..STD201201-201304

KAZAKHSTAN SPEC&VERSION L

sub89760-30081

main89760-30080iGRL1#,GWL10..LHD..STD201201-201304

UKRAINE SPEC&VERSION L

sub89760-30081

main89760-30080iGRL1#,GWL10..LHD..STD201201-201304

RUSSIA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,STEEL)

sub89760-30081

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ADRIA(SLOVENIA) SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

UKRAINE SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

CROATIA SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

KAZAKHSTAN SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ALBANIA SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

UNITED KINGDOM SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

IRELAND SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

CYPRUS SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

MALTA SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

MALTA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

GERMANY SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

FRANCE SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

REUNION SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

MONACO SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ANDORRA SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ANDORRA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ITALY SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

SPAIN SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

CANARY ISLANDS SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

PORTUGAL SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

BENELUX SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

NORDIC SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ICELAND SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

GREECE SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

GREECE SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

SWITZERLAND SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

AUSTRIA SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

BALTIC SPEC&VERSION L

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ROMANIA,BULGARIA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T155/70D17)

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

ROMANIA,BULGARIA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM)

main89760-30081iGRL11,GWL10..LHD..STD201304-201309

RUSSIA SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,STEEL)

main89760-30090iGRL11,GWL10..LHD..STD201203-201309

ISRAEL SPEC&VERSION L&SPARE TIRE-TEMPORARY(T145/70D18,STEEL)

main89760-30100iGRL11..LHD201203-201304

REUNION SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

UNITED KINGDOM SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

IRELAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

CYPRUS SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

MALTA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

GERMANY SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

FRANCE SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

MONACO SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

ANDORRA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

ITALY SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

SPAIN SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

CANARY ISLANDS SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

PORTUGAL SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

BENELUX SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

NORDIC SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

ICELAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

GREECE SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

SWITZERLAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

AUSTRIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

BALTIC SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

ROMANIA,BULGARIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

ADRIA(SLOVENIA) SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

CROATIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL11..RHD201203-201304

ALBANIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL1#..LHD201201-201304

RUSSIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL1#..LHD201201-201304

UKRAINE SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30100iGRL1#..LHD201201-201304

KAZAKHSTAN SPEC&VERSION L&SPARE TIRE-GROUND TIRE

sub89760-30101

main89760-30101iGRL11..LHD201304-201309

MALTA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

UNITED KINGDOM SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

IRELAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

CYPRUS SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

GERMANY SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

FRANCE SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

REUNION SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

MONACO SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

ANDORRA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

ITALY SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

SPAIN SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

CANARY ISLANDS SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

PORTUGAL SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

BENELUX SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

NORDIC SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

ICELAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

GREECE SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

SWITZERLAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

AUSTRIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

BALTIC SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

ROMANIA,BULGARIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

ADRIA(SLOVENIA) SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

RUSSIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

UKRAINE SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

CROATIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

KAZAKHSTAN SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30101iGRL11..RHD201304-201309

ALBANIA SPEC&VERSION L&SPARE TIRE-GROUND TIRE

main89760-30110iGRL11..LHD201203-201309

ISRAEL SPEC&VERSION L&SPARE TIRE-GROUND TIRE

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-30010iGRL11,GWL10..RHD..STD201203-201309

CYPRUS SPEC&VERSION L

sub8976A-30012

main8976A-30010iGRL11,GWL10..RHD..STD201203-201309

MALTA SPEC&VERSION L

sub8976A-30012

main8976A-30010iGRL11,GWL10..RHD..STD201203-201309

IRELAND SPEC&VERSION L

sub8976A-30012

main8976A-30010iGRL11,GWL10..RHD..STD201203-201309

UNITED KINGDOM SPEC&VERSION L

sub8976A-30012

main8976A-30011iAWL10,GRL11,GWL10..RHD..STD201309-201505

IRELAND SPEC&VERSION L

sub8976A-30012

main8976A-30011iAWL10,GRL11,GWL10..RHD..STD201309-201505

CYPRUS SPEC&VERSION L

sub8976A-30012

main8976A-30011iAWL10,GRL11,GWL10..RHD..STD201309-201505

MALTA SPEC&VERSION L

sub8976A-30012

main8976A-30011iAWL10,GRL11,GWL10..RHD..STD201309-201505

UNITED KINGDOM SPEC&VERSION L

sub8976A-30012

main8976A-30012iAWL10,GRL11,GWL10..RHD..STD201506-201510

CYPRUS SPEC&VERSION L

sub8976A-30013

main8976A-30012iAWL10,GRL11,GWL10..RHD..STD201506-201510

IRELAND SPEC&VERSION L

sub8976A-30013

main8976A-30012iAWL10,GRL11,GWL10..RHD..STD201506-201510

UNITED KINGDOM SPEC&VERSION L

sub8976A-30013

main8976A-30012iAWL10,GRL11,GWL10..RHD..STD201506-201510

MALTA SPEC&VERSION L

sub8976A-30013

main8976A-30012iAWL10,GWL10..RHD201510-201809

sub8976A-30013

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

FRANCE SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

GERMANY SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

ALBANIA SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

KAZAKHSTAN SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

ISRAEL SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

UKRAINE SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

RUSSIA SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

ADRIA(SLOVENIA) SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

ROMANIA,BULGARIA SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

BALTIC SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

AUSTRIA SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

SWITZERLAND SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

GREECE SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

ICELAND SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

NORDIC SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

BENELUX SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

PORTUGAL SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

CANARY ISLANDS SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

SPAIN SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

ITALY SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

ANDORRA SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

MONACO SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201505

REUNION SPEC&VERSION L

sub8976A-33030

main8976A-30030iAWL10,GRL11,GWL10..LHD..STD201309-201409

CROATIA SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

ANDORRA SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL1#,GWL10..LHD..STD201201-201309

RUSSIA SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL1#,GWL10..LHD..STD201201-201309

UKRAINE SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL1#,GWL10..LHD..STD201201-201309

KAZAKHSTAN SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

GERMANY SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

FRANCE SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

REUNION SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

MONACO SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

ITALY SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

SPAIN SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

CANARY ISLANDS SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

PORTUGAL SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

BENELUX SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

NORDIC SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

ICELAND SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

GREECE SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

SWITZERLAND SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

AUSTRIA SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

BALTIC SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

ROMANIA,BULGARIA SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

ADRIA(SLOVENIA) SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

CROATIA SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

ISRAEL SPEC&VERSION L

sub8976A-33030

main8976A-33010iGRL11,GWL10..LHD..STD201203-201309

ALBANIA SPEC&VERSION L

sub8976A-33030

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

FRANCE SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

REUNION SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

MONACO SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

ANDORRA SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

ITALY SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

SPAIN SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

CANARY ISLANDS SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

PORTUGAL SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

BENELUX SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

NORDIC SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

ICELAND SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

GREECE SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

SWITZERLAND SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

AUSTRIA SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

BALTIC SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

ROMANIA,BULGARIA SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

ADRIA(SLOVENIA) SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

RUSSIA SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

UKRAINE SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

ISRAEL SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

KAZAKHSTAN SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

ALBANIA SPEC&VERSION L

sub8976A-33032

main8976A-33030iAWL10,GRL11,GWL10..LHD..STD201506-201510

GERMANY SPEC&VERSION L

sub8976A-33032

main8976A-33030iARL10,AWL10,GRL16,GWL10..LHD201510-201809

sub8976A-33032

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-30010iAWL10,GRL1#,GWL10201201-201409

sub8976B-30011

main8976B-30011iAWL10,GRL1#,GWL10201410-201809

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-24010iAWL10,GRL11,GWL10..LHD..STD201403-201409

ANDORRA SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

UNITED KINGDOM SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

IRELAND SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

CYPRUS SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

MALTA SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

GERMANY SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

FRANCE SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

REUNION SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

MONACO SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

ITALY SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

SPAIN SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

CANARY ISLANDS SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

PORTUGAL SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

BENELUX SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

NORDIC SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

ICELAND SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

GREECE SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

SWITZERLAND SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

AUSTRIA SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

BALTIC SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

ROMANIA,BULGARIA SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

ADRIA(SLOVENIA) SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

RUSSIA SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

UKRAINE SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

CROATIA SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

ISRAEL SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

KAZAKHSTAN SPEC&VERSION L

sub8976C-24011

main8976C-24010iAWL10,GRL11,GWL10..RHD..STD201403-201409

ALBANIA SPEC&VERSION L

sub8976C-24011

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

ICELAND SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

PORTUGAL SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

BENELUX SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

NORDIC SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

GREECE SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

SWITZERLAND SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

AUSTRIA SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

BALTIC SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

ROMANIA,BULGARIA SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

ADRIA(SLOVENIA) SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

RUSSIA SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

UKRAINE SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

ISRAEL SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

KAZAKHSTAN SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

ALBANIA SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

UNITED KINGDOM SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

IRELAND SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

CYPRUS SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

MALTA SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

GERMANY SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

FRANCE SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

REUNION SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

MONACO SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

ANDORRA SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

ITALY SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

SPAIN SPEC&VERSION L

main8976C-24011iAWL10,GRL11,GWL10..LHD..STD201410-201510

CANARY ISLANDS SPEC&VERSION L

main8976C-24011iARL10,AWL10,GRL16,GWL10201510-201809

main8976C-30010iAWL10,GRL11,GWL10..LHD..STD201203-201402

ALBANIA SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

UNITED KINGDOM SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

IRELAND SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

CYPRUS SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

MALTA SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

GERMANY SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

FRANCE SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

REUNION SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

MONACO SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

ANDORRA SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

ITALY SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

SPAIN SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

CANARY ISLANDS SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

PORTUGAL SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

BENELUX SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

NORDIC SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

ICELAND SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

GREECE SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

SWITZERLAND SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

AUSTRIA SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

BALTIC SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

ROMANIA,BULGARIA SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

ADRIA(SLOVENIA) SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

CROATIA SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL11,GWL10..RHD..STD201203-201402

ISRAEL SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL1#,GWL10..LHD..STD201201-201402

RUSSIA SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL1#,GWL10..LHD..STD201201-201402

UKRAINE SPEC&VERSION L

sub8976C-24010

main8976C-30010iAWL10,GRL1#,GWL10..LHD..STD201201-201402

KAZAKHSTAN SPEC&VERSION L

sub8976C-24010

9011906915

main90119-06915

9017906274

main90179-06274

8 parts on this diagram · 2 diagrams in section
