ELECTRONIC MODULATED SUSPENSION

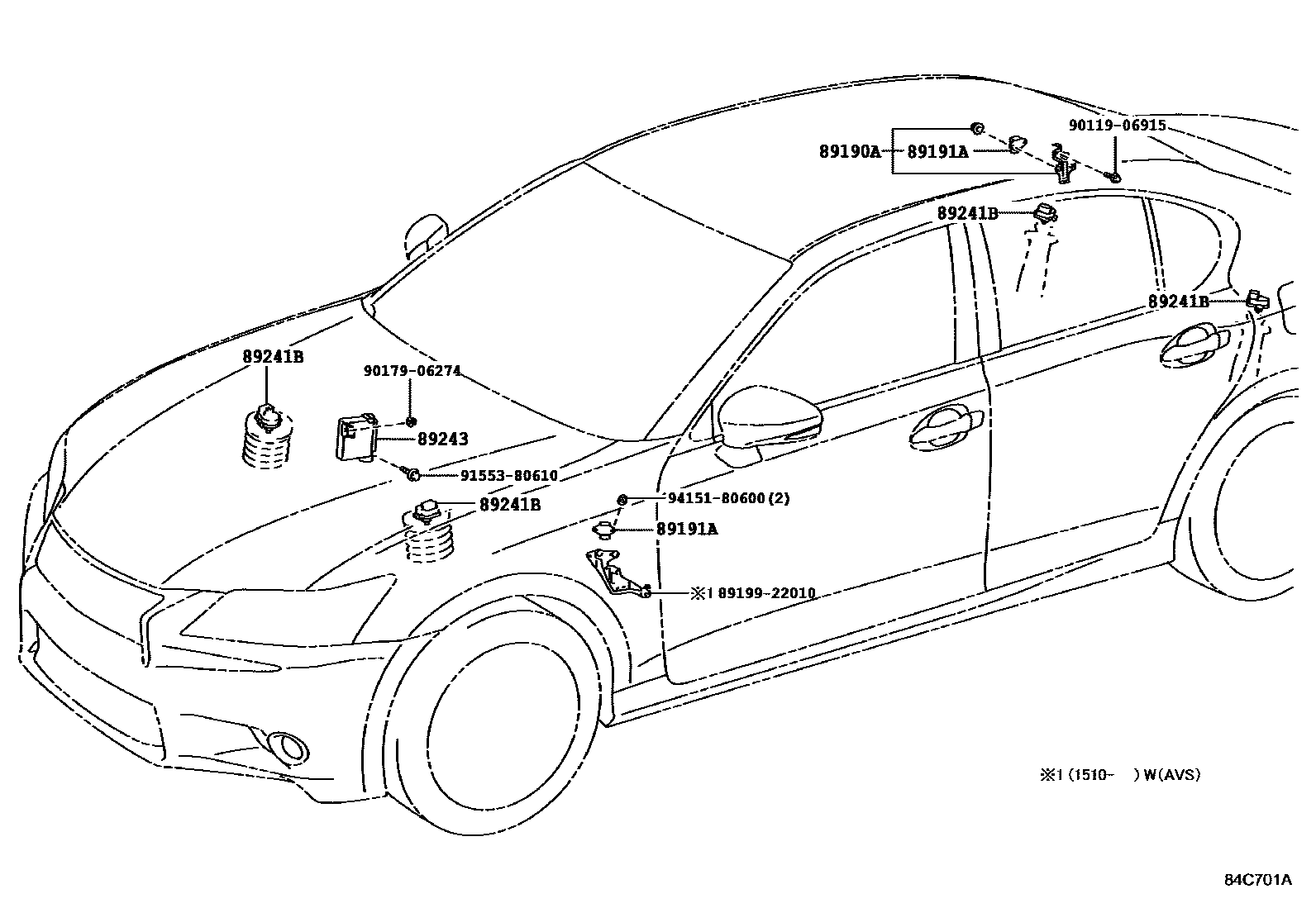

Parts diagram

89190ASENSOR ASSY, ACCELERATION

89191ASENSOR, ACCELERATION

89241BACTUATOR, ABSORBER CONTROL

89243COMPUTER, ABSORBER CONTROL

main89243-30140

main89243-30200

main89243-30201

main89243-30202

main89243-30210

main89243-30211

main89243-30220

main89243-30221

main89243-30222

8919922010

main89199-22010

9011906915

main90119-06915

9017906274

main90179-06274

9155380610

main91553-80610

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
