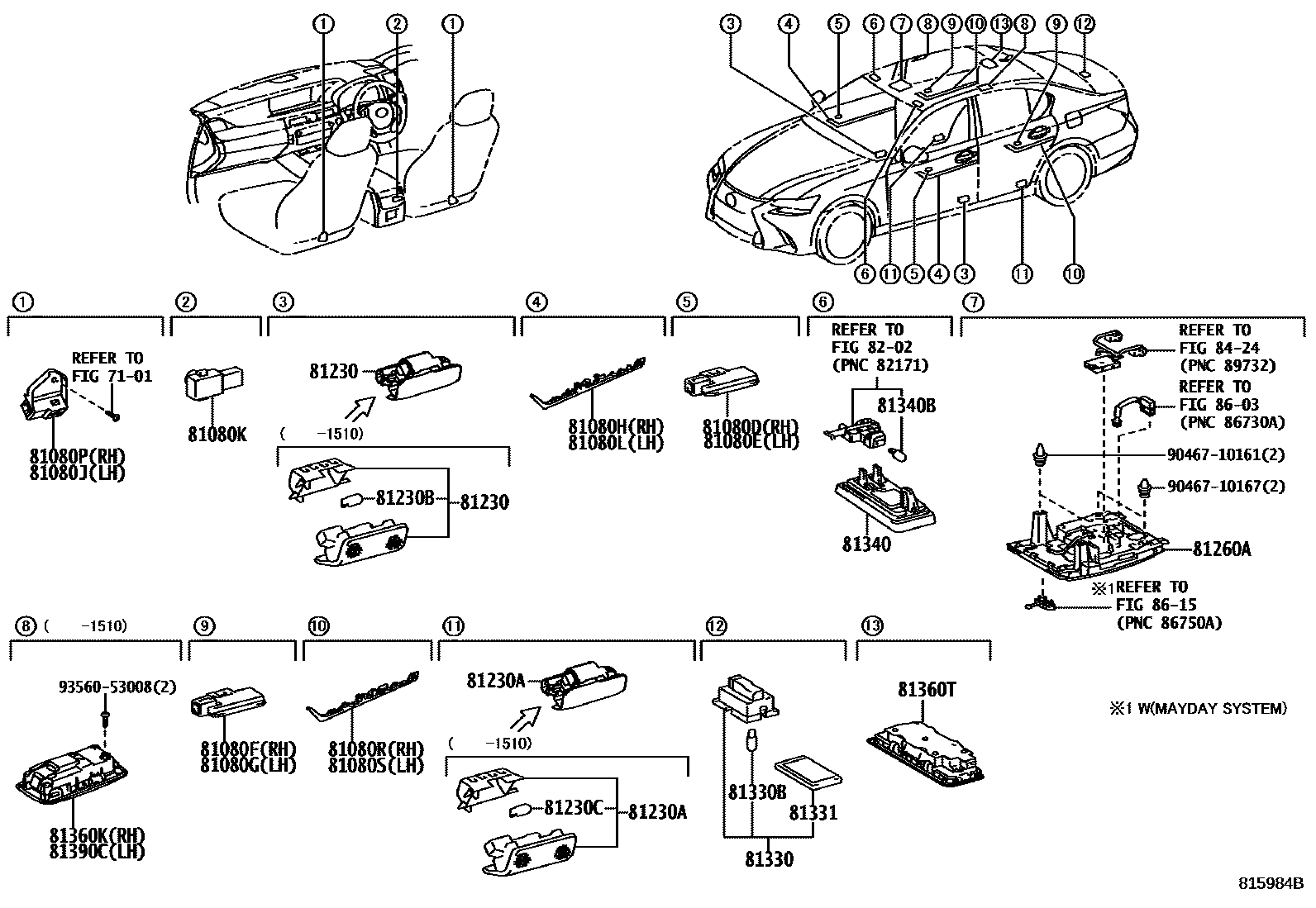

INTERIOR LAMP
7101
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
81230ALAMP ASSY, COURTESY, NO.2
81230BBULB(FOR COURTESY LAMP)
12V 5W
81230CBULB(FOR COURTESY LAMP NO.2)
12V 5W
81260ALAMP ASSY, MAP
IVORY,TRIM00,01,03,50,51
IVORY,TRIM00,01,02,03,50,51,52
IVORY,TRIM00,01,02,03,50,51,52,53
IVORY,TRIM0#
LT.GRAY,TRIM1#,20,21,22,23,4#
LT.GRAY,TRIM1#,20,21,23,4#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM04,05,24,25,3#,54,55
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81360KLAMP ASSY, SPOT, RH
IVORY,TRIM0#
IVORY,TRIM00,01,02,03,50,51,52,53
IVORY,TRIM00,01,02,03,50,51,52
LT.GRAY,TRIM1#,20,21,22,23,4#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
81360TLAMP ASSY, SPOT
81390CLAMP ASSY, SPOT, LH
IVORY,TRIM0#
IVORY,TRIM00,01,02,03,50,51,52,53
IVORY,TRIM00,01,02,03,50,51,52
LT.GRAY,TRIM1#,20,21,22,23,4#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
8202
8424
8603
8615
9046710161
main90467-10161
9046710167
main90467-10167
9356053008
main93560-53008
32 parts on this diagram · 1 diagram in section
