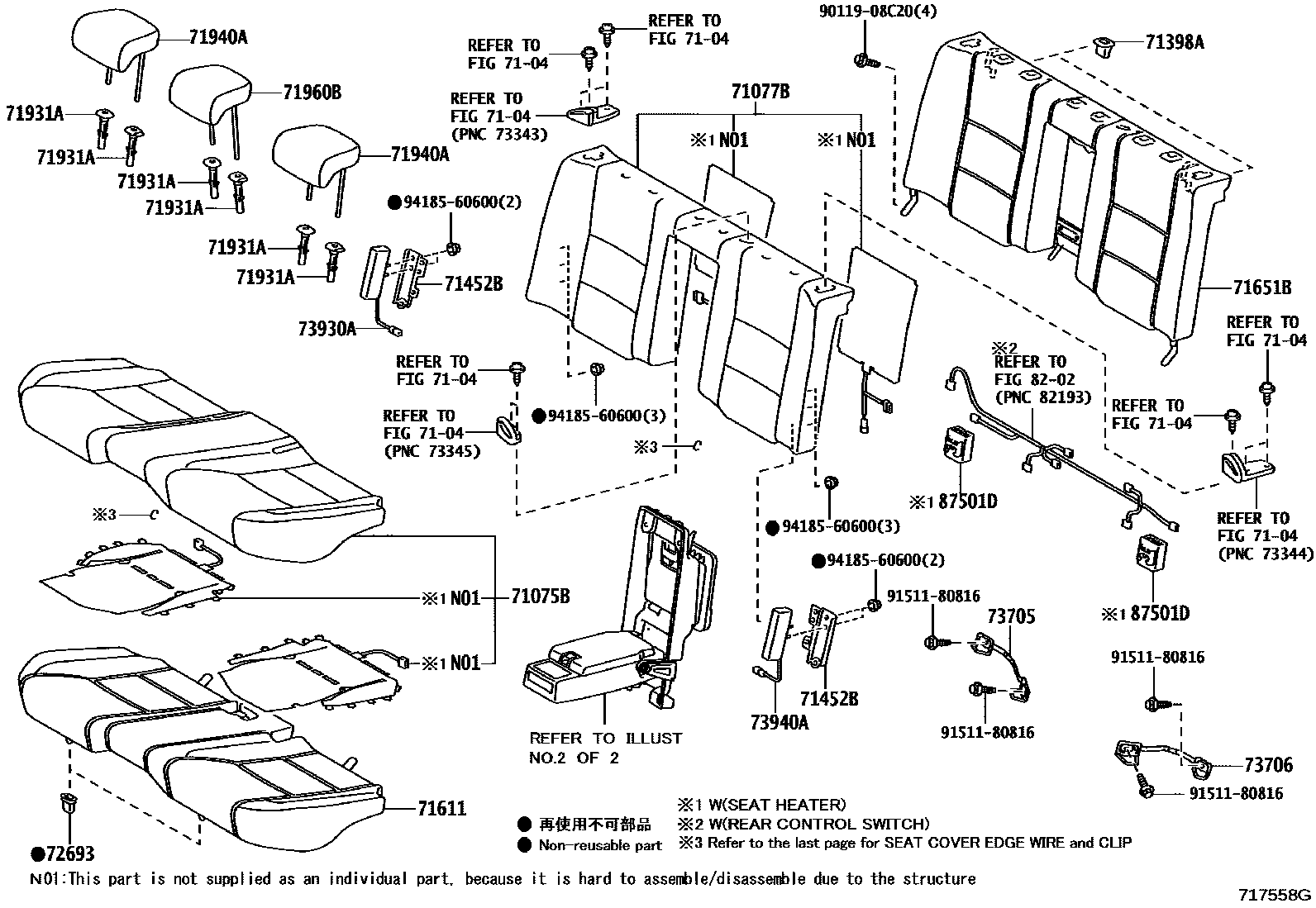

REAR SEAT & SEAT TRACK
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
CHATEAU,TRIM1#
BLACK,TRIM2#
CHATEAU,TRIM1#
BLACK,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
71398AHOLDER, REAR SEATBACK
71452BBRACKET, REAR SEATBACK
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK)&W(BUTTON),BLACK,TRIM2#
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TR
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN
W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#
W(LOCK)&W(BUTTON),BLACK,TRIM2#,3#,4#,5#
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM
W(LOCK)&W(BUTTON),F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#,3#,4#,5#
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#,4#,5#
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#,4#,5#
W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,3#,4#,5#
W(LOCK)&W(BUTTON),BLACK,TRIM0#,1#,2#
W(LOCK)&W(BUTTON),F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM0#,2#,3#,5#,6#
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM0#,1#,2#,5#,6#
W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM0#,2#,3#,5#,6#
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
W(LOCK)&W/O(BUTTON),F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#,3#,4#,5#
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEATADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#,4#,5#
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEATADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#,4#,5#
W(LOCK)&W/O(BUTTON),SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,3#,4#,5#
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,3#,4#,5#
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TR
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOM
W(LOCK)&W/O(BUTTON),BLACK,TRIM0#,1#,2#
W(LOCK)&W/O(BUTTON),F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM0#,2#,3#,5#,6#
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEATADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM0#,1#,2#,5#,6#
W(LOCK)&W/O(BUTTON),SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM0#,2#,3#,5#,6#
71940AHEADREST ASSY, REAR SEAT
CHATEAU,TRIM1#
BLACK,TRIM2#
CHATEAU,TRIM1#
BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
CHATEAU,TRIM1#
BLACK,TRIM2#
CHATEAU,TRIM1#
BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73930AAIRBAG ASSY, REAR SEAT, RH
73940AAIRBAG ASSY, REAR SEAT, LH
8202
87501DCONTROL SUB-ASSY, SEAT HEATER
9011908C20
9151180816
9418560600
20 parts on this diagram · 4 diagrams in section
