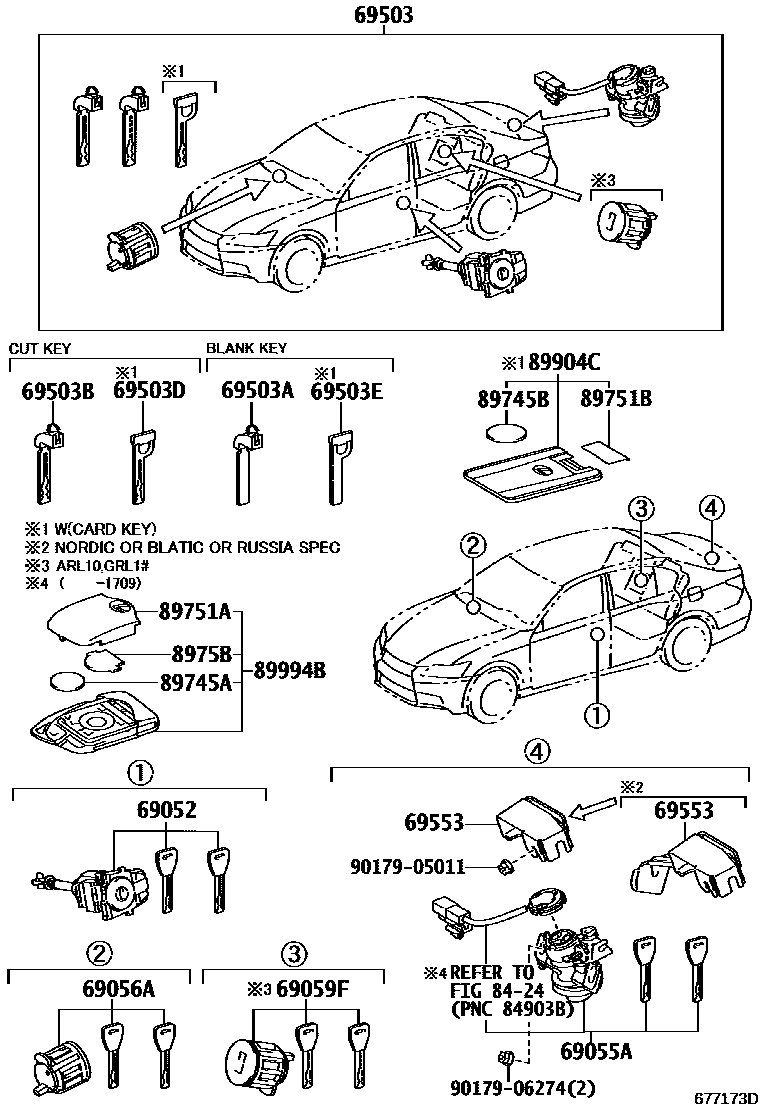

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30340iARL10,AWL10,GRL16,GWL10..LHD201201-201809

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30480iARL10,AWL10,GRL16,GWL10¥11,300201201-201709

main69055-33540iARL10,AWL10,GRL16,GWL10201709-201809

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iARL10,AWL10,GRL16,GWL10¥7,100201201-201809

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-50160iGRL1#¥7,100201201-201809

69503CYLINDER SET, LOCK

main69005-30D30iGRL11..RHD201203-201510

sub69005-30J20

main69005-30E50iGRL1#..LHD201201-201709

sub69005-30G30

main69005-30E51iARL10,GRL16201709-201809

sub69005-30G31

main69005-30F80iAWL10,GWL10..LHD201203-201709

main69005-30F81iAWL10,GWL10..LHD201709-201809

main69005-30F90iAWL10,GWL10..RHD201203-201709

main69005-30F91iAWL10,GWL10..RHD201709-201809

69503AKEY, BLANK

main69515-30380iAWL10,GRL1#,GWL10¥6,500201201-201809

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370iAWL10,GRL1#,GWL10¥7,100201201-201809

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-30350iAWL10,GRL1#,GWL10¥6,500201201-201809

MASTER KEY

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iAWL10,GWL10..RHD¥610201510-201809

TYPE A:REFER ILLUST.

main69553-30010iAWL10,GRL1#,GWL10..LHD¥610201201-201510

main69553-30010iARL10,AWL10,GRL16,GWL10..LHD¥610201510-201809

CYPRUS SPEC,TYPE A:REFER ILLUST.

main69553-30020iAWL10,GRL11,GWL10..LHD201203-201405

BALTIC SPEC

sub69553-30021¥770

main69553-30020iAWL10,GRL11,GWL10..RHD201203-201405

NORDIC SPEC

sub69553-30021¥770

main69553-30021iAWL10,GRL1#,GWL10..LHD..STD¥770201406-201809

BALTIC SPEC

main69553-30021iAWL10,GRL11,GWL10..RHD¥770201406-201809

NORDIC SPEC

main69553-30021iAWL10,GRL11,GWL10..RHD¥770201406-201809

RUSSIA SPEC

8424

89745ABATTERY, TRANSMITTER

main89745-50020iGRL1#¥440201201-201809

CR2032

89745BBATTERY, TRANSMITTER(CARD KEY)

89751ACOVER, TRANSMITTER HOUSING

main89751-30290iGRL1#201201-201510

main89751-30300iAWL10,GWL10201203-201510

main89751-48290iARL10,GRL16201510-201809

ISRAEL,TURKEY SPEC

main89751-48290iARL10,GRL16201510-201809

GEORGIA SPEC

main89751-48290iARL10,GRL16201510-201809

GEORGIA SPEC&SPARE TIRE-GROUND TIRE

main89751-48370iAWL10,GWL10201510-201809

ISRAEL,TURKEY SPEC

main89751-48370iAWL10,GWL10201510-201809

GEORGIA SPEC

main89751-48370iAWL10,GWL10201510-201809

GEORGIA SPEC&SPARE TIRE-TEMPORARY(T145/70D18,STEEL)

89751BCOVER, TRANSMITTER HOUSING

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iAWL10,GRL1#,GWL10¥80201201-201510

main8975B-33010iARL10,AWL10,GRL16,GWL10¥80201510-201809

ISRAEL,TURKEY SPEC

main8975B-33010iARL10,AWL10,GRL16,GWL10¥80201510-201809

GEORGIA SPEC

main8975B-33010iARL10,AWL10,GRL16,GWL10¥80201510-201809

GEORGIA SPEC&SPARE TIRE-TEMPORARY(T145/70D18,STEEL)

main8975B-33010iARL10,AWL10,GRL16,GWL10¥80201510-201809

GEORGIA SPEC&SPARE TIRE-GROUND TIRE

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

89994BTRANSMITTER, ELECTRICAL KEY

main89904-30B50iGRL1#¥26,400201201-201510

main89904-30B60iAWL10,GWL10201203-201510

main89904-30J40iARL10,GRL16201510-201809

main89904-30K70iAWL10,GWL10201510-201809

9017905011

main90179-05011¥80

9017906274

main90179-06274¥70

20 parts on this diagram · 2 diagrams in section
