MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,5#,6#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
58621GPAD, FRONT FLOOR SILENCER, RH
58624CPAD, CENTER FLOOR SILENCER, RH
58625CPAD, CENTER FLOOR SILENCER, LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
6213530020FRAME, REAR SIDE WINDOW
9016840061

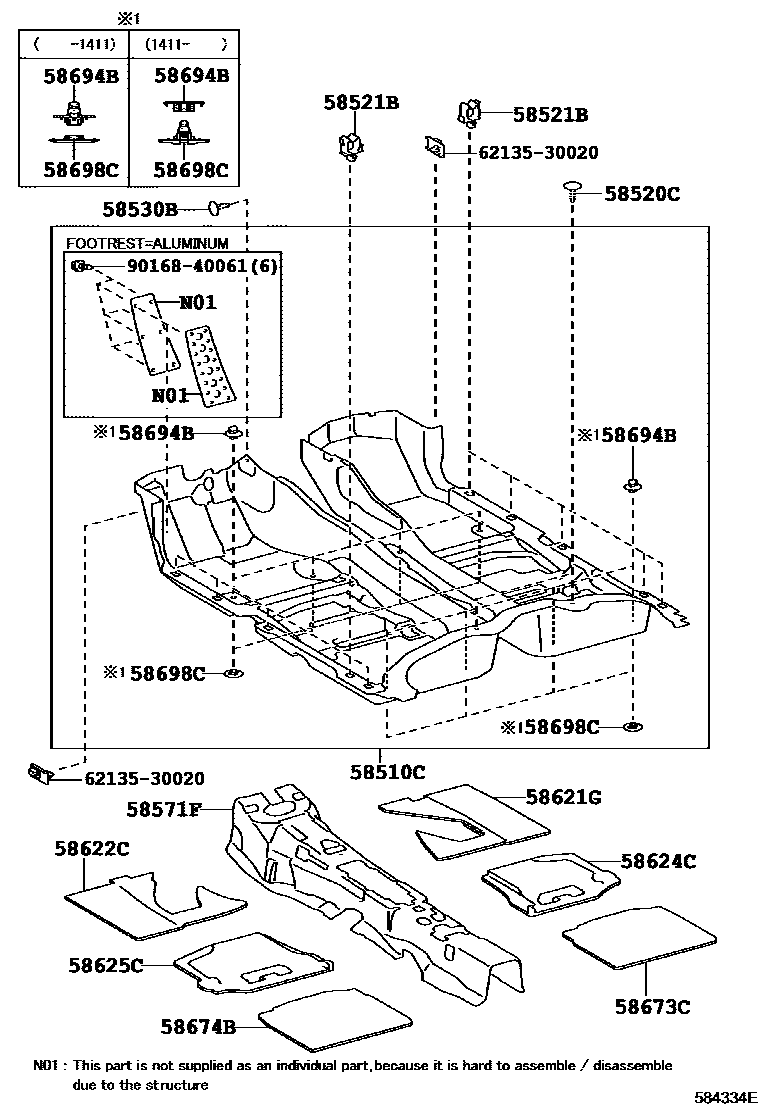

15 parts on this diagram · 3 diagrams in section
