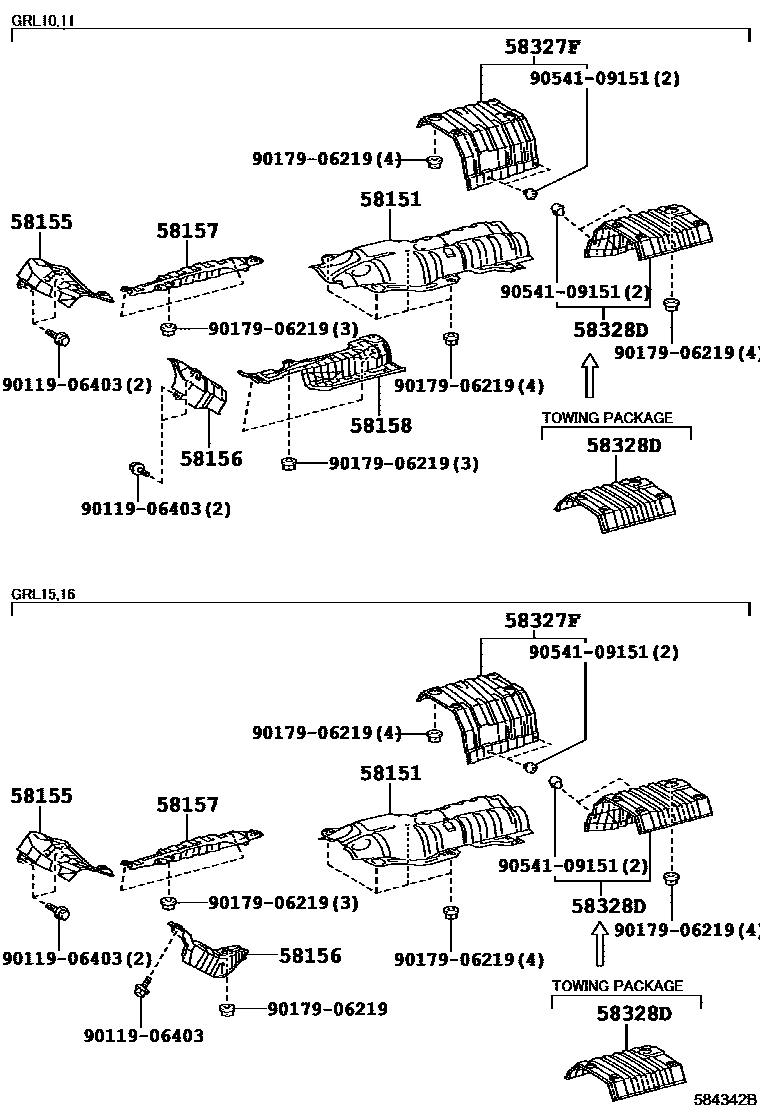

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30200iGRL11,GWL10201203-201304

sub58151-30201

main58151-30201iAWL10,GRL11,GWL10201305-201809

main58151-30210iGRL16201201-201809

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30060iGRL16201510-201809

main58155-30070iGWL10201201-201809

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30090iGRL15201201-201809

main58156-30100iGRL11,GWL10201203-201809

main58156-30140iAWL10201309-201809

main58156-30160iARL10201510-201809

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30073iGRL16,GWL10201201-201809

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30070iGRL11,GWL10201203-201809

main58158-30080iAWL10201309-201809

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-30060iARL10,AWL10,GRL16,GWL10201201-201809

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30040iGRL1#201201-201809

main58328-30050iAWL10,GWL10201203-201809

main58328-30060iARL10201510-201809

TOWING PACKAGE-1000KG

9011906403

main90119-06403

9017906219

main90179-06219

9054109151

main90541-09151

10 parts on this diagram · 3 diagrams in section
