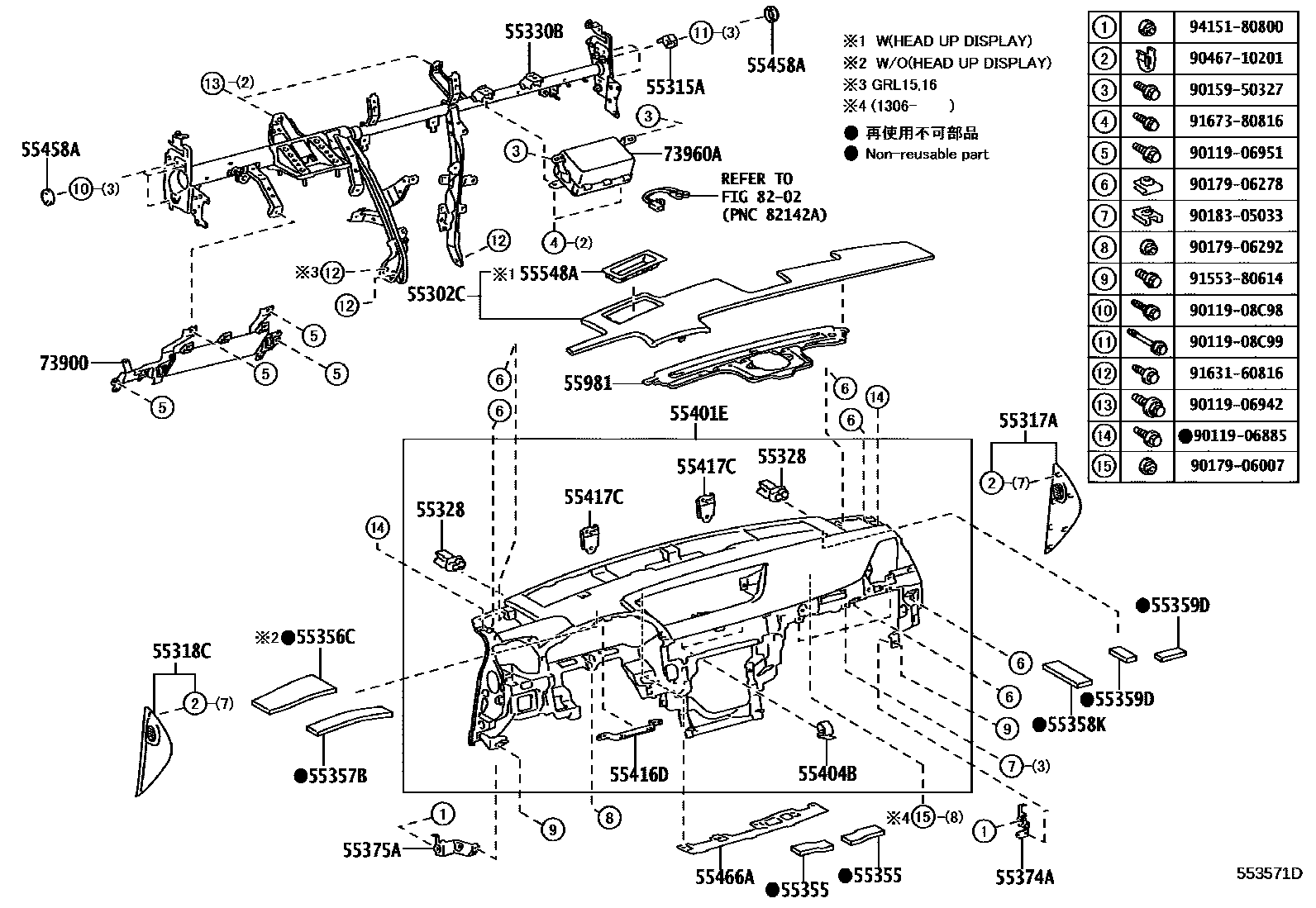

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302CPANEL SUB-ASSY, INSTRUMENT
BLACK/ECRU,TRIM0#
BLACK/ECRU,TRIM00,01,02,03,50,51,52
BLACK/LT.GRAY,TRIM04,05,06,1#,2#,3#,4#,54,55,56
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#
BLACK/LT.GRAY,TRIM1#,2#,4#
BLACK/RED,TRIM33
BLACK/IVORY,TRIM0#
BLACK/IVORY,TRIM00,01,02,03,50,51,52
BLACK/LT.GRAY NO.094,TRIM1#,2#,4#
BLACK/LT.GRAY NO.094,TRIM04,05,06,1#,2#,3#,4#,54,55,56
BLACK/LT.GRAY,TRIM0#,1#,2#,6#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#,6#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#,6#
BLACK/LT.GRAY,TRIM0#,1#,2#,6#
55315ASPACER, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,4#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,6#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,6#
55404BCLIP, SAFETY PAD SET
55416DBRACKET, INSTRUMENT PAD, NO.2
55417CBRACKET, INSTRUMENT PAD, NO.3
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
55548ACOVER, INSTRUMENT PANEL HOLE
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,6#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,6#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9011906885
main90119-06885
9011906942
main90119-06942
9011906951
main90119-06951
9011908C98
main90119-08C98
9011908C99
main90119-08C99
9015950327
main90159-50327
9017906007
main90179-06007
9017906278
main90179-06278
9017906292
main90179-06292
9018305033
main90183-05033
9046710201
main90467-10201
9155380614
main91553-80614
9163160816
main91631-60816
9167380816
main91673-80816
9415180800
main94151-80800
39 parts on this diagram · 14 diagrams in section
