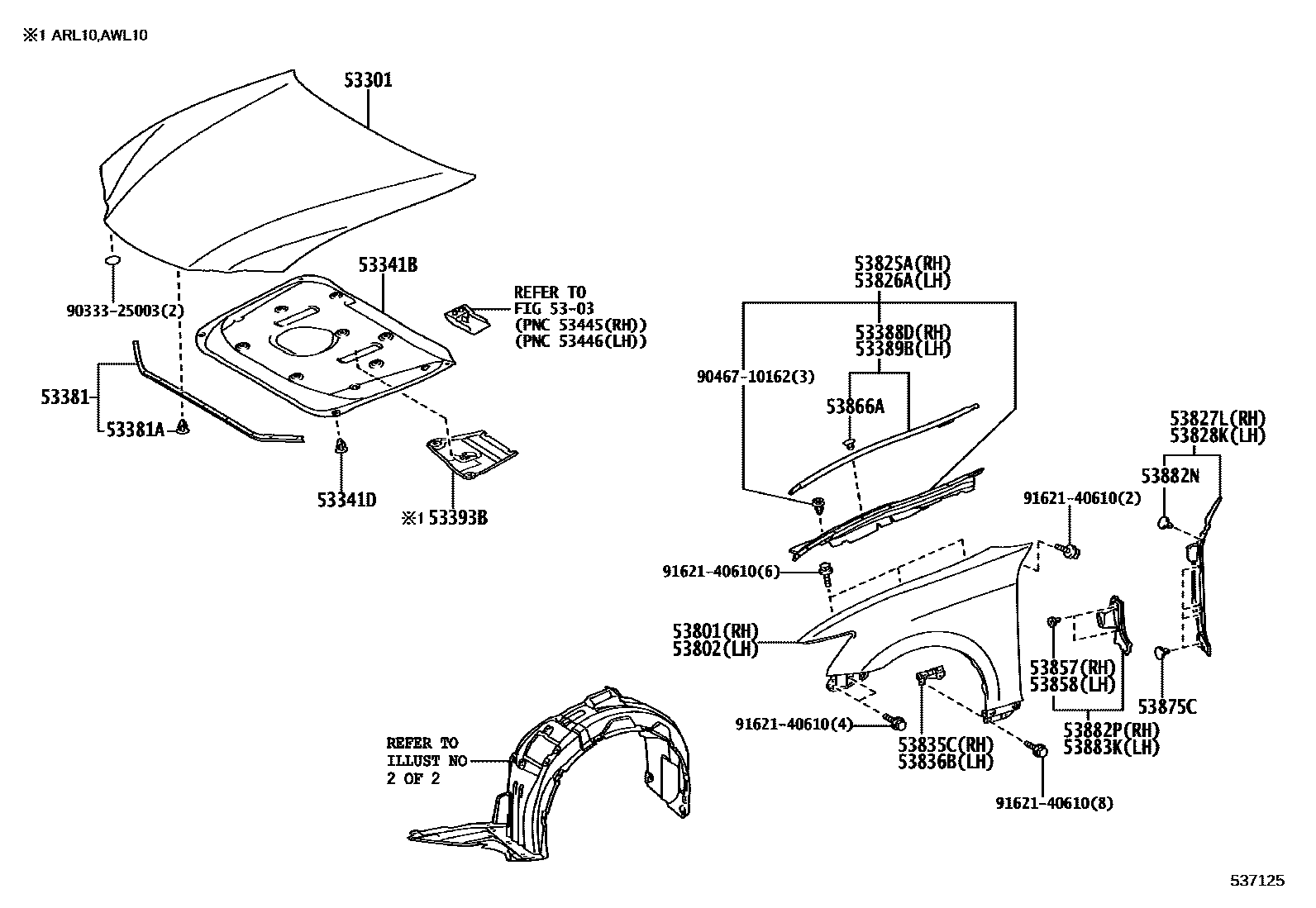

HOOD & FRONT FENDER
5303
53341DCLIP(FOR HOOD INSULATER)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53835CBRACKET, FRONT SIDE PANEL, RH
53836BBRACKET, FRONT SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
53875CCLIP, FRONT FENDER LINER
BLACK
53882NCLIP(FOR FRONT FENDER SEAL)
BLACK
53882PSEAL, FRONT FENDER, RH
53883KSEAL, FRONT FENDER, LH
9033325003
main90333-25003
9046710162
main90467-10162
9162140610
main91621-40610
27 parts on this diagram · 2 diagrams in section
