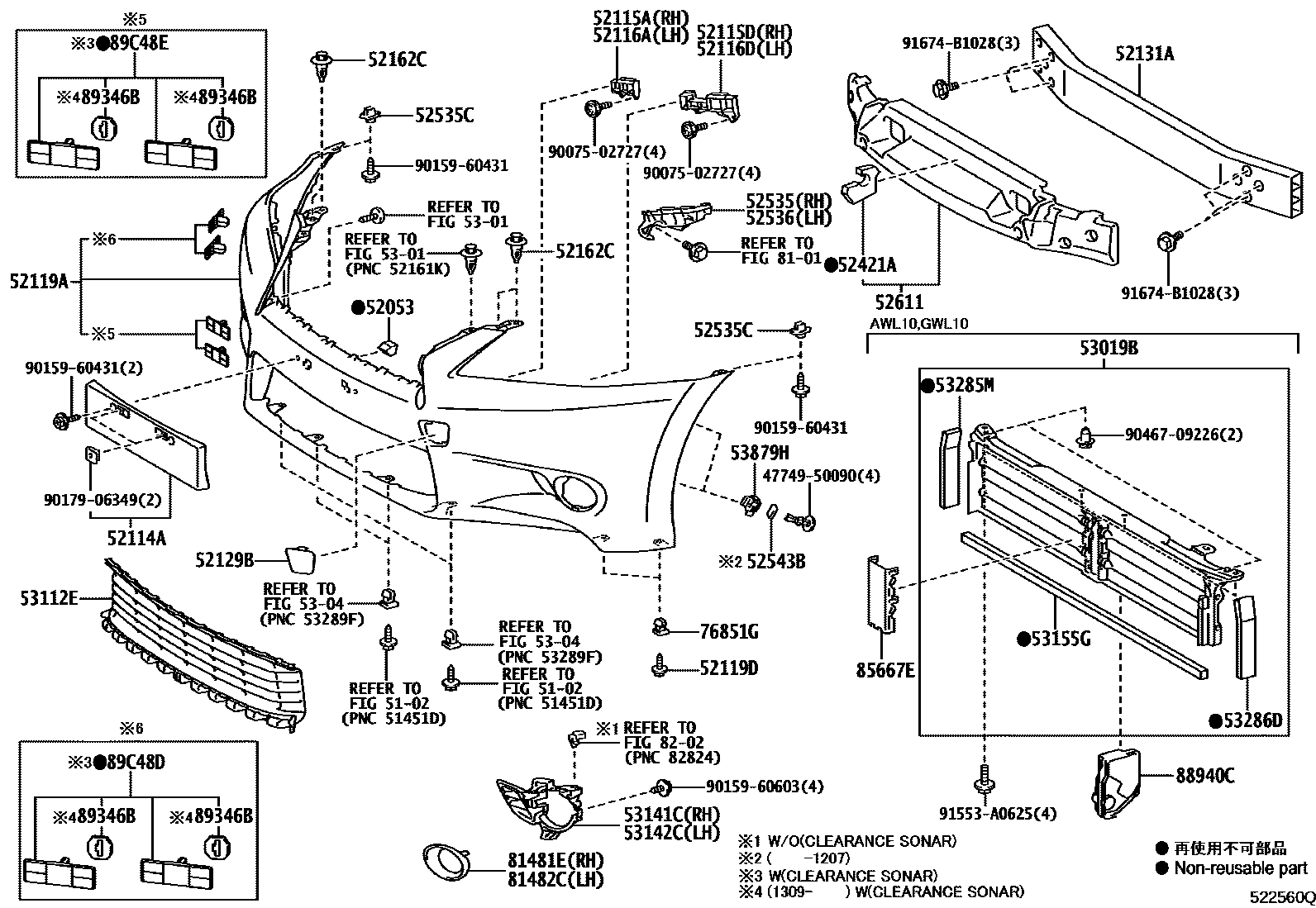

FRONT BUMPER & BUMPER STAY

0001 1 0002 1F-SPORT 0003 1BUMPER COVER 0004 1BUMPER REINFORCEMENT

5102

52053PAD SUB-ASSY, FRONT BUMPER

main52421-30110iAWL10,GRL1#,GWL10¥240201201-201510

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-30230iAWL10,GRL1#,GWL10¥4,630201201-201510

main52114-30270iARL10,AWL10,GRL16,GWL10201510-201809

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-30140iAWL10,GRL1#,GWL10¥1,280201201-201510

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-30150iAWL10,GRL1#,GWL10¥2,280201201-201510

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-30090iAWL10,GRL1#,GWL10¥1,280201201-201510

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52116-30100iAWL10,GRL1#,GWL10¥2,280201201-201510

52119ACOVER, FRONT BUMPER

main52119-3A931iGRL1#,GWL10201201-201309

PAINT REQ.

main52119-3A955iAWL10,GRL1#,GWL10201309-201510

PAINT REQ.

main52119-3F967iARL10,AWL10,GRL16,GWL10201510-201809

PAINT REQ.

52119DSCREW, NO.1

main90159-60477iAWL10,GRL1#,GWL10¥70201201-201809

52129BCOVER, FRONT BUMPER, LOWER

main52129-30907iAWL10,GRL1#,GWL10201201-201510

52131AREINFORCEMENT, FRONT BUMPER

main52131-30300iAWL10,GRL1#,GWL10¥28,700201201-201510

main52131-30360iARL10,AWL10,GRL16,GWL10¥23,900201510-201809

52162CPIECE, FRONT BUMPER

main52161-16010iAWL10,GRL1#,GWL10¥120201201-201809

sub52161-0K040¥120

52421APAD, FRONT BUMPER

main52421-30120iAWL10,GRL1#,GWL10¥320201201-201510

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30230iAWL10,GRL1#,GWL10¥2,930201201-201510

main52535-30270iARL10,AWL10,GRL16,GWL10¥2,440201510-201809

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iAWL10,GRL1#,GWL10¥210201201-201809

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30220iAWL10,GRL1#,GWL10¥2,930201201-201510

main52536-30260iARL10,AWL10,GRL16,GWL10¥2,440201510-201809

52543BSEAL, FRONT BUMPER

main52543-30120iGRL1#,GWL10¥160201201-201207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30420iAWL10,GRL1#,GWL10¥11,900201201-201510

main52611-30490iARL10,AWL10,GRL16,GWL10¥8,900201510-201809

5301

53019BSHUTTER SUB-ASSY, RADIATOR

main53019-30010iAWL10,GWL10¥18,400201203-201510

main53019-30040iAWL10,GWL10¥11,100201510-201809

TOWING PACKAGE-500KG

5304

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-30240iAWL10,GRL1#,GWL10¥12,800201201-201510

NO PAINT REQ.

53141CGARNISH, RADIATOR GRILLE

main53141-30160iAWL10,GRL1#,GWL10¥2,440201201-201510

main53141-30360iARL10,AWL10,GRL16,GWL10¥1,500201510-201809

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-30060iAWL10,GRL1#,GWL10¥2,330201201-201510

main53142-30160iARL10,AWL10,GRL16,GWL10¥1,500201510-201809

53155GSEAL, RADIATOR GRILLE

main53155-30060iAWL10,GWL10¥620201203-201510

main53155-30060iAWL10,GWL10¥620201510-201809

TOWING PACKAGE-500KG

53285MSEAL, RADIATOR SIDE AIR, RH

main53157-30020iAWL10,GWL10¥500201203-201510

main53157-30020iAWL10,GWL10¥500201510-201809

TOWING PACKAGE-500KG

53286DSEAL, RADIATOR SIDE AIR, LH

main53156-30010iAWL10,GWL10¥500201203-201510

main53156-30010iAWL10,GWL10¥500201510-201809

TOWING PACKAGE-500KG

53879HRETAINER, FRONT FENDER LINER

main53879-30040iGRL1#,GWL10¥320201201-201206

main53879-30050iAWL10,GRL1#,GWL10¥360201207-201610

main53879-30060iARL10,AWL10,GRL16,GWL10¥310201611-201809

76851GGROMMET, SCREW, NO.1

main90189-06193iAWL10,GRL1#,GWL10¥80201201-201809

8101

81481ECOVER, FOG LAMP, RH

main81481-30110iAWL10,GRL1#,GWL10¥2,950201201-201510

81482CCOVER, FOG LAMP, LH

main81482-30150iAWL10,GRL1#,GWL10¥2,950201201-201510

8202

85667ECOVER, MOTOR

main85667-30030iAWL10,GWL10¥1,260201203-201510

main85667-30030iAWL10,GWL10¥1,260201510-201809

TOWING PACKAGE-500KG

88940CACTUATOR ASSY, SWING GRILLE

main88940-30100iAWL10,GWL10¥17,400201203-201510

main88940-30100iAWL10,GWL10¥17,400201510-201809

TOWING PACKAGE-500KG

89346BADJUSTER, ULTRASONIC SENSOR

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER

4774950090CLIP, PIN HOLD

main47749-50090¥40

9007502727

main90075-02727¥70

9015960431

main90159-60431¥70

9015960603

main90159-60603¥60

9017906349

main90179-06349¥180

9046709226

main90467-09226¥130

91553A0625

main91553-A0625¥60

91674B1028

main91674-B1028¥120

46 parts on this diagram · 4 diagrams in section
