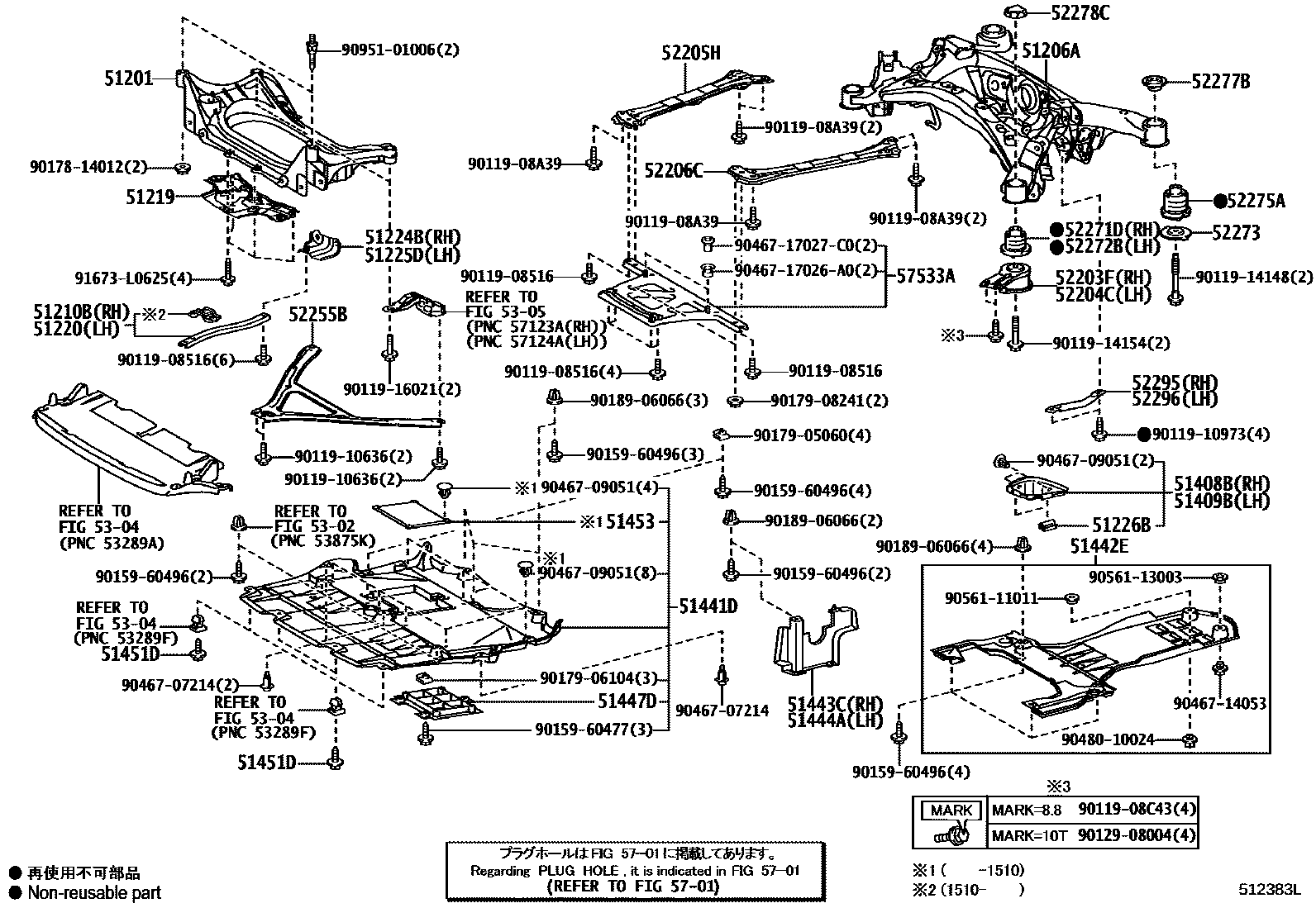

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30140iAWL10,GRL11,GWL10201203-201809

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30130iGRL11201203-201309

sub51206-30131

main51206-30131iGRL11201310-201510

main51206-30140iAWL10,GRL15,GWL10201201-201310

sub51206-30141

main51206-30141iAWL10,GRL15,GWL10201310-201505

sub51206-30142

main51206-30142iAWL10,GRL15,GWL10201506-201809

51210BCROSSMEMBER ASSY, FRAME, NO.1

main51210-30010iGRL15201201-201809

main51210-30020iARL10,AWL10,GWL10201510-201809

main51217-30060iAWL10,GRL11,GWL10201203-201510

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30050iAWL10,GRL11,GWL10201203-201809

sub51219-30051

51220CROSSMEMBER ASSY, FRAME, NO.2

main51210-30020iARL10,AWL10,GWL10201510-201809

main51217-30060iAWL10,GRL11,GWL10201203-201510

main51220-30010iGRL16201201-201809

51224BPLATE, FRONT SUSPENSION MENBER BRACE, RH

main51224-30040iAWL10,GRL11,GWL10201203-201809

51225DPLATE, FRONT SUSPENSION MENBER BRACE, LH

main51225-30030iAWL10,GRL11,GWL10201203-201809

51226BPLATE, FRONT SUSPENSION MEMBER, NO.2

main51226-30020iAWL10,GRL11,GWL10201203-201809

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-30060iAWL10,GRL11,GWL10201203-201809

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-30060iAWL10,GRL11,GWL10201203-201809

51441DCOVER, ENGINE UNDER

main51410-30090iAWL10,GRL11,GWL10201203-201510

main51410-30170iGRL15201201-201809

main51410-30230iARL10,AWL10,GWL10201510-201706

sub51410-30231

main51410-30231iARL10,AWL10,GWL10201707-201809

51442ECOVER, ENGINE UNDER, NO.2

main51442-30152iGWL10201203-201809

main51442-30220iARL10201510-201809

main51442-53050iAWL10201309-201809

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30141iARL10,AWL10,GWL10201203-201809

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30171iAWL10,GRL11,GWL10201203-201809

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-30120iAWL10,GRL11,GWL10201203-201510

main51447-30130iGRL15201201-201809

main51447-30160iARL10,AWL10,GWL10201510-201706

sub51447-30161

main51447-30161iARL10,AWL10,GWL10201707-201809

51451DSCREW, NO.1

main90159-60477iAWL10,GRL1#,GWL10201201-201809

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-30030iAWL10,GRL11,GWL10201203-201510

main51453-30040iGRL15201201-201809

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-30080iARL10,AWL10,GRL16,GWL10201201-201809

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-30060iARL10,AWL10,GRL16,GWL10201201-201809

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-30250iAWL10,GRL1#,GWL10201201-201809

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-30070iARL10,AWL10,GRL16,GWL10201201-201809

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-30040iGRL15201201-201809

main52255-30050iAWL10,GRL11,GWL10201203-201809

sub52255-30051

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30150iAWL10,GRL1#,GWL10201201-201403

sub52271-30151

main52271-30151iAWL10,GRL1#,GWL10201403-201809

52272BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LOWER

main52272-30010iAWL10,GRL1#,GWL10201201-201403

sub52272-30011

main52272-30011iAWL10,GRL1#,GWL10201403-201809

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52274-30010iAWL10,GRL1#,GWL10201201-201809

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30160iAWL10,GRL1#,GWL10201201-201403

sub52275-30161

main52275-30161iAWL10,GRL1#,GWL10201403-201809

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30090iAWL10,GRL1#,GWL10201201-201809

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30090iAWL10,GRL1#,GWL10201201-201403

sub52278-30091

main52278-30091iAWL10,GRL1#,GWL10201403-201809

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30040iAWL10,GRL1#,GWL10201201-201709

sub52295-30041

main52295-30041iARL10,AWL10,GRL16,GWL10201710-201809

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30040iAWL10,GRL1#,GWL10201201-201709

sub52295-30041

main52295-30041iARL10,AWL10,GRL16,GWL10201710-201809

5302

5304

5305

5701

57533ABRACE, FRONT FLOOR, CENTER

main57533-30070iAWL10,GRL1#,GWL10201201-201809

9011908516

main90119-08516

9011908A39

main90119-08A39

9011908C43

main90119-08C43

9011910636

main90119-10636

9011910973

main90119-10973

9011914148

main90119-14148

9011914154

main90119-14154

9011916021

main90119-16021

9012908004

main90129-08004

9015960477

main90159-60477

9015960496

main90159-60496

9017814012

main90178-14012

9017905060

main90179-05060

9017906104

main90179-06104

9017908241

main90179-08241

9018906066

main90189-06066

9046707214

main90467-07214

9046709051

main90467-09051

9046714053

main90467-14053

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9048010024

main90480-10024

9056111011

main90561-11011

9056113003

main90561-13003

9095101006

main90951-01006

91673L0625

main91673-L0625

61 parts on this diagram · 4 diagrams in section
