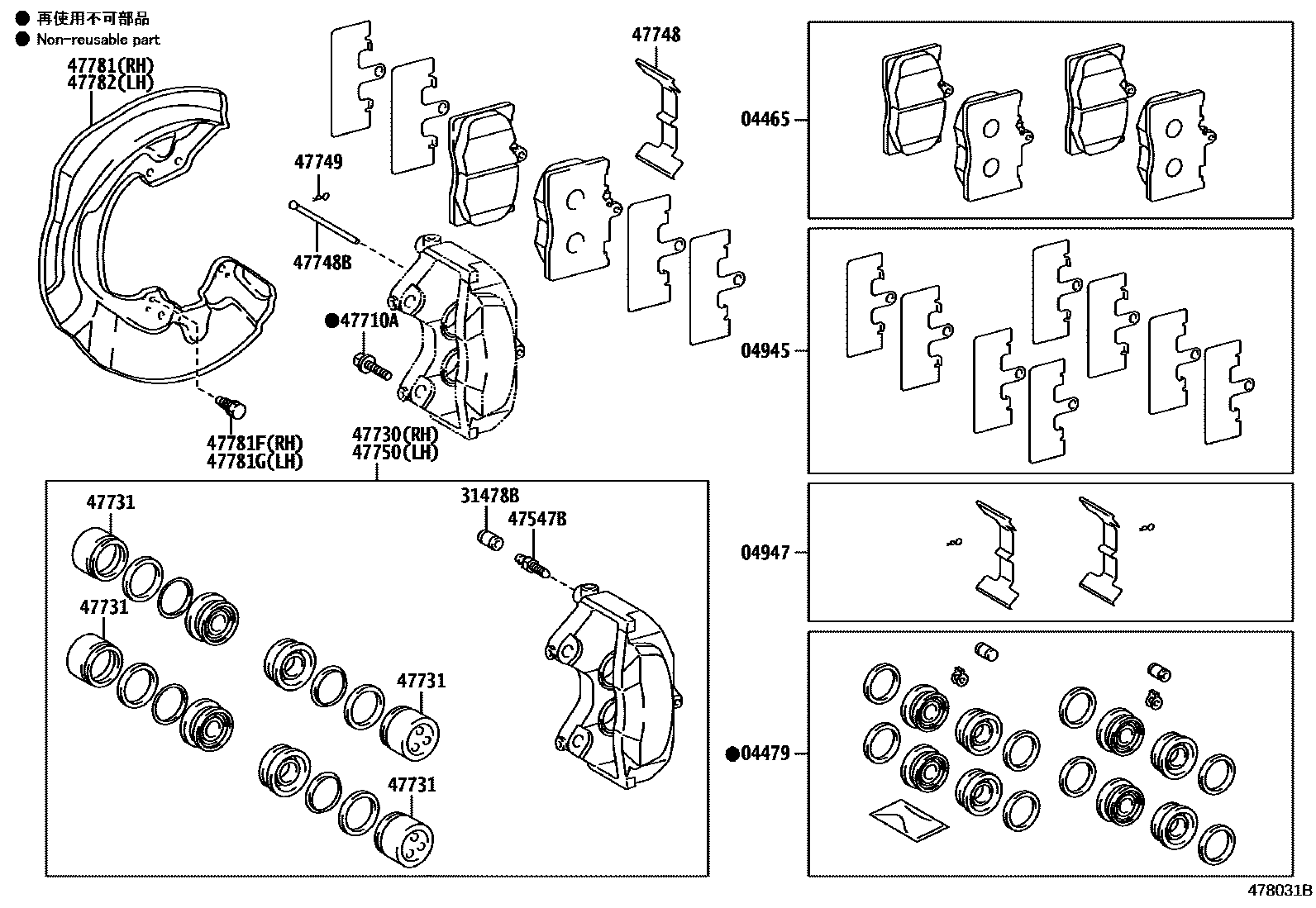

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1F-SPORT OR LUXURY PACKAGE

04465PAD KIT, DISC BRAKE, FRONT

main04465-30410iGRL1#,GWL10201201-201212

MARK TEXTAR T4146

sub04465-30500

main04465-30500iAWL10,GRL1#,GWL10201212-201809

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iAWL10,GRL1#,GWL10201201-201809

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22152iGRL1#,GWL10201201-201212

sub04945-30350

main04945-30350iAWL10,GRL1#,GWL10201212-201809

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iAWL10,GRL1#,GWL10201201-201809

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iAWL10,GRL1#,GWL10201201-201809

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iAWL10,GRL1#,GWL10201201-201809

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iAWL10,GRL1#,GWL10201201-201809

*12-1.25PX45-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iAWL10,GRL1#,GWL10201201-201809

47731PISTON, FRONT DISC BRAKE

main47731-50070iAWL10,GRL1#,GWL10201201-201809

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460iAWL10,GRL1#,GWL10201201-201809

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iAWL10,GRL1#,GWL10201201-201809

47749CLIP, PIN HOLD

main47749-50030iARL10,AWL10,GRL16,GWL10201201-201809

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iAWL10,GRL1#,GWL10201201-201809

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30240iGRL16201201-201809

main47781-30260iAWL10,GRL11,GWL10201203-201809

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227iGRL11,GWL10201203-201310

main90119-06508iAWL10,GRL11,GWL10201310-201809

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227iGRL11,GWL10201203-201310

main90119-06508iAWL10,GRL11,GWL10201310-201809

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30240iGRL15201201-201809

main47782-30260iARL10,AWL10,GWL10201203-201809

17 parts on this diagram · 3 diagrams in section
