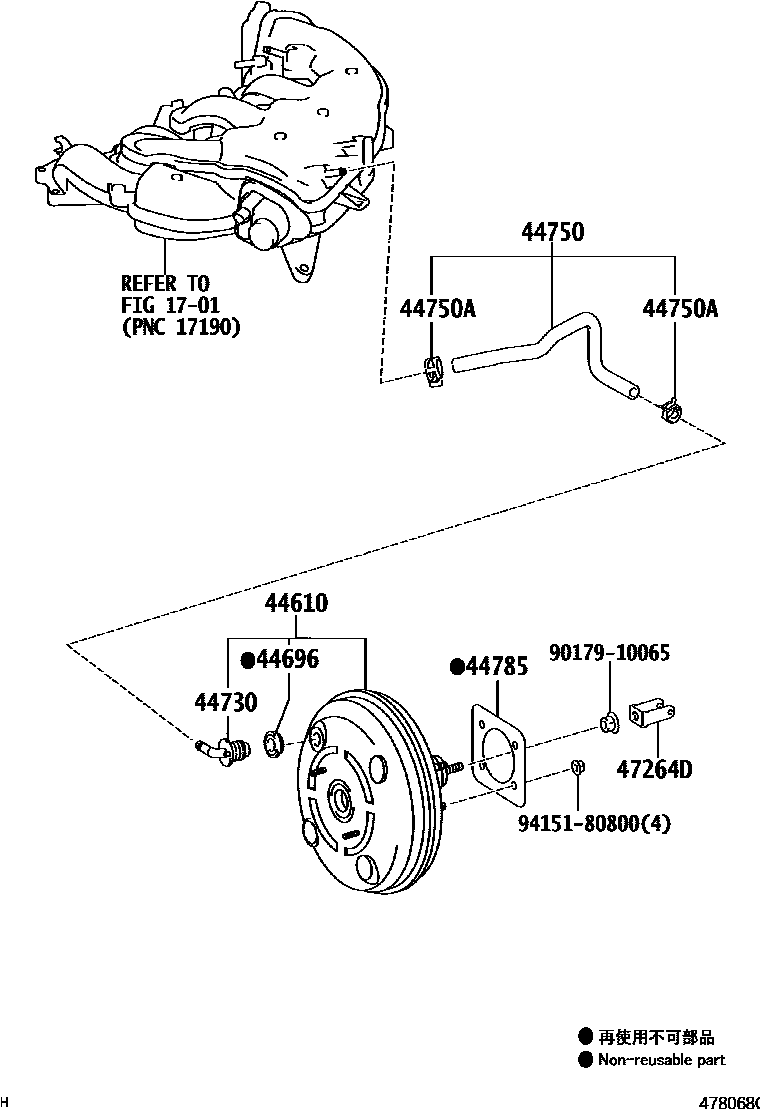

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1701

44610BOOSTER ASSY, BRAKE

main44610-30B60iGRL11..RHD201203-201510

main44610-30B70iGRL1#..LHD201201-201510

main44610-53470iARL10,GRL16201510-201809

44696GROMMET, CHECK VALVE

main90480-24439iGRL1#201201-201809

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iARL10,GRL16201510-201809

main44730-20170iGRL1#..LHD201201-201510

main44730-60070iGRL11..RHD201203-201510

44750HOSE ASSY, VACUUM

main44750-53120iGRL11..LHD201203-201510

main44750-53140iGRL15201201-201510

main44750-53220iARL10201510-201809

44750ACLIP(FOR VACUUM HOSE ASSY)

main90467-16014iGRL16201203-201809

main90467-16014iGRL15201201-201510

NO.2

main96133-41500iGRL15201201-201510

NO.1

44785GASKET, BRAKE BOOSTER

main44785-47010iGRL1#201201-201809

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGRL1#201201-201809

9017910065

main90179-10065

9415180800

main94151-80800

10 parts on this diagram · 5 diagrams in section
