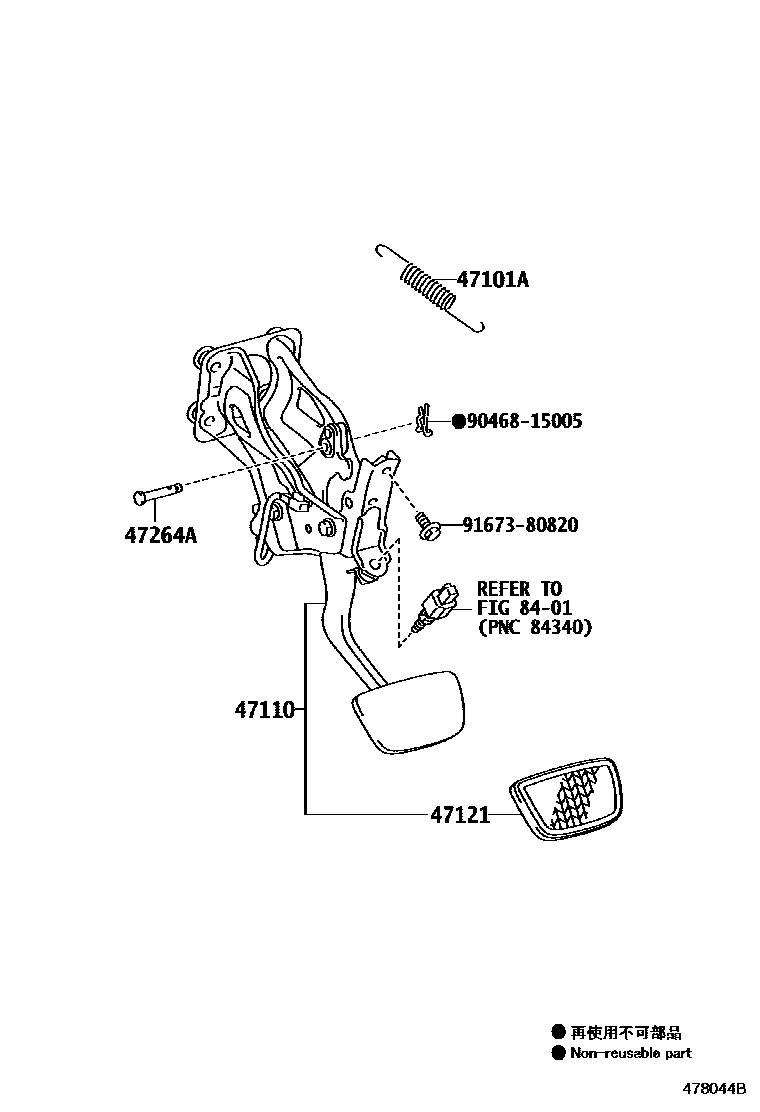

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iAWL10,GWL10201203-201809

main90507-13009iGRL1#201201-201809

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24120iAWL10,GWL10..RHD201510-201809

sub47110-24330

main47110-24140iARL10201510-201809

sub47110-24250

main47110-24160iGRL16201510-201809

sub47110-24270

main47110-30500iAWL10,GWL10..LHD201510-201809

sub47110-24310

main47110-30520iGRL11..LHD201203-201510

sub47110-24140

main47110-30540iGRL15201201-201510

sub47110-24160

main47110-30560iGRL11..RHD201203-201510

sub47110-24100

main47110-30580iAWL10,GWL10..LHD201203-201510

sub47110-30500

main47110-30600iAWL10,GWL10..RHD201203-201510

sub47110-24120

47121PAD, BRAKE PEDAL

main47121-30080iARL10,AWL10,GRL16,GWL10201201-201809

47264APIN(FOR PUSH ROD)

main90249-06180iGRL1#201201-201809

main90249-10199iAWL10,GWL10201203-201809

8401

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 4 diagrams in section
