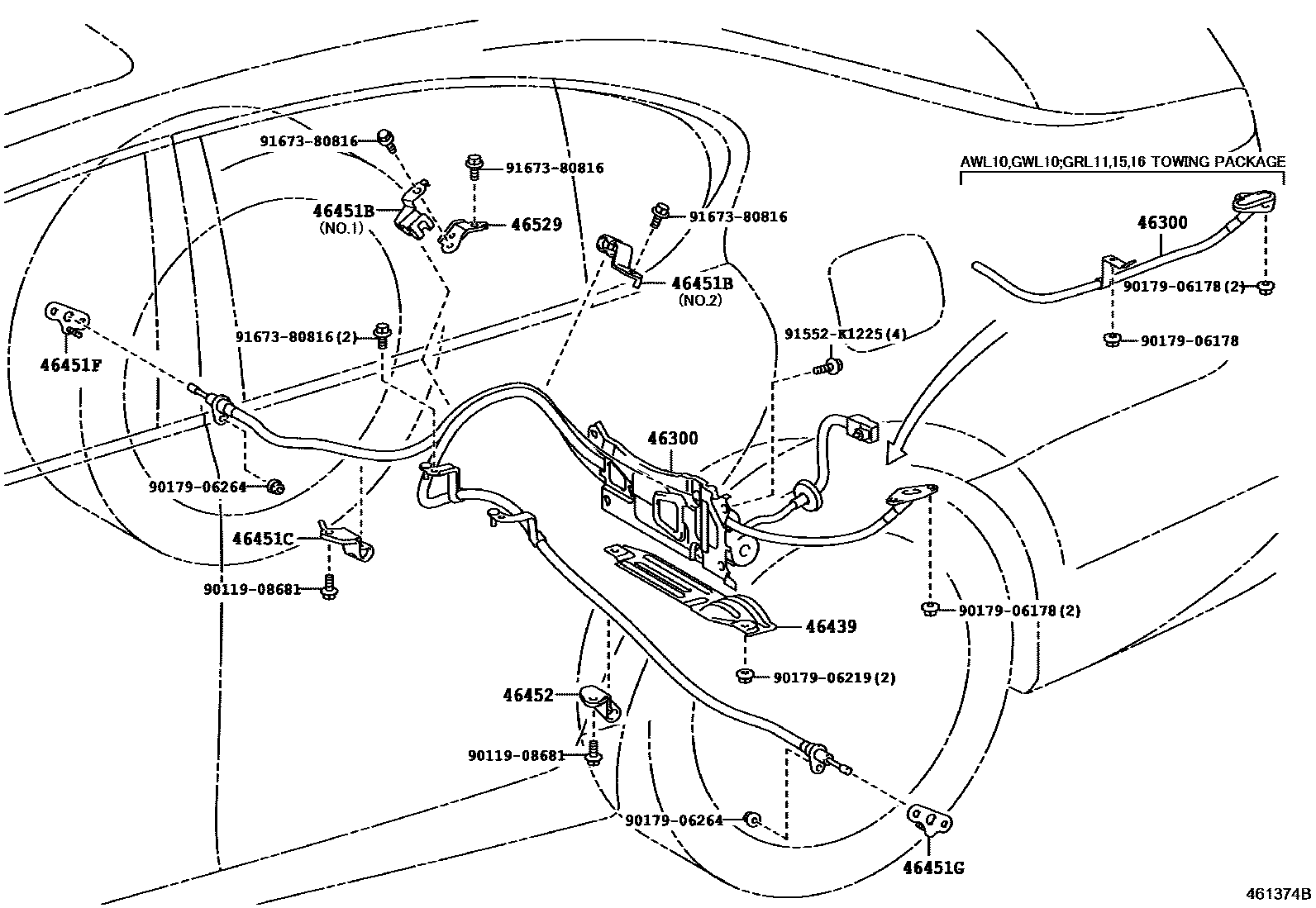

PARKING BRAKE & CABLE

0001 1CABLE,W/O(LDH) 0003 1CABLE,W(LDH) 0004 1CABLE 0005 1BRAKE SHOE & LEVER

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-30010iGWL10..STD201510-201809

F SPORT

main46300-30010iAWL10201409-201510

main46300-30020iAWL10201203-201409

main46300-30020iGWL10201203-201510

TOWING PACKAGE-1600KG

main46300-30020iGWL10201510-201809

TOWING PACKAGE-1000KG

main46300-30030iGRL16201201-201809

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-30020iGRL16,GWL10201201-201809

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-30240iGWL10..STD201409-201809

NO.2

main46451-30240iARL10,AWL10201510-201809

F SPORT,NO.2

main46451-30250iAWL10,GRL1#,GWL10201201-201809

NO.1

main46451-30260iGRL1#,GWL10201201-201809

NO.2

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30220iAWL10,GRL1#,GWL10201201-201809

46451FBRACKET, CABLE SUPPORT

main46451-30270iAWL10,GRL1#,GWL10201201-201809

46451GBRACKET, CABLE SUPPORT

main46451-30280iAWL10,GRL1#,GWL10201201-201809

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30230iAWL10,GRL1#,GWL10201201-201809

46529BRACKET, CABLE CLAMP

main46529-30010iAWL10,GRL1#,GWL10201201-201809

9011908681

main90119-08681

9017906178

main90179-06178

9017906219

main90179-06219

9017906264

main90179-06264

91552K1225

main91552-K1225

9167380816

main91673-80816

14 parts on this diagram · 4 diagrams in section
