FRONT AXLE HUB

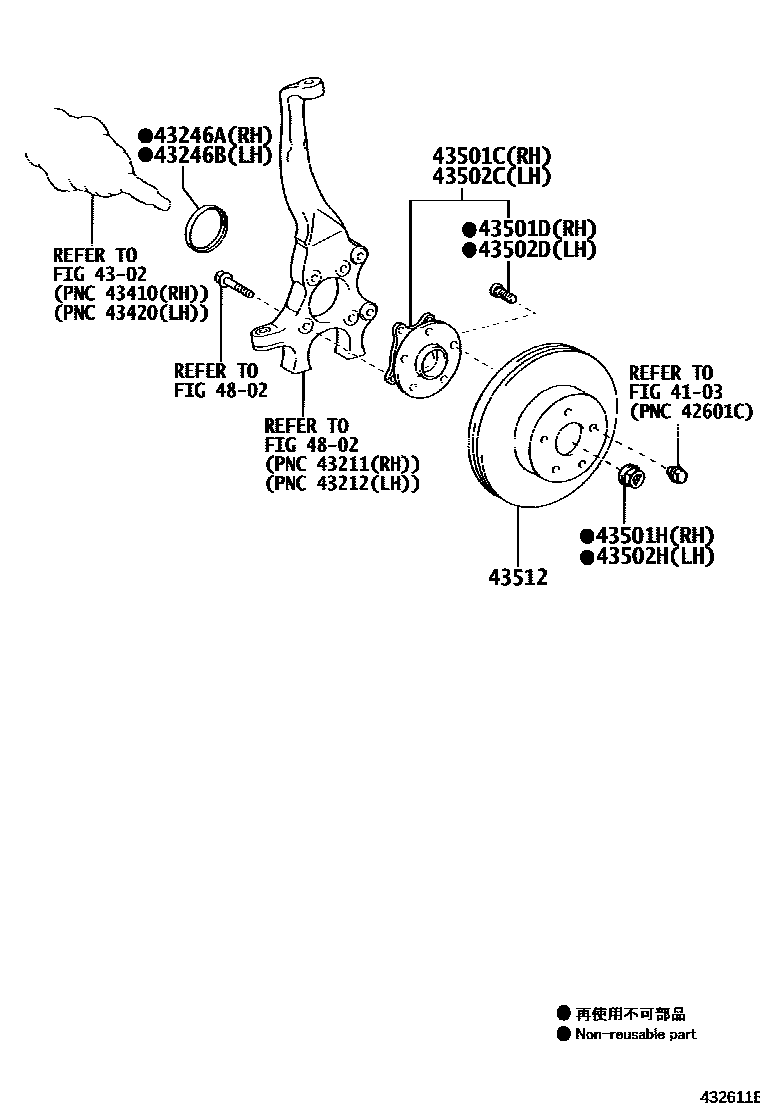

Parts diagram
4103
4302
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-30010i201201-201809
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-30010i201201-201809
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43550-30030i201201-201507
sub43550-30031
main43550-30031i201508-201809
main43550-30050i201203-201504
sub43550-30051
main43550-30051i201505-201809
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049i201505-201809
main90942-02070i201201-201507
sub90942-02049
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90177-22001i201201-201809
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43550-30050i201203-201504
sub43550-30051
main43550-30051i201505-201809
main43560-30030i201201-201507
sub43560-30031
main43560-30031i201508-201809
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049i201505-201809
main90942-02070i201201-201507
sub90942-02049
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90177-22001i201201-201809
43512DISC, FRONT
main43512-22260i201203-201510
CANARY ISLANDS SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
BALTIC SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
RUSSIA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
UKRAINE SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
SERBIA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
MONTENEGRO SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201309
CROATIA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
ISRAEL SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
KAZAKHSTAN SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
BELARUS SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
BOSNIA HERCEGOVINA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
AZERBAYCAN SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
ARMENIA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
GEORGIA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
TURKMENISTAN SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
ALBANIA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
KYRGYZSTAN SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
MACEDONIA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
MOLDOVA SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201510
REUNION SPEC&VERSION L,RH
sub43512-22261
main43512-22260i201203-201809
RH
sub43512-22261
main43512-30330i201201-201809
RH
main43512-30370i201203-201309
F SPORT,RH
sub43512-30371
main43512-30370i201203-201309
VERSION L,RH
sub43512-30371
main43512-30370i201309-201311
FRONT WHEEL BRAKE-18INCHES DISC,RH
sub43512-30371
main43512-30371i201410-201510
RUSSIA SPEC&THE CRAFTED LINE,RH
sub43512-53050
main43512-30371i201410-201510
VERSION L,RH
sub43512-53050
main43512-30371i201410-201510
F SPORT,RH
sub43512-53050
main43512-30371i201312-201809
FRONT WHEEL BRAKE-18INCHES DISC,RH
sub43512-53050
main43512-30371i201510-201809
FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED),RH
sub43512-53050
main43516-22010i201203-201510
BALTIC SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
REUNION SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
CANARY ISLANDS SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
RUSSIA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
UKRAINE SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
SERBIA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
MONTENEGRO SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201309
CROATIA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
ISRAEL SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
KAZAKHSTAN SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
BELARUS SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
BOSNIA HERCEGOVINA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
AZERBAYCAN SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
ARMENIA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
GEORGIA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
TURKMENISTAN SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
ALBANIA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
KYRGYZSTAN SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
MACEDONIA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201510
MOLDOVA SPEC&VERSION L,LH
sub43516-22011
main43516-22010i201203-201809
LH
sub43516-22011
main43516-30020i201201-201809
LH
main43516-30060i201203-201309
F SPORT,LH
sub43516-30061
main43516-30060i201203-201309
VERSION L,LH
sub43516-30061
main43516-30060i201309-201311
FRONT WHEEL BRAKE-18INCHES DISC,LH
sub43516-30061
main43516-30061i201410-201510
VERSION L,LH
sub43516-53030
main43516-30061i201410-201510
RUSSIA SPEC&THE CRAFTED LINE,LH
sub43516-53030
main43516-30061i201410-201510
F SPORT,LH
sub43516-53030
main43516-30061i201312-201809
FRONT WHEEL BRAKE-18INCHES DISC,LH
sub43516-53030
main43516-30061i201510-201809
FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED),LH
sub43516-53030
4802

12 parts on this diagram · 2 diagrams in section
