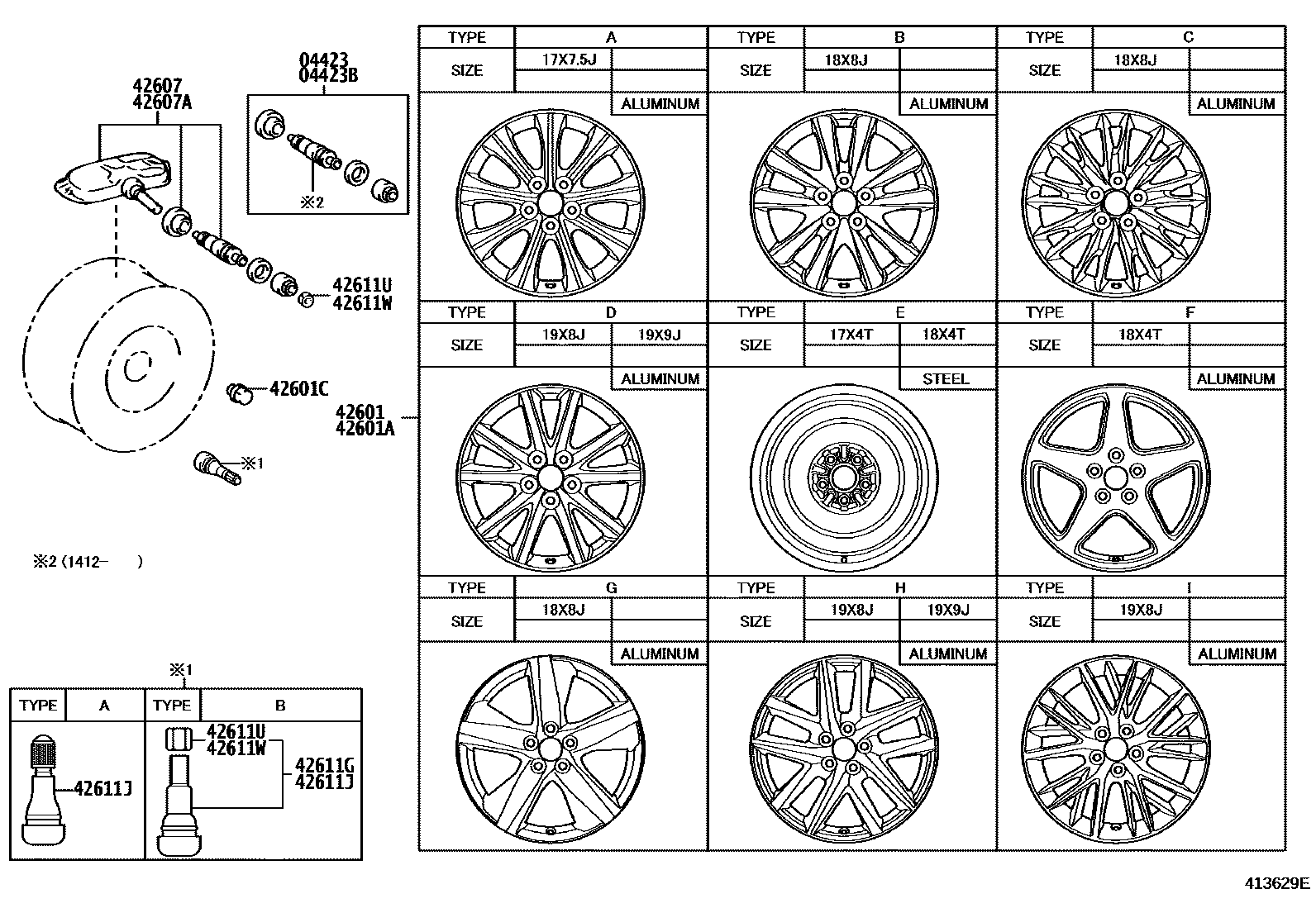

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
VERSION L&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J&SPARE TIRE-GROUND TIRE
RUSSIA SPEC&THE CRAFTED LINE&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE THE CRAFTED LINE&SPARE TIRE-GROUND TIRE
42601WHEEL, DISC
17X7.5J, #,TYPE A:REFER ILLUST.
17X7.5J, #,TYPE A:REFER ILLUST.
19X8J, #,RUSSIA SPEC&THE CRAFTED LINE&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE THECRAFTED LINE&SPARE TIRE-TEMPORARY(T145/70D18,ALUMINUM),TYPE D:REFER ILLUST.
sub42611-30D32
18X8J, #,UKRAINE SPEC&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J,TYPE G:REFER ILLUST.
19X8J, #,RUSSIA SPEC&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J&SPARE TIRE-TEMPORARY(T145/70D18,STEEL),TYPE I:REFER ILLUST.
19X8J, #,RUSSIA SPEC&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J F SPORT&SPARE TIRE-TEMPORARY(T145/70D18,STEEL),TYPE H:REFER ILLUST.
19X9J, #,TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P H:SEE ILLUST
sub42611-30E31
18X8J, #,SERBIA SPEC&VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT,TYPE C:REFER ILLUST.
sub4261A-30151
18X8J, #,TURKMENISTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
18X8J, #,TURKMENISTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
18X8J, #,TURKMENISTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
19X8J, #,F SPORT&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE&SPARE TIRE-GROUND TIRE,FR,T/P D:SEE ILLUST
19X8J, #,MALTA SPEC&F SPORT&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE&SPARE TIRE-TEMPORARY(T155/70D17),FR,T/P D:SEE ILLUST
sub4261A-30192
19X9J, #,IRELAND SPEC&F SPORT&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE&SPARE TIRE-TEMPORARY(T155/70D17),RR,T/P D:SEE ILLUST
19X9J, #,IRELAND SPEC&F SPORT&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE&SPARE TIRE-TEMPORARY(T155/70D17),RR,T/P D:SEE ILLUST
sub4261A-30212
18X8J, #,BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J&SPARETIRE-GROUND TIRE,TYPE B:REFER ILLUST.
18X8J, #,BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J&SPARETIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-30252
18X8J, #,SERBIA SPEC&VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT,TYPE C:REFER ILLUST.
18X8J, #,KAZAKHSTAN SPEC&VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARE TIRE-TEMPORARY(T145/70D18,STEEL),TYPE C:REFER ILLUST.
18X8J, #,KAZAKHSTAN SPEC&VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARE TIRE-TEMPORARY(T145/70D18,STEEL),TYPE C:REFER ILLUST.
19X8J, #,SERBIA SPEC&VERSION L&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J&SPARE TIRE-TEMPORARY(T145/70D18,STEEL),TYPE D:REFER ILLUST.
19X8J, #,VERSION L&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
19X8J, #,RUSSIA SPEC&THE CRAFTED LINE&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE THECRAFTED LINE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-30D32
18X8J, #,TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
19X8J, #,RUSSIA SPEC&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J&SPARE TIRE-GROUNDTIRE,TYPE I:REFER ILLUST.
19X8J, #,RUSSIA SPEC&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE H:REFER ILLUST.
17X7.5J, #,ARMENIA SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
17X7.5J, #,MONTENEGRO SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
17X7.5J, #,MONTENEGRO SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-30E73
18X4T,FRANCE SPEC&SPARE TIRE-TEMPORARY(T145/70D18,STEEL),TYPE E:REFER ILLUST.
18X4T,FRANCE SPEC&SPARE TIRE-TEMPORARY(T145/70D18,STEEL),TYPE E:REFER ILLUST.
sub42611-30F32
18X4T,REUNION SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)&SPARE TIRE-TEMPORARY(T145/70D18,ALUMI),TYPE F:REFER ILLUST.
sub42611-30F41
17X4T,SPARE TIRE-TEMPORARY(T155/70D17),TYPE E:REFER ILLUST.
sub42611-53321
18X8J, #,ARMENIA SPEC&VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-30151
18X8J, #,TURKMENISTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
18X8J, #,TURKMENISTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
18X8J, #,TURKMENISTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
19X8J, #,MACEDONIA SPEC&F SPORT&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
19X8J, #,RUSSIA SPEC&F SPORT&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-30192
18X8J, #,BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J&SPARETIRE-GROUND TIRE
18X8J, #,MOLDOVA SPEC&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J&SPARE TIRE-GROUNDTIRE,TYPE B:REFER ILLUST.
sub4261A-30252
18X8J, #,MACEDONIA SPEC&VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROMPAINT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
18X8J, #,MACEDONIA SPEC&VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROMPAINT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
18X8J, #,GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARETIRE-GROUND TIRE,TYPE C:REFER ILLUST.
19X8J, #,VERSION L&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
19X8J, #,VERSION L&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARE TIRE-GROUNDTIRE
VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARE TIRE-GROUNDTIRE
42611GVALVE (FOR TUBELESS TIRE)
TURKMENISTAN SPEC&TIRE & DISC WHEEL-225/50R17 SUMMER TIRE 7.5J&SPARE TIRE-GROUND TIRE
42611JVALVE (FOR TUBELESS TIRE SPARE)
BALTIC SPEC&FRONT WHEEL BRAKE-18INCHES DISC&SPARE TIRE-TEMPORARY(T145/70D18,ALUMI),TYPE A:REFER ILLUST.
GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE
BELARUS SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT
42611WCAP, TIRE VALVE (FOR SPARE)
KYRGYZSTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J F SPORT&SPARE TIRE-GROUND TIRE
VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARE TIRE-GROUNDTIRE
VERSION L&TIRE & DISC WHEEL-235/45R18 SUMMER TIRE 8J CHROM PAINT&SPARE TIRE-GROUNDTIRE
11 parts on this diagram · 3 diagrams in section
