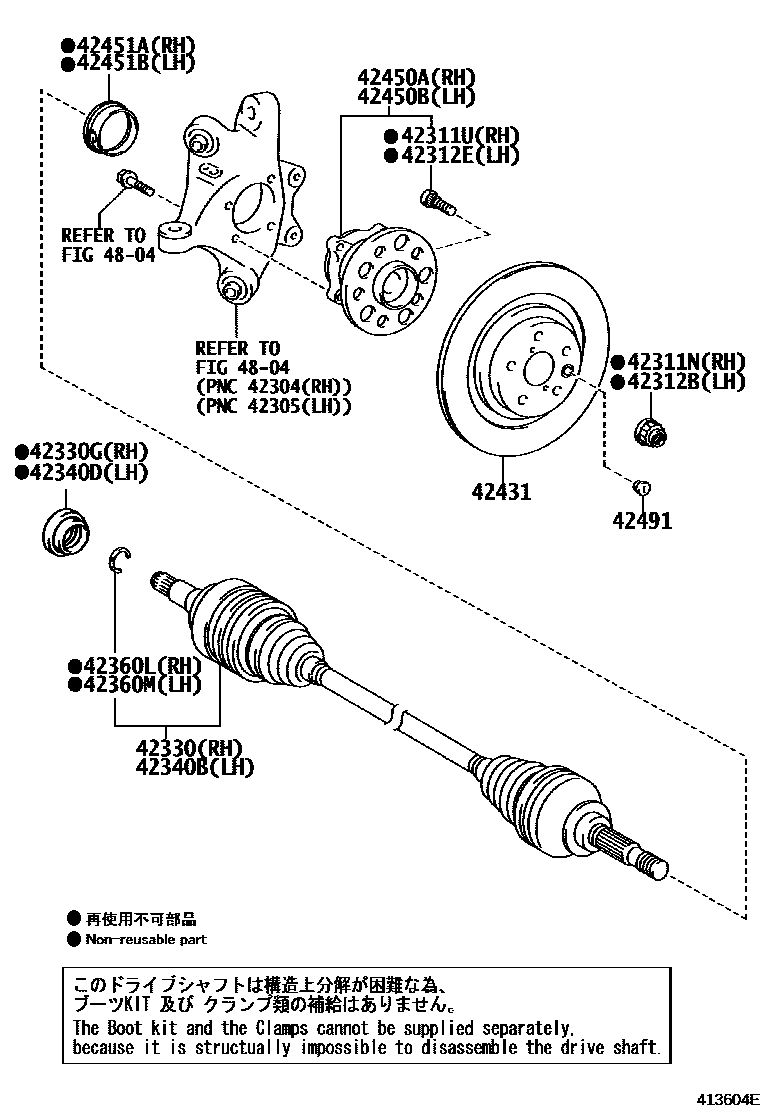

REAR AXLE SHAFT & HUB
42311NNUT(FOR REAR AXLE SHAFT RH)
42312BNUT(FOR REAR AXLE SHAFT LH)
42330SHAFT ASSY, REAR DRIVE, RH
42330GOIL SEAL, REAR DRIVE SHAFT, RH
42340BSHAFT ASSY, REAR DRIVE, LH
42340DOIL SEAL, REAR DRIVE SHAFT, LH
42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42431DISC, REAR
KAZAKHSTAN SPEC
KAZAKHSTAN SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
GEORGIA SPEC
GEORGIA SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
REUNION SPEC
REUNION SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
CANARY ISLANDS SPEC
CANARY ISLANDS SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
RUSSIA SPEC
RUSSIA SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
UKRAINE SPEC
UKRAINE SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
ISRAEL,TURKEY SPEC
ISRAEL,TURKEY SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGEPAINTED)
SWITZERLAND SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
SWITZERLAND SPEC&FRONT WHEEL BRAKE-18INCHES DISC
CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&FRONT WHEEL BRAKE-18INCHES DISC
BALTIC SPEC&F SPORT&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
BALTIC SPEC&FRONT WHEEL BRAKE-18INCHES DISC
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
4804
17 parts on this diagram · 1 diagram in section
