TRANSAXLE ASSY(HEV OR BEV OR FCEV)

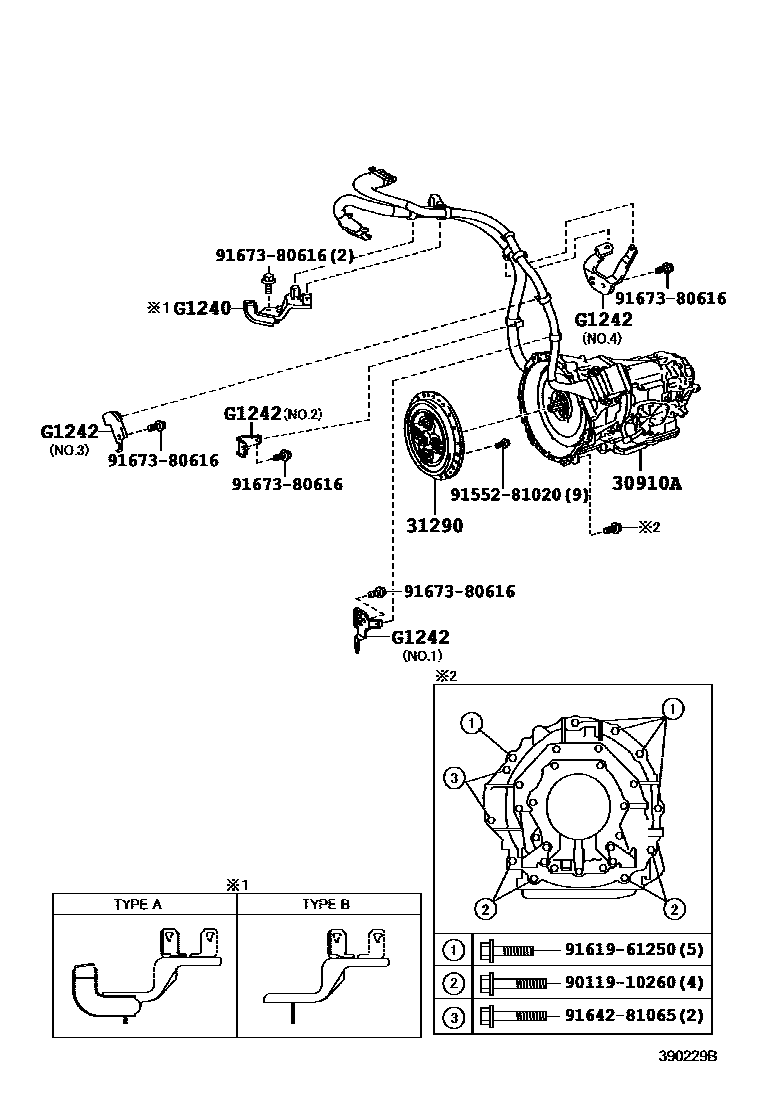

Parts diagram
30910ATRANSMISSION ASSY, HYBRID VEHICLE
main30910-30080i¥720,000201203-201304
PNC G2148 REFER
sub30910-30100¥599,000
subG1240-30041¥1,110
main30910-30090i201203-201304
PNC G2148 REFER
sub30910-30110
subG1240-30051
main30910-30100i¥599,000201304-201809
PNC G2148 REFER
main30910-30110i201304-201809
PNC G2148 REFER
main30920-30030i¥368,000201309-201809
31290COVER ASSY, TRANSMISSION INPUT DAMPER
main31290-30010i¥33,100201203-201809
G1240BRACKET ASSY, INVERTER MOTOR CABLE
mainG124030040i201203-201304
TYPE A:REFER ILLUST.
mainG124030041i201304-201809
TYPE B:REFER ILLUST.
mainG124030050i201203-201304
TYPE A:REFER ILLUST.
mainG124030051i201304-201809
TYPE B:REFER ILLUST.
mainG124030051i201309-201510
mainG124030080i201309-201809
G1242BRACKET, ENGINE MOTOR CABLE CLAMP
mainG124230060i201203-201809
NO.1:REFER ILLUST.
mainG124230070i201203-201809
NO.2:REFER ILLUST.
mainG124230080i201203-201809
NO.3:REFER ILLUST.
mainG124230090i201203-201809
NO.4:REFER ILLUST.
mainG124230100i201203-201809
NO.3:REFER ILLUST.
mainG124230110i201203-201809
NO.4:REFER ILLUST.
mainG124230160i201309-201809
mainG124253010i201309-201809
9011910260
main90119-10260¥210
9155281020
main91552-81020¥100
9161961250
main91619-61250¥140
9164281065
main91642-81065¥180
9167380616
main91673-80616¥60

9 parts on this diagram · 7 diagrams in section
