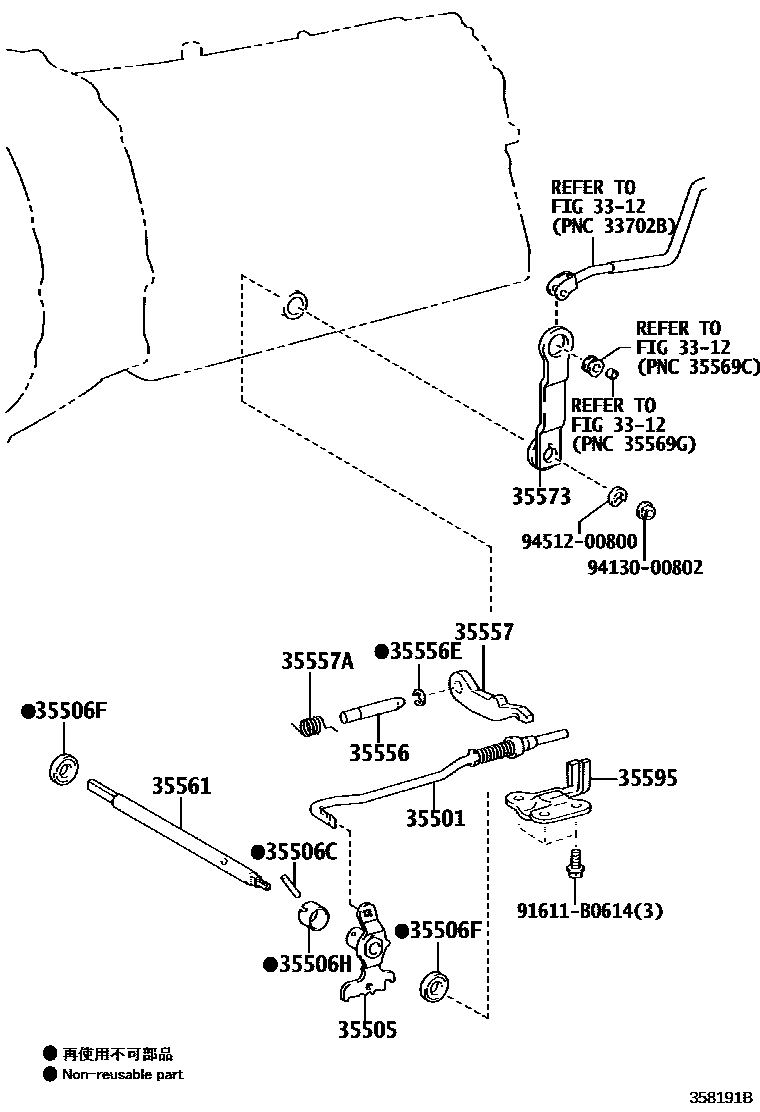

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A760H 0002 1A960E 0003 1AA81E

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-30040iGRL11201203-201510

main35501-30050iGRL15201201-201809

main35501-50020iARL10201510-201809

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30040iARL10201510-201809

main35505-53030iGRL15201201-201809

main35505-53040iGRL11201203-201510

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRL1#201201-201809

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRL1#201201-201809

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGRL1#201201-201809

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGRL1#201201-201809

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRL1#201201-201809

35557PAWL, PARKING LOCK

main35557-30050iGRL16201201-201809

main35590-50010iGRL11201203-201409

sub35590-50030

main35590-50020iARL10201510-201809

main35590-50030iGRL11201409-201510

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03130iGRL15201201-201809

main90949-03137iGRL11201203-201510

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iGRL11201203-201510

main35561-50030iARL10201510-201809

main35561-60030iGRL15201201-201809

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-30060iGRL15201201-201809

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGRL1#201201-201809

main35595-50020iARL10201510-201809

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 3 diagrams in section
