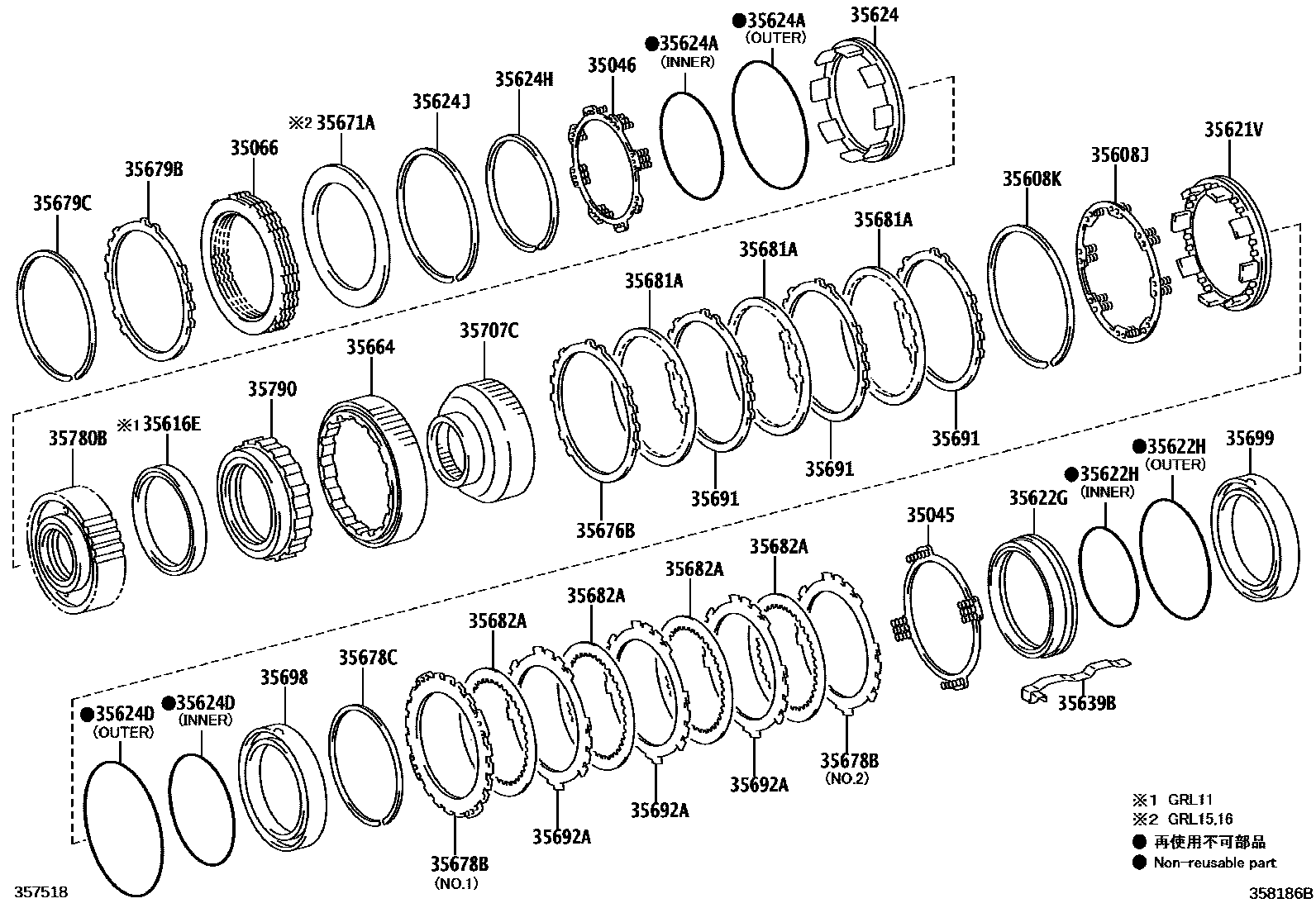

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35066DISC SET, 2ND BRAKE
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35616EWASHER,CLUTCH DRUM THRUST
35621VPISTON, BRAKE, NO.1
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
NO.2
OUTER
INNER
OUTER
NO.3
INNER
NO.1
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
OUTER
INNER
35624DRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
INNER
OUTER
INNER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
NO.1
NO.2
35664CYLINDER, 2ND BRAKE
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=4.5,MARK 0
T=4.6,MARK 1
T=4.7,MARK 2
T=4.8,MARK 3
T=4.9,MARK 4
T=5.0,MARK 5
T=5.1,MARK 6
T=5.2,MARK 7
T=5.3,MARK 8
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=4.6,NO.1
T=2.0,NO.2
T=2.1,NO.2
T=2.2,NO.2
T=2.3,NO.2
T=2.4,NO.2
T=2.5,NO.2
T=2.6,NO.2
T=2.7,NO.2
T=2.0,MARK 0
T=2.1,MARK 1
T=2.2,MARK 2
T=2.3,MARK 3
T=2.4,MARK 4
T=2.5,MARK 5
T=2.6,MARK 6
T=2.7,MARK 7
T=2.8,MARK 8
T=4.6,NO.1
T=2.0 MARK 0,NO.2
T=2.1 MARK 1,NO.2
T=2.2 MARK 2,NO.2
T=2.3 MARK 3,NO.2
T=2.4 MARK 4,NO.2
T=2.5 MARK 5,NO.2
T=2.6 MARK 6,NO.2
T=2.7 MARK 7,NO.2
35678CRING, SNAP (FOR BRAKE NO.2)
35679BFLANGE, BRAKE, NO.3
35679CRING, SNAP (FOR BRAKE NO.3)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
35780BCLUTCH ASSY, 1 WAY N0.2
35790CLUTCH ASSY, 1 WAY
32 parts on this diagram · 2 diagrams in section
